LCMAX70-10-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> LCMAX70-10-L

LCMAX70-10-L: DescriptionTerminals Copp Comp Metric Lug 1 Hole 7; CategoryThe connector; File Size234KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

LCMAX70-10-L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCMAX70-10-L	-	-	View	Buy Now

LCMAX70-10-L Overview

Terminals Copp Comp Metric Lug 1 Hole 7

LCMAX70-10-L Parametric

Parameter Name	Attribute value
Product Category	Terminals
Manufacturer	Panduit
RoHS	Details
Product	Lug Terminals
Type	Compression
Factory Pack Quantity	1

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

LCMAX35-10

NOTES:

1. Material: High conductivity seamless copper tube.

2. Plating: Parts are annealed and tin plated.

m (ref)

Beveled wire

entry

3. WireType: Class 5 and 6 Flexible Stranded Copper Conductor

per DIN VDE 0295, IEC 60228, and HD 383.

4. UL Listed & CSA Certified Wire Connectors for applications up to 35kv,

when crimped per instruction sheet included with Panduit packaging.

Consult cable manufacturer for voltage stress relief instructions

with applications greater than 2000 volts.

5. UL & CSA Temperature Rating: 90°C

Wire inspection

window

LISTED

Wire Connector

CERTIFIED

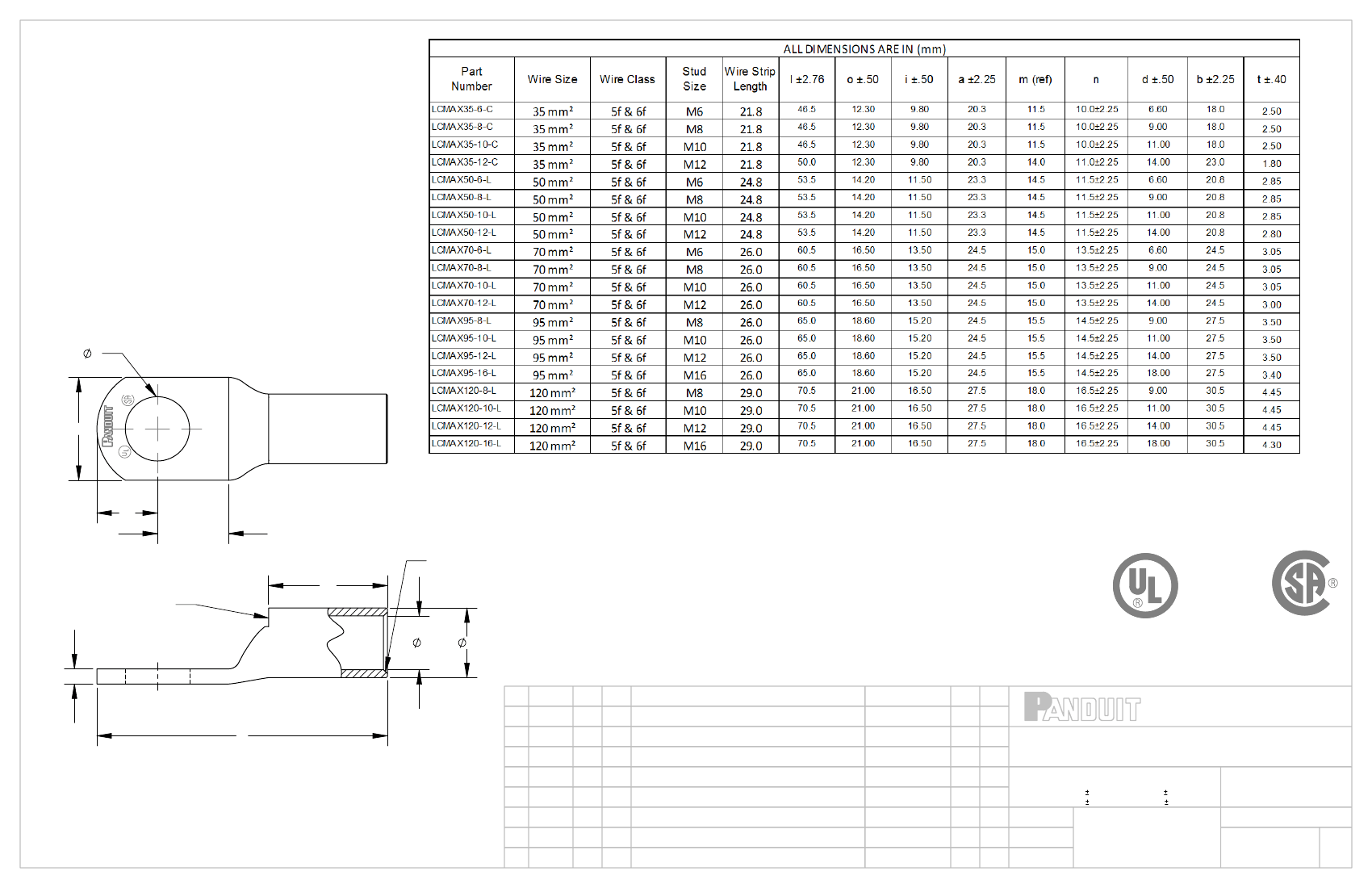

METRIC FLEX LUGS - LCMAX SERIES 35-120mm

CUSTOMER DRAWING

UNLESS OTHERWISE SPECIFIED

DIMENSIONAL TOLERANCES ARE:

(.X)

(.XXX)

(.XX)

ANGLES

CORP.

TINLEY PARK, ILLINOIS

UNLESS OTHERWISE SPECIFIED,

ALL DIMENSIONS ARE GIVEN IN

INCHES, THIRD ANGLE PROJECTION

DRAWN BY

TLCO

5/11

MAT'L:

SCALE

NONE

DWG

SIZE

REV

11/12

TLCO TLCO

DATE

CHK

DRAWING RELEASED

DESCRIPTION

10N014BG-NC

RGB RGB

ECN

-R

SUP

DATE

CHK'D

DRAWING NO / CAD FILE

TLCO

10N014BG-NC

LCMAX70-10-L Related Products

	LCMAX70-10-L	LCMAX50-10-L	LCMAX70-12-L
Description	Terminals Copp Comp Metric Lug 1 Hole 7	Terminals Copp Comp Metric Lug 1 Hole 5	Terminals Copp Comp Metric Lug 1 Hole 7
Product Category	Terminals	Terminals	Terminals
Manufacturer	Panduit	Panduit	Panduit
RoHS	Details	Details	Details
Product	Lug Terminals	Lug Terminals	Lug Terminals
Type	Compression	Compression	Compression
Factory Pack Quantity	1	1	1
