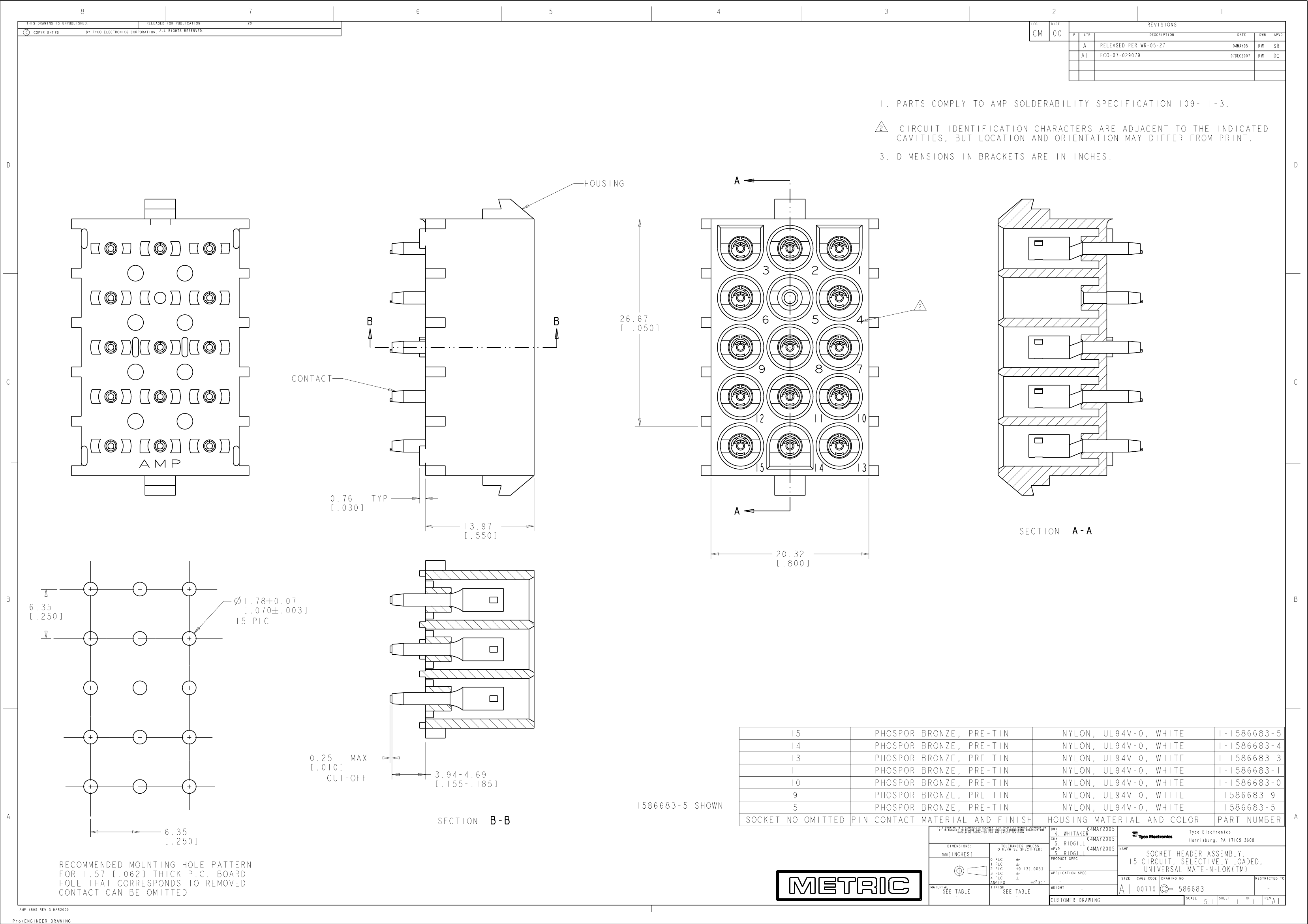

15P UMNL HDR ASSY PC 94VO SL
| Parameter Name | Attribute value |
| Connector type | with hood |
| Housing type | plug |
| Connector System | wire to board |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Terminal type | socket |
| Number of Positions | 15 |
| PCB mounting direction | vertical |
| Number of power supply locations | 15 |
| Number of signal positions | 0 |
| Rows | 3 |
| Line spacing | .25 mm [ 6.35 in ] |
| Backwall/Post Interruptions | Without |
| Operating voltage (VAC) | 600 |
| Terminal base material | Phosphor bronze |
| Contact Current Rating (Max) (A) | 12 |
| Terminal retention | Without |
| Terminal termination area plating material | Pre-tin plating |
| Terminal contact plating material | Pre-tin plating |
| Plating thickness of terminal contact parts | 3.81 – 5.08 µm [ 150 – 200 µin ] |
| Terminal layout | matrix |
| PCB Termination Methods | Through Hole - Solder |
| Termination post and tail length | 4.56 mm [ .179 in ] |
| PCB installation and fixation | Without |
| Panel mount features | Without |
| PCB mounting alignment | Without |
| Connector mounting type | board mounting |
| joint alignment | with |
| Joint alignment type | polarization |
| stress relief | Without |
| joint fixation | with |
| Joint fixation type | latch |
| Centerline (Pitch) | 6.35 mm [ .25 in ] |
| UL fire rating | UL 94V-0 |
| Shell color | White |
| Shell material | nylon |
| length | 33.05 mm [ 1.3 in ] |
| high | 13.97 mm [ .55 in ] |
| width | 20.32 mm [ .799 in ] |
| PCB thickness (recommended) | .061 mm [ 1.57 in ] |
| Working group temperature range | -40 – 105 °C [ -40 – 221 °F ] |
| Circuit Application | Power |
| Glow Wire Ratings | Standard parts - non-glow wire |
| Encapsulation method | bag |
| Package quantity | 50 |
| Applicable to | Female housing |
