“A” Series Connector
The Anderson™ DIN style “A” Series uses
the form factor which has been specially
configured for North American fast battery
charging systems.
Unlike other DIN 43589-1 connectors, our
“A” Series offers contact and crimp tooling
selections developed for both American Wire
Gauge and Metric cable. We also offer a
broader range of auxiliary wire contacts for
communication control applications.
The connector design incorporates an
advanced, cost effective contact carrier for
ease of assembly and fewer components.
All materials are selected to ensure years
of reliable service under adverse battery
environments.

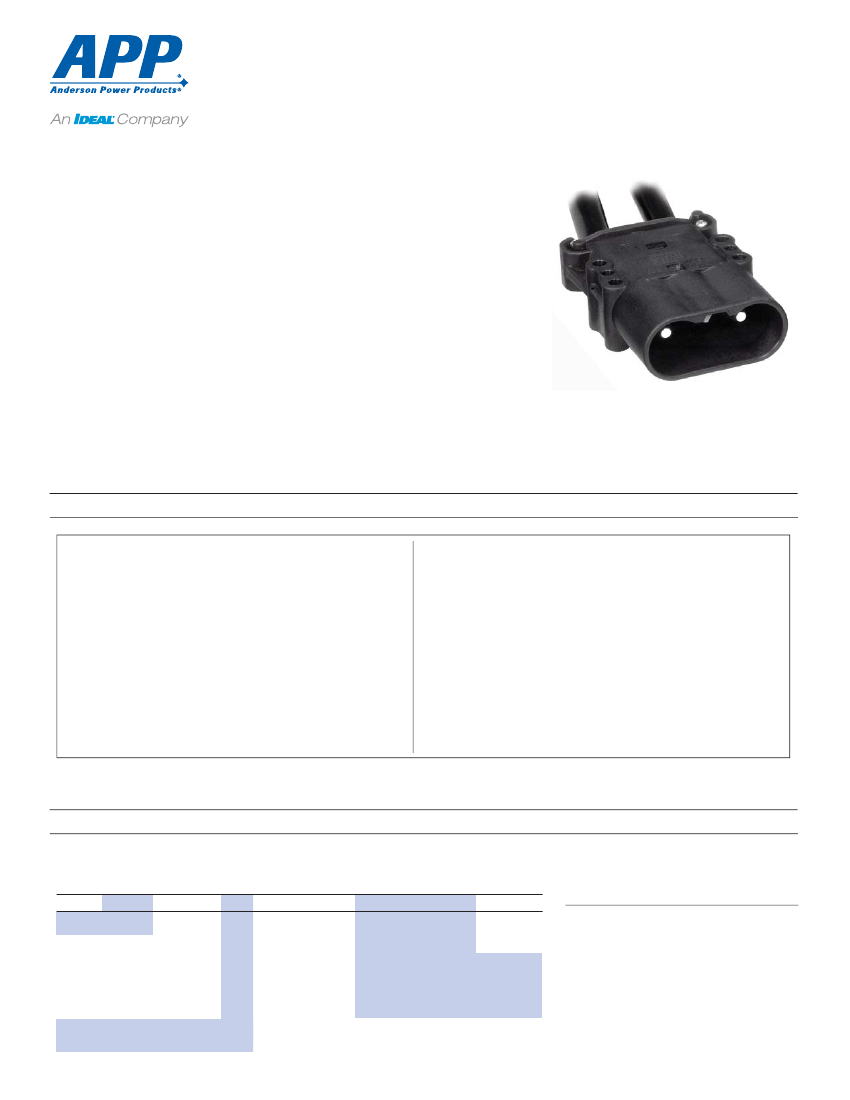

A32 Male DIN Style
Features
• Impact resistant plastic housing
PA6 (Nylon) housings provide superior impact
resistance to stand up to rough usage
Can be used for battery monitoring and charger
communications. Last mate - first break, auxiliary
contact sizes available from 10AWG to 18AWG.
• Up to four auxiliary contacts
• Low mating forces
Connectors can be mated and unmated without
the necessity of added hardware
• Hexagonal voltage key for
24V, 36V, 48V, 72V, 80V, or 96V
Key prevents mating of different operating voltages
Note: Will not mate with “Euro Battery Connector” Series Housings
SPECIFICATIONS
Electrical
Current Rating (Amperes) *
UL
EN1175-1:1998
CSA
Voltage Rating
UL / CSA
EN1175-1:1998
Wire Range
- Power Contacts - AWG (mm²)
- Auxiliary Contacts - AWG (mm²)
Dielectric Withstanding Voltage (AC)
Average Contact Resistance (micro-ohms)
Operating Temperature (°C)
(°F)
Mechanical
Life
a. No Load (mating cycles)
b. Under Load (Hot Plug 5 mating cycles @96V)
Average Mating / Unmating Force (lbf)
(N)
Degree of Protection
Acid Resistence
Contact Retention - minimum (lbf)
(N)
Materials
Housing
Contacts
Hardware
350
320
270
600
150
#1/0 to #4/0 (50 / 95)
#18 to #10 (1.5 / 6)
2,200
30
-25° to 105°
-13° to 221°
>5000
800A
12
53
IP23
1.10g / cm³
100
445
PA6 (Nylon) glass filled
Copper alloy, silver plate
Steel, zinc chromate plate
* Current derating curves must be observed as current capacity will vary dependent on wire cross section and ambient temperature. Maximum current carrying capacity is measured at 40°C / 104°F using
the maximum wire cross section permissible, crimped to contacts using APP recommended tooling.
ORDERING INFORMATION
Connector Part Number Selection
Series
A32
4
Plug
Gender
4
Main
Contact
01
-
Handle
1
Coding
Key
0
Auxiliary Contacts
B
Packaging
9
9 Individual
0 None
8 Bulk
A (2) Lower Auxiliary Contacts (320-22)
B (2) Upper Auxiliary Contacts (320-24)
0
2
3
Grey, W et Cell
Green, Dry Cell
Yellow, Universal
C (2) Lower Auxiliary Contacts & (320-22)
(2) Upper Auxiliary Contacts (320-24)
Accessories
Part
Number
160-12
160-14
16-89
32-89
A320LP-MK
A320HL-MK
994G4
993G4
Description
#10 (6mm²) Lower aux contact
#12 (4mm²) Upper aux contact
Handle kit - low profile
Handle kit - high profile
Latch plate for mating side
Handle with latch & hardware
Manual release bracket & handle
Manual release mounting plate for
mating half
00 None - Order Separately
01 #1/0 AWG / 50 mm²
02 #2/0 AWG / 70 mm²
03 #3/0 AWG / 95 mm²
04 #4/0 AWG
0 No
1 Black
ORDERING INFORMATION
Tooling
Temperature (°C)
Part
Number
1309G4
1387G3
E160-36
Description
Hand tool for auxiliary contacts #14/18 AWG (2.5 / 2.5 mm²)
Hydraulic tool for power contacts
Extraction tool

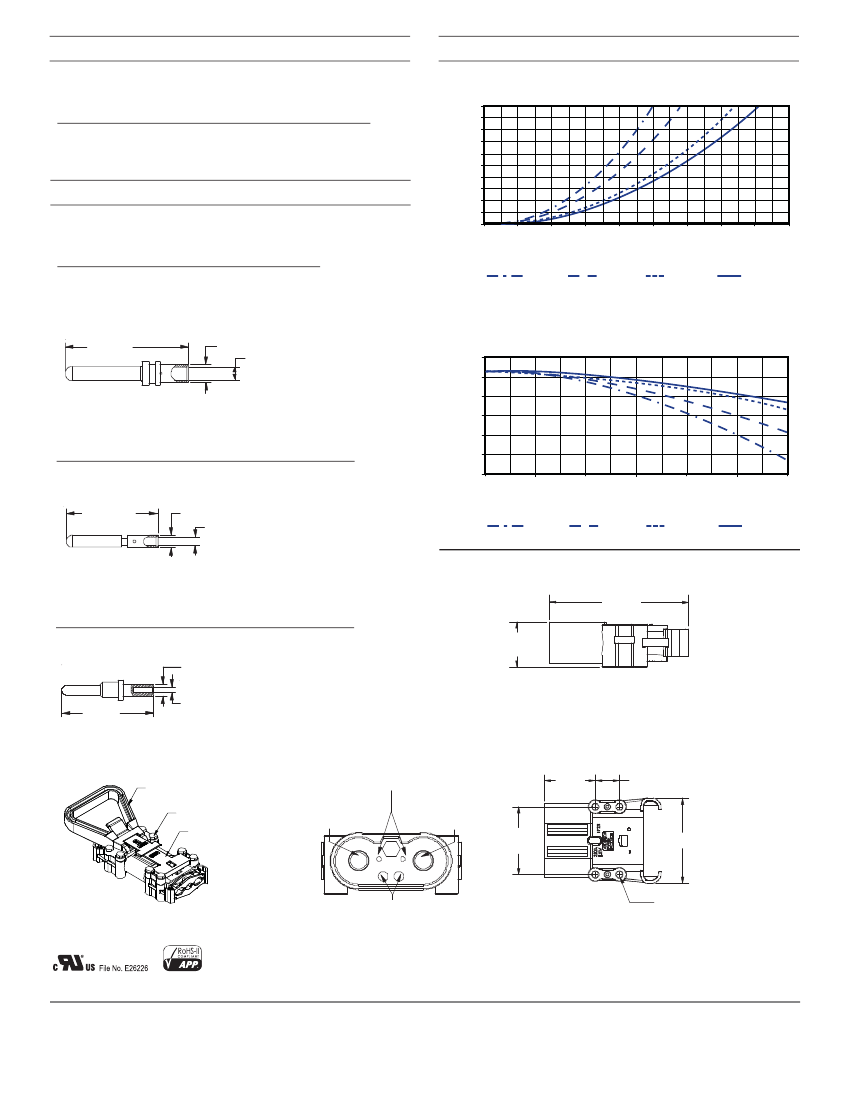

TEMPERATURE CHARTS
50
45
40
35
30
25
20
15
10
5
0
“A” Series - A32
Temperature Rise
Note: For tooling die information, see tooling chart on website
DIMENSIONS
Pin Contact
Part
Number
320-1050
320-1070
320-1095
320-1004
- Wire -
-ØA-
-ØB-
AWG mm²
in.
mm
in. mm
#1/0 50
0.57 14.5
0.43 11.0
#2/0 70
0.67 17.0
0.51 13.0
#3/0 95
0.78 19.8
0.59 15.0
#4/0 N/A
0.78 19.8
0.61 15.6
0
50
50mm²
100
150
70mm²
200
250
300
350
400
Current (A)
95mm²
#4/0 AWG
Note: Temperature ratings based on Power Contacts energized only
Ambient Temperature (°C)
[ 85.5 ]
3.37
ØA
ØB
120
100
80
60
40
20
0
“A” Series - A32 Derating Curve
(0.8 Derating per IEC 60512-3)
Part
Number
160-14
320-24
Upper Auxiliary Contact
- Wire -
AWG
mm²
#12
4
#18 / 14 1.5 / 2.5
-ØA-
in.
mm
0.16 4.1
0.18 4.6
-ØB-
in.
mm
0.11 2.8
0.09 2.2
0
50
50mm²
100
150
200
95mm²
250
300
[ 30.1 ]
1.19
ØA
ØB
Current (A)
70mm²
#4/0 AWG
Note: Temperature ratings based on Power Contacts energized only
Housing Side View
Part
Number
160-12
320-22
Lower Auxiliary Contact
- Wire -
AWG
mm²
#10
6
#18 / 14 1.5 / 2.5
-ØA-
in.
mm
0.20 5.1
0.18 4.6
-ØB-
in.
mm
0.15 3.8
0.09 2.2
[ 122.5 ]
4.82
[ 40.3 ] REF
1.59
ØA
[ 36.0 ]
1.42
ØB
Handle / Lever Assembly / Latch
Handle & Lever Assembly
Mounting Hardware
Latch Plate
Housing Front View
Upper Auxiliary Contacts
Housing Top View
[ 54.0 ]
2.13
[ 24.0 ]
0.94
Main
Power
Contact
Main
Power
Contact
[ 69.0 ]
2.72
[ 89.0 ]
3.50
Ø [ 6.6 ] (4)
0.26
Lower Auxiliary Contacts
© 2017 Anderson Power Products, Inc. All rights reserved. APP®, Anderson Power Products® and the APP Logo are registered trademarks of Anderson Power
Products, Inc. Anderson™ is a trademark of Anderson Power Products, Inc. All data Subject To Change Without Notice
®
2017-0054
®
DS-A32EBCM REV 8
