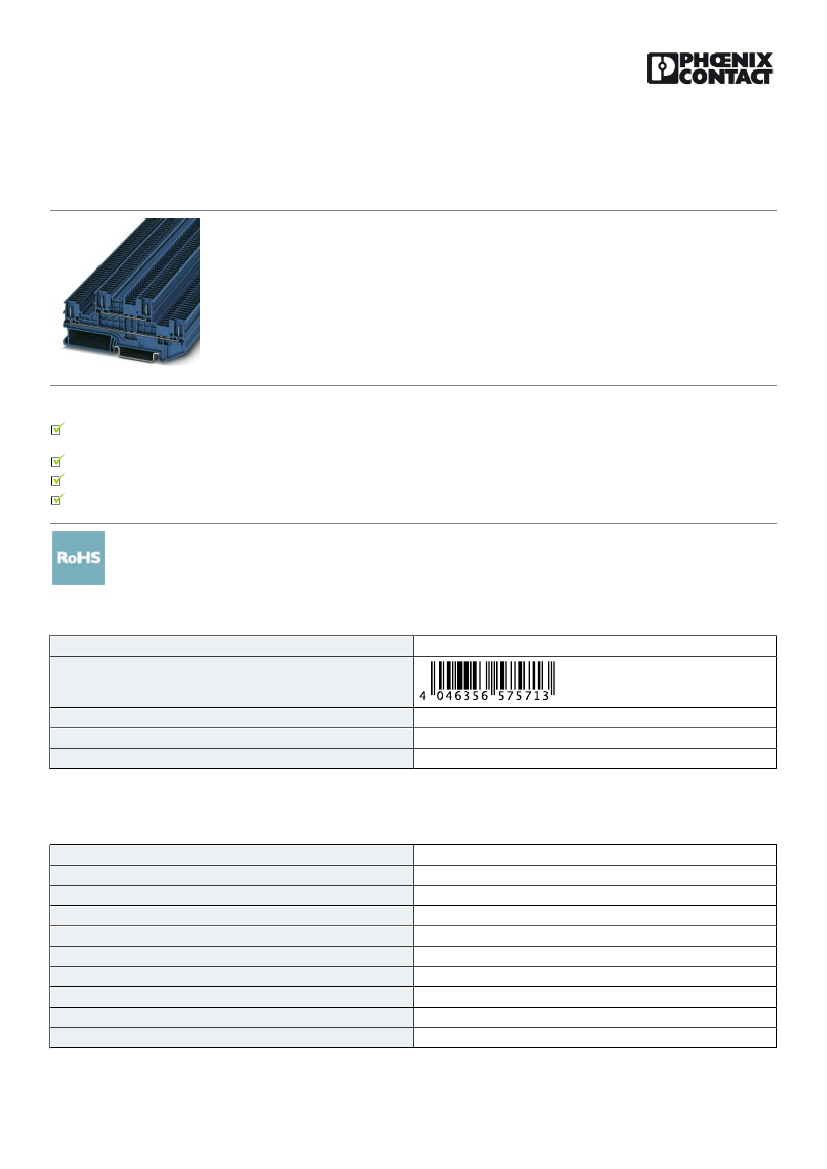

Double-level terminal block - PTTB 1,5/S/4P BU - 3213878
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Double-level terminal block, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, Connection type: Push-in
connection, Width: 3.5 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
Why buy this product
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Tested for railway applications
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356575713
85369010
Made to Order (non-returnable)
50 STK
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
2
4
1.5 mm²
blue
PA
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
6 kV
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3213878
Double-level terminal block - PTTB 1,5/S/4P BU - 3213878
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec.; UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
IEC 61984
16 A (observe derating)
16 A (with 1.5 mm² conductor cross section)
500 V
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
3.5 mm
93.9 mm
42.6 mm
50.1 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Push-in connection
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
14
0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3213878
Double-level terminal block - PTTB 1,5/S/4P BU - 3213878
Technical data
Connection data
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Internal cylindrical gage
0.14 mm²
1 mm²
A1 / B1
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 61984
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
18
16
14
12
10
8
6
4
2
0
0
Diagram
Current strength [A]
= 2-pos.
= 5-pos.
= 10-pos.
= 15-pos.
20
40
60
80
100
Ambient temperature [°C]
Approvals
Approvals
Approvals
VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40034766
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
14.1 A
500 V
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3213878
Double-level terminal block - PTTB 1,5/S/4P BU - 3213878
Approvals
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-50172
14.1 A
500 V
UL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
15 A
300 V
C
15 A
300 V
D
5A
600 V
cUL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
15 A
300 V
C
15 A
300 V
D
5A
600 V
EAC 7500651.22.01.00246
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
