Self-Locking Coupling • Optional Ground Lug
CONNECTOR DESIGNATOR:
AS85049/15 and AS85049/16
45° and 90° Qwik-Ty
®
Strain Reliefs
B
AS85049
H
MIL-DTL-38999, Series III and IV
EN3645
SELF-LOCKING
COUPLING
Basic Part Number
M85049/15
= 45°
M85049/16
= 90°
Configuration
––
= Non-Self-Locking
N
= Non-Detented
G
= Self-Locking with Ground Lug
H
= Non-Detented with Ground Lug
S
= Self-Locking without Ground Lug
M85049/15
G
G
11
Shell Size
N
Finish
A
= Anodize, Black
N
= Electroless Nickel
W
= 1,000 Hour Cadmium Olive Drab
over Electroless Nickel
X
= Nickel Fluorocarbon Polymer
Y
= Pure Dense Electrodeposited
Aluminum
Z
= Zinc-Nickel, Black
A Thread
Typ.
M85049/16S =
.50 (12.7) Max
M85049/16G =
.69 (17.5) Max
E
Dia
E
Dia
H
F
Ground Lug
Typical on
M85049/15G and
M85049/16G only
MS3367-1
Tie Strap or
Equivalent
(Typical)
E Dia
Max
.860
.984
1.160
1.280
1.410
1.520
1.640
1.770
1.890
(21.8)
(25.0)
(29.5)
(32.5)
(35.8)
(38.6)
(41.7)
(45.0)
(48.0)
F Max
Cable Entry
.264
.392
.506
.631
.756
.845
.970
1.095
1.220
(6.7)
(10.0)
(12.9)
(16.0)
(19.2)
(21.5)
(24.6)
(27.8)
(31.0)
M85049/15S
G Max
1.030
1.030
1.030
1.090
1.110
1.210
1.260
1.300
1.340
(26.2)
(26.2)
(26.2)
(27.7)
(28.2)
(30.7)
(32.0)
(33.0)
(34.0)
F

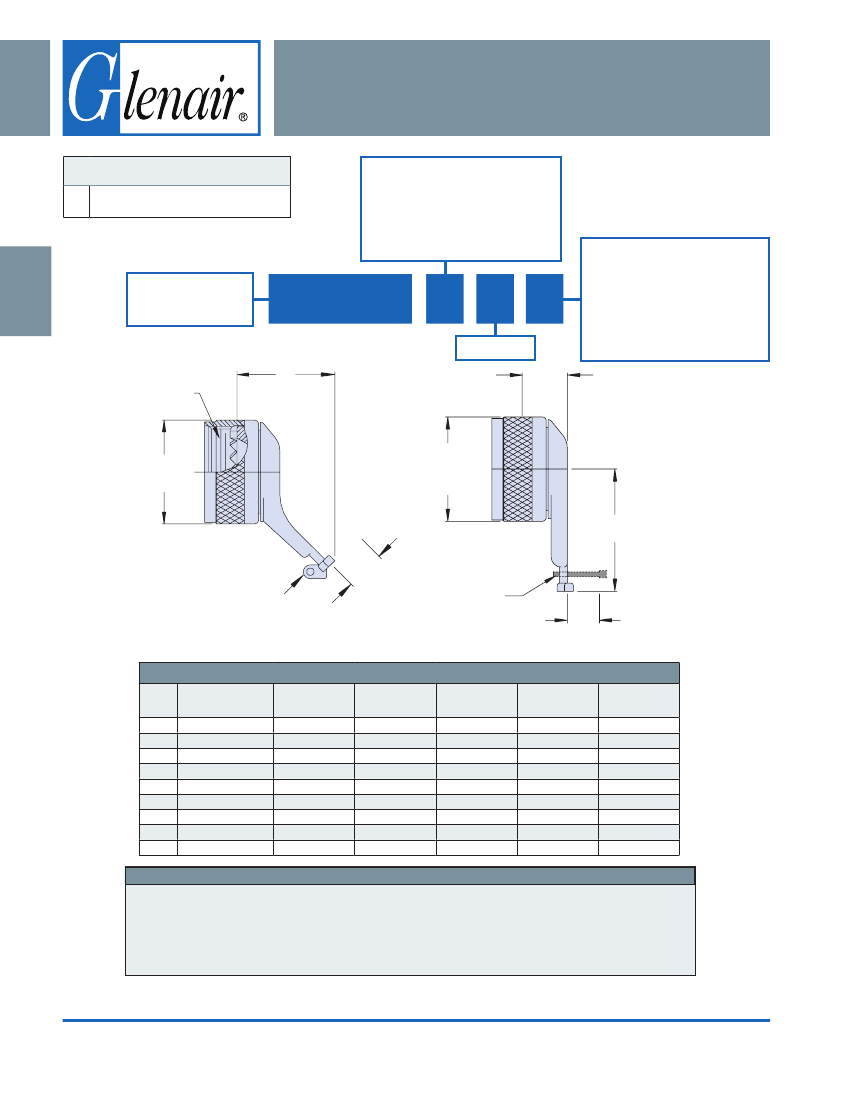

TABLE I: Shell Size, Thread, Cable Entry and Backshell Dimensions
Shell
Size
9
11
13
15
17
19
21
23
25
A Thread
Class 2B
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
M85049/15G
G Max
1.210
1.210
1.390
1.390
1.390
1.390
1.390
1.390
1.390
(30.7)
(30.7)
(35.3)
(35.3)
(35.3)
(35.3)
(35.3)
(35.3)
(35.3)
M85049/16
H Max
1.220
1.290
1.620
1.660
1.720
1.720
1.790
1.850
1.910
(31.0)
(32.8)
(41.1)
(42.2)
(43.7)
(43.7)
(45.5)
(47.0)
(48.5)
APPLICATION NOTES
1.
2.
3.
4.
Assembly identified with manufacturer’s name and part number, space permitting.
For complete dimensions, see the applicable Military Specification.
Cable entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not
intended for inspection criteria.
Metric dimensions (mm) are in parentheses.
Dimensions in inches (millimeters) and are subject to change without notice.
