DF1E-4EP-25C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DF1E-4EP-25C

DF1E-4EP-25C: DescriptionHDMI, Displayport u0026 DVI Connectors .5MM RA SMT RCPT; CategoryThe connector; File Size356KB，14 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

DF1E-4EP-25C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF1E-4EP-25C	-	-	View	Buy Now

DF1E-4EP-25C Overview

HDMI, Displayport u0026 DVI Connectors .5MM RA SMT RCPT

DF1E-4EP-25C Parametric

Parameter Name	Attribute value
Product Category	Headers & Wire Housings
Manufacturer	Hirose
RoHS	Details
Product	Wire Housings
Type	Plug Housing
Packaging	Bulk
Factory Pack Quantity	100

Preview

Download Datasheet

View All

2.5mm Pitch Connectors for Full Lock and Discrete Wire Connection

DF1E Series

Full lock function

added

UL, C-UL Listed

Inner-lock system

full lock mechanism

Mis-insertion

prevention

Fig.1

■Features

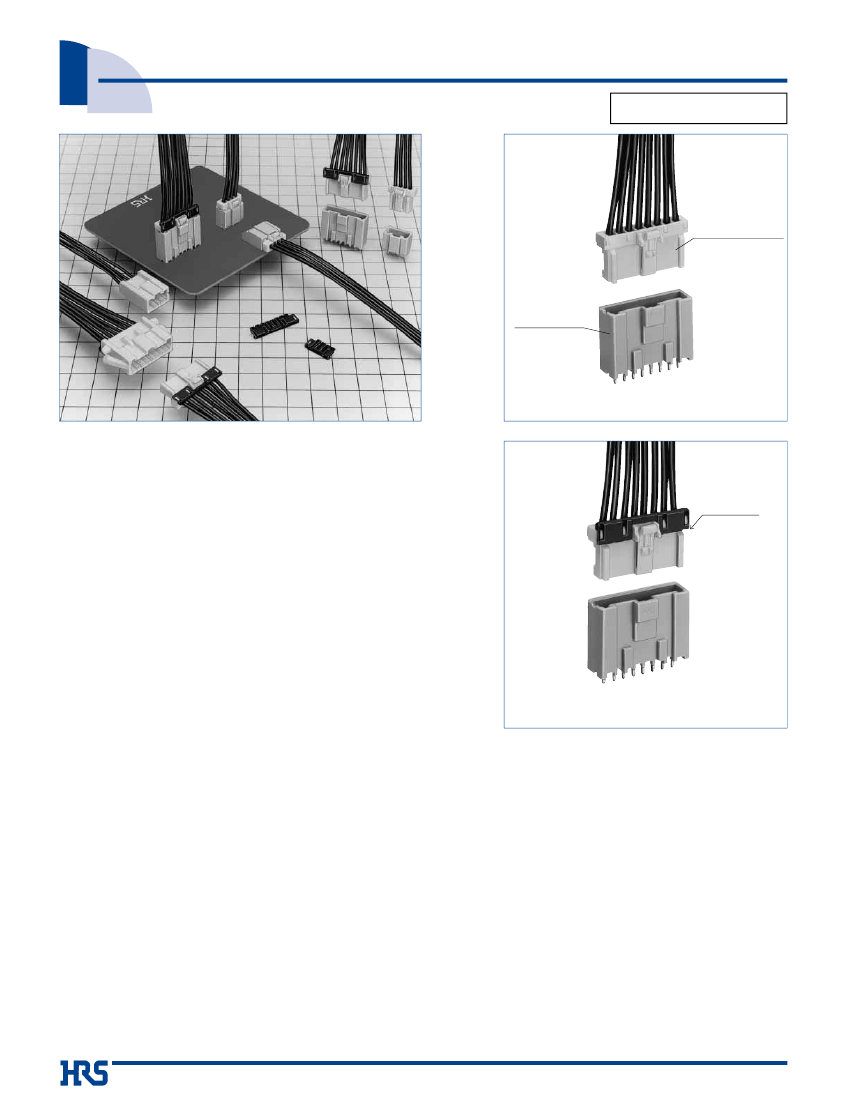

1. Full Lock Function Added

The inner lock system adopts a full lock mechanism.

This mechanism prevents disengagement to occur due to

an unexpected external shock. (Fig.1)

Double lock

engaged

Double lock

engaged

2. Increase in Crimping Contact Fixation Force and

Semi-insertion Prevention

The double lock is activated for the use method to give a

stress to the cable, to increase crimping contact fixation

force, and to prevent the semi-insertion of the crimping

contact. (Fig.2)

3. Mold Lance Adopted

Since the contact lance may be deformed involving in the

contact after the crimping process, the mold lance has been

adopted.

4. Mis-insertion Prevention

Equipped with the mechanism to completely prevent reverse

insertion and insertion between dissimilar contacts. (Fig.1)

Fig.2

5. Means to Prevent Solder Crack

The glass enforcement resin is adopted for the pin header to

prevent a solder crack to occur due to heat compression.

8. Various Applications

With the same series, various applications can

be used for the board solder dip type and in-

line.

6. Correspond to Potting

Corresponding to potting, the pin header is provided for

product variations.

Corresponding to potting up to 8mm and mounting height

19.8mm (no retainer), the low profile is achieved.

9. Listed by UL, C-UL

7. Production Facility Cost Reduction

The female crimping contact uses the DF1B series crimping

contact, which has been conventionally marketed.

Investment for new facilities isn't needed. However, if the

retainer is installed in the cable with 22 AWG or more wire,

use the DF1E crimping contact. The female crimping

contact for in-line is used together with the DF1B applicator.

Therefore, no investment is needed for new facilities.
