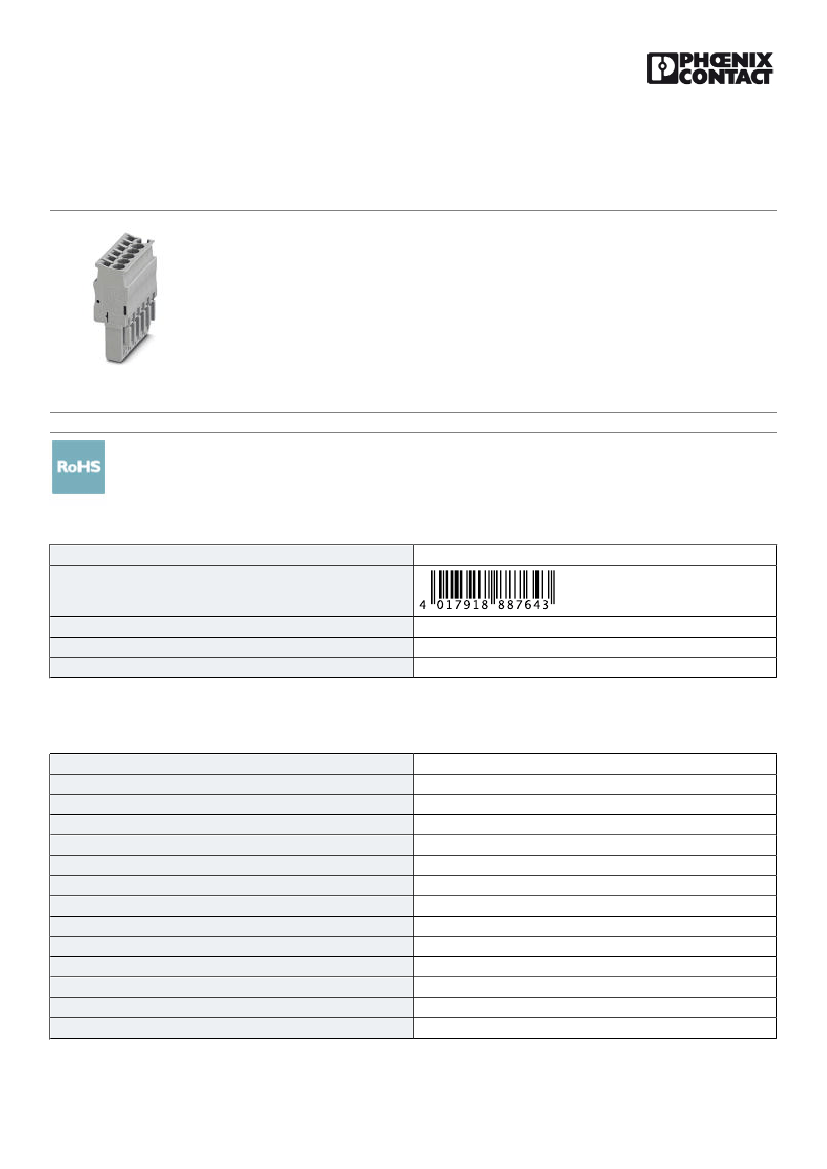

Plug - SP 2,5/ 5 NZ:2 - 3043543
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug
The illustration shows a 6-position
version
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918887643
85366990
Made to Order (non-returnable)
50 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
5
1
5
2.5 mm²
gray
PA
V0
24 A (with a 2.5 mm² conductor cross section)
6 kV
3
III
I
24 A (with 4 mm² conductor cross section)
24 A
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3043543
Plug - SP 2,5/ 5 NZ:2 - 3043543
Technical data
General
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
500 V
No
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Pitch
26 mm
15.8 mm
39 mm
24 mm
5.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Spring-cage connection
IEC 61984
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
0.14 mm²
2.5 mm²
11/15/2016 Page 2 / 4
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
https://www.phoenixcontact.com/hq/products/3043543
Plug - SP 2,5/ 5 NZ:2 - 3043543
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Connection method
0.5 mm²
10 mm
A3
Plug connection
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 61984
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
24-12
20 A
300 V
C
24-12
20 A
300 V
D
24-12
5A
300 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3043543
Plug - SP 2,5/ 5 NZ:2 - 3043543
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40019518
mm²/AWG/kcmil
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
0.2-4
500 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
IECEE CB Scheme
mm²/AWG/kcmil
Nominal voltage UN
http://www.iecee.org/ DE1-52903
0.2-4
500 V
EAC EAC-Zulassung
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
