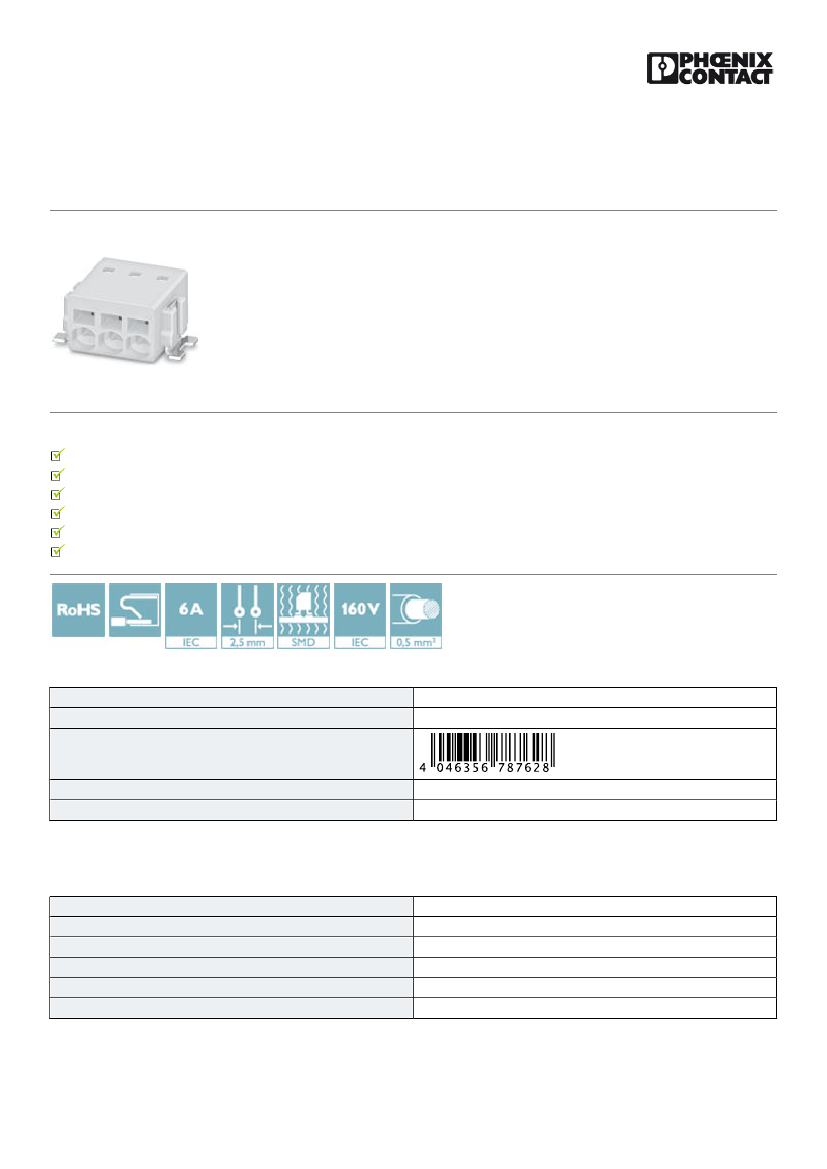

Sample set - SAMPLE PTSM 0,5/ 4-2,5-H SMDWH - 1820945
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 4,
Connection method: Push-in spring connection, Mounting: SMD soldering, Conductor/PCB connection
direction: 0 °, Color: white
The illustration shows the 3-pos.
version
Why buy this product
White design: Stable color when welding and during use
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
High current carrying capacity of 6 A in very compact dimensions
Designed for integration into the SMT soldering process
Additional solder anchors reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
4046356787628
85369010
5 STK
5 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Height
Length of the solder pin
Pin spacing
9 mm
2.50 mm
7.5 mm
5 mm
2 mm
2.5 mm
General
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1820945
Sample set - SAMPLE PTSM 0,5/ 4-2,5-H SMDWH - 1820945
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Flammability rating according to UL 94
Stripping length
Number of positions
PTSM 0,5/..-H-SMD WH
I
2.5 kV
2.5 kV
2.5 kV
63 V
160 V
160 V
EN-VDE
6A
0.5 mm²
6A
HT PA
Sn
V0
6 mm
4
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
0.5 mm²
0.2 mm²
0.5 mm²
26
20
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1820945
Sample set - SAMPLE PTSM 0,5/ 4-2,5-H SMDWH - 1820945
Dimensional drawing
Drilling diagram
M
2,5
a+3
1,95
2
9
3,4
6,6
1,4
2,3
0,3
5
2,5
a
1,5
Diagram
Current strength [A]
12
10
8
6
4
2
0
0
20
40
60
80
100
Ambient temperature [°C]
1
1
= 0,75 mm
2
2
= 0,5 mm
2
2
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
5,6
11/14/2016 Page 3 / 3
