40002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 40002

40002: Description8-bit Microcontrollers - MCU 64KB Flash 3968B RAM 8b FamilynanoWat XLP; CategoryThe connector; File Size233KB，7 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

40002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	40002	-	-	View	Buy Now

40002 Overview

8-bit Microcontrollers - MCU 64KB Flash 3968B RAM 8b FamilynanoWat XLP

40002 Parametric

Parameter Name	Attribute value
Product Category	Barrier Terminal Blocks
Manufacturer	Altech
RoHS	Details
Product	Barrier Terminal Blocks
Number of Positions	2 Position
Pitch	8 mm
Current Rating	20 A
Voltage Rating	300 V
Wire Gauge Range	22 AWG to 12 AWG
Type	Wire-to-Wire
Mounting Style	Free Float, Panel
Color	White
Housing Material	Polyamide (PA)
Mounting Angle	Right
Factory Pack Quantity	100
Termination Style	Screw
Wire Gauge Max	12 AWG
Wire Gauge Min	22 AWG

Preview

Download Datasheet

View All

FIND IT

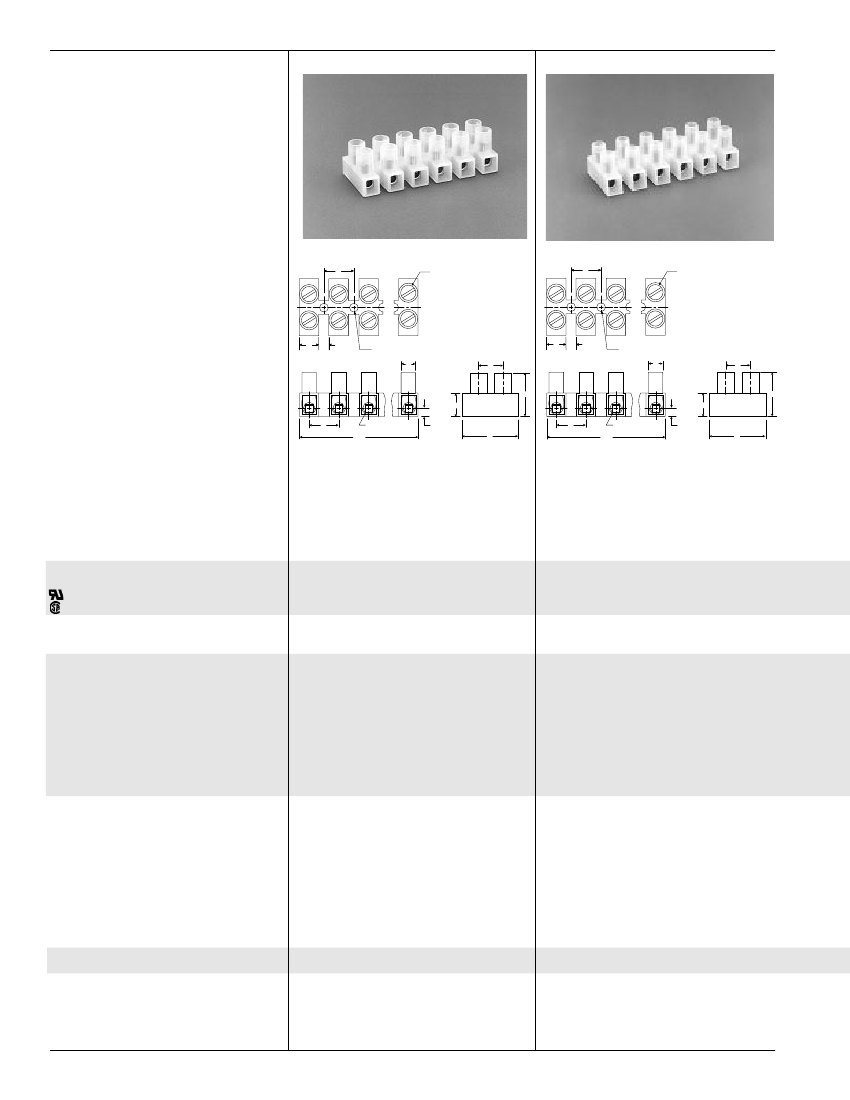

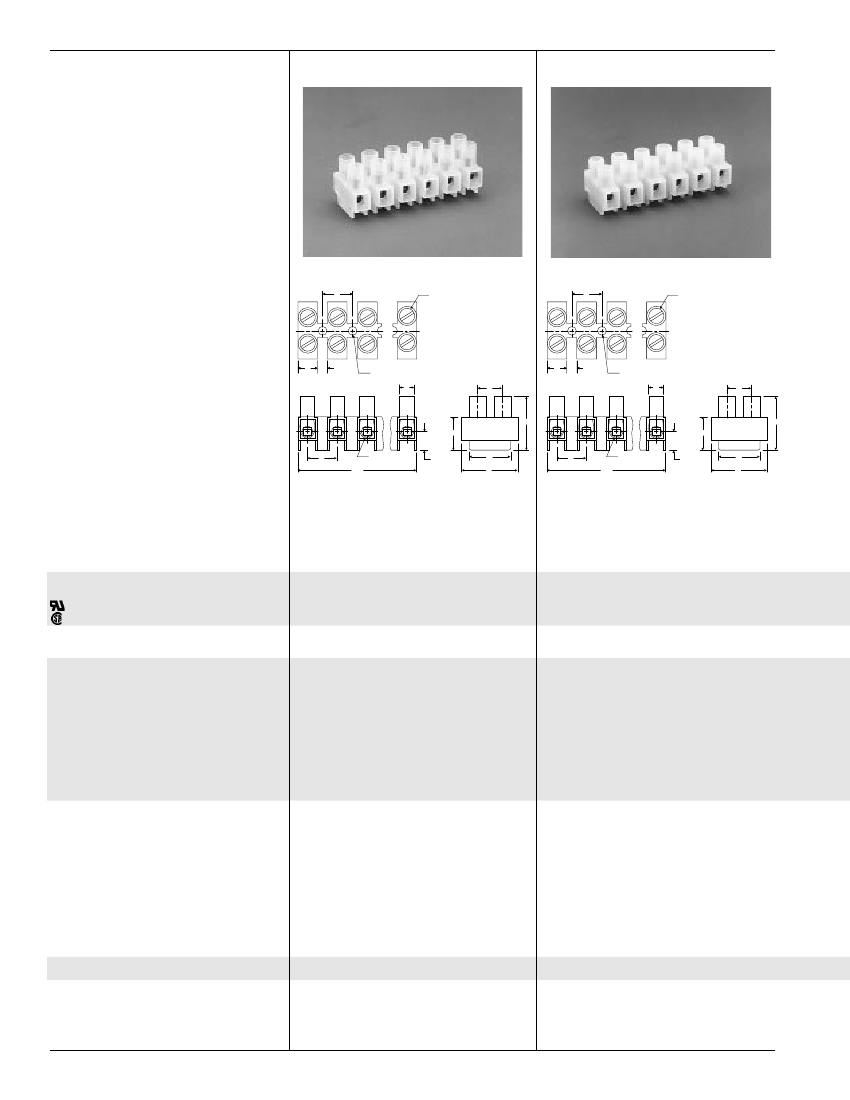

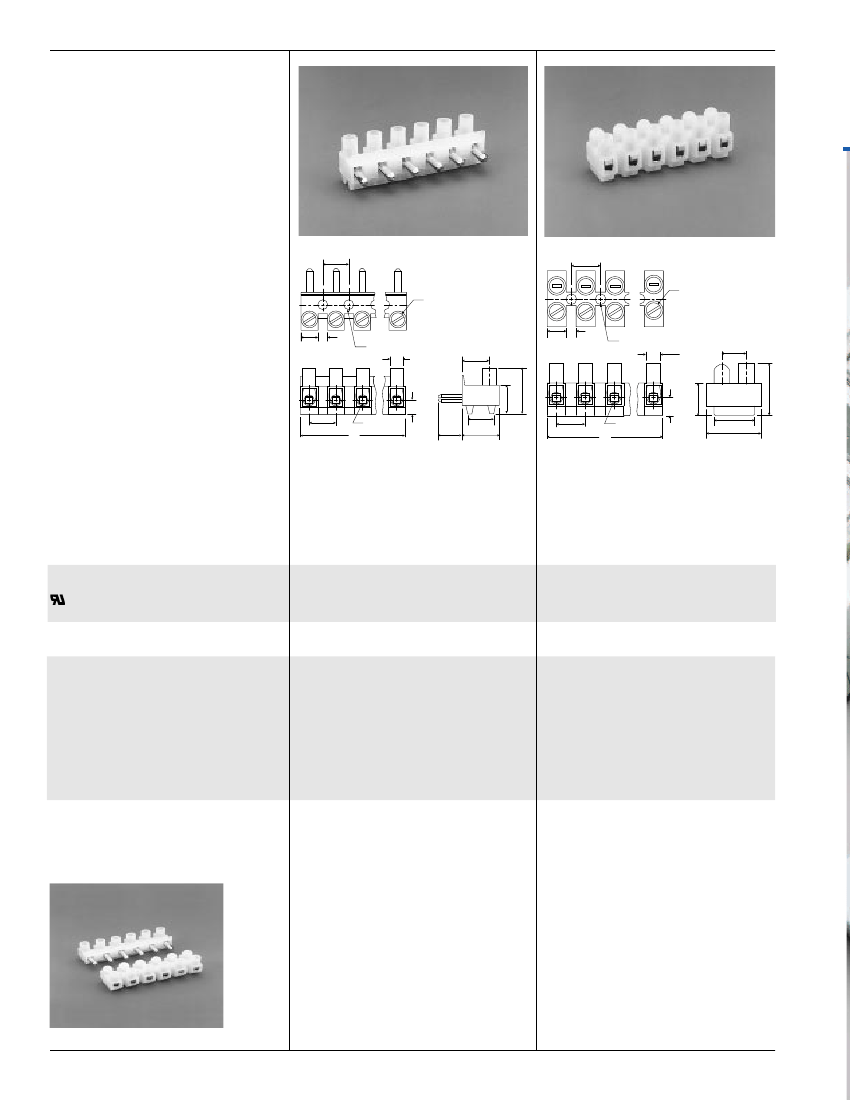

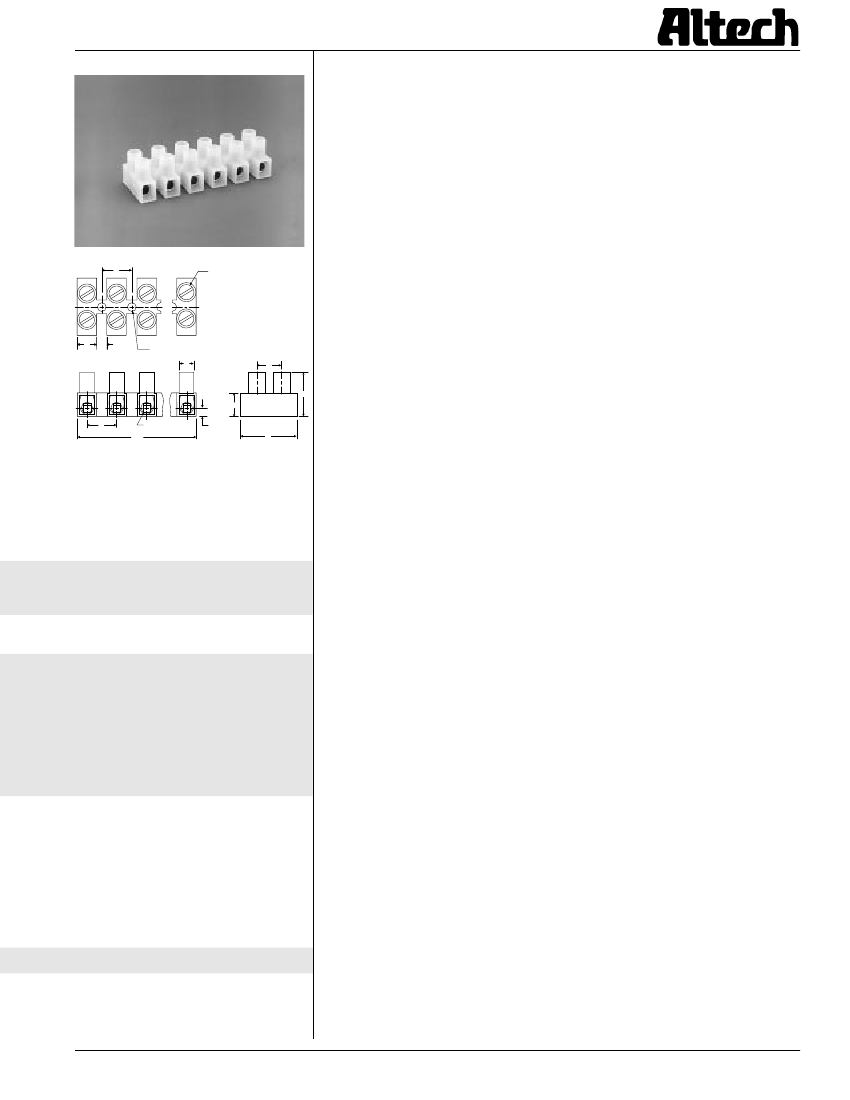

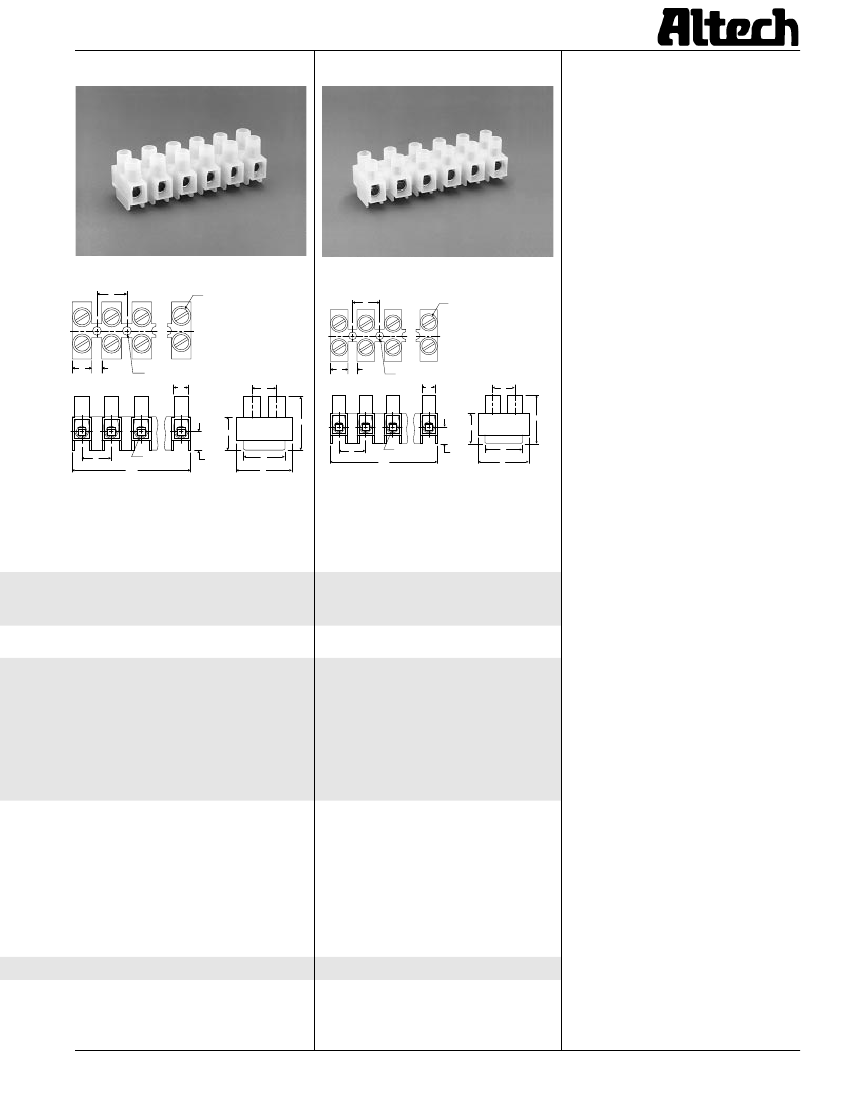

FEED-THROUGH

FLAT BASE EUROSTRIPS

300V - Panel Mount

For wire-to-wire connections in HVAC,

appliance, equipment, power distribution and

other industrial applications with strict budget

and space requirements.

Easy to use double row terminal strips are a

cost-effective alternative to barrier strips or

other types of terminal blocks. Simply strip

the wire, insert, and tighten the screw.

Eurostrips

feature tubular screw clamps,

with or without wire protectors, and recessed

metal parts for finger protection. The wire

protectors include an integral wire stop in the

center of the terminal. The stainless steel

wire protectors exhibit excellent memory and

the wire stop insures the most effective

connection.

Eurostrips described on this and the

following page are available with a flat base

for minimum clearance applications. They

can be panel mounted or left to free float.

Offered in easy to cut standard 12 pole strips,

they can also be ordered precut with the

required number of poles.

•

Tubular Screw Clamp

With or Without Wire Protectors

Panel Mount or Free Float

Housing Material: Polyamide 6.6

Color: Opaque White

Marking Plates or Factory Imprinted

TS1.5

Flat Base

Pole Spacing 8mm (.315)

Mounting Hole Diameter 2.8mm (.110)

Stripping Length 5mm (.197)

Wire Range

1.5mm

22-12 AWG

22-16 AWG

Current

18A

20A

15A

Cat. No.

40.002

40.003

40.004

40.005

40.006

40.007

40.008

40.009

40.010

40.011

40.012

40.052

40.053

40.054

40.055

40.056

40.057

40.058

40.059

40.060

40.061

40.062

Voltage

380V

300V

Std.

Pk.

100

TS2.5

Flat Base

Pole Spacing 10mm (.394)

Mounting Hole Diameter 3.5mm (.138)

Stripping Length 6mm (.236)

Wire Range

2.5mm

22-10 AWG

18-12 AWG

Type

TS2.5/2wp

TS2.5/3wp

TS2.5/4wp

TS2.5/5wp

TS2.5/6wp

TS2.5/7wp

TS2.5/8wp

TS2.5/9wp

TS2.5/10wp

TS2.5/11wp

TS2.5/12wp

TS2.5/2

TS2.5/3

TS2.5/4

TS2.5/5

TS2.5/6

TS2.5/7

TS2.5/8

TS2.5/9

TS2.5/10

TS2.5/11

TS2.5/12

Current

26A

30A

Cat. No.

40.202

40.203

40.204

40.205

40.206

40.207

40.208

40.209

40.210

40.211

40.212

40.252

40.253

40.254

40.255

40.256

40.257

40.258

40.259

40.260

40.261

40.262

Voltage

380V

300V

Std.

Pk.

100

Ratings

IEC/VDE

(File No. E148805)

(File No. LR38962)

Ordering Information

Eurostrip

, Flat Base

with Wire Protector

No. of

Poles

Type

TS1.5/2wp

TS1.5/3wp

TS1.5/4wp

TS1.5/5wp

TS1.5/6wp

TS1.5/7wp

TS1.5/8wp

TS1.5/9wp

TS1.5/10wp

TS1.5/11wp

TS1.5/12wp

TS1.5/2

TS1.5/3

TS1.5/4

TS1.5/5

TS1.5/6

TS1.5/7

TS1.5/8

TS1.5/9

TS1.5/10

TS1.5/11

TS1.5/12

Length (L)

mm (in.)

13.6 ( .53)

21.5 ( .85)

29.5 (1.16)

37.4 (1.47)

45.4 (1.79)

53.3 (2.10)

61.3 (2.41)

69.2 (2.72)

77.2 (3.04)

85.1 (3.35)

93.0 (3.66)

13.6 ( .53)

21.5 ( .85)

29.5 (1.16)

37.4 (1.47)

45.4 (1.79)

53.3 (2.10)

61.3 (2.41)

69.2 (2.72)

77.2 (3.04)

85.1 (3.35)

93.0 (3.66)

Length (L)

mm (in.)

17.0 ( .67)

27.0 (1.06)

37.0 (1.46)

47.0 (1.85)

57.0 (2.24)

67.0 (2.64)

77.0 (3.03)

87.0 (3.43)

97.0 (3.82)

107.0 (4.21)

117.0 (4.61)

17.0 ( .67)

27.0 (1.06)

37.0 (1.46)

47.0 (1.85)

57.0 (2.24)

67.0 (2.64)

77.0 (3.03)

87.0 (3.43)

97.0 (3.82)

107.0 (4.21)

117.0 (4.61)

Eurostrip

, Flat Base

without Wire Protector

For Accessories, please refer to pages 50, 51

A = 8.0 (.315)

B = M2.5 x 4.3

C = 5.6 (.221)

D = 2.4 (.095)

Dimensions mm (in.)

E = Ø2.8 (.110)

F = Ø5.35 (.211)

G = 8.0 (.315)

H = Ø3.0 (.118)

I = 2.5(.099)

J = 7.5 (.2.96)

K = 6.7 (.264)

M = 13.7 (.540)

N = 18.2 (.716)

A = 10.0 (.394)

B = M3 x 5.8

C = 6.4 (.252)

D = 3.5 (.138)

Dimensions mm (in.)

E = Ø3.5 (.137)

F = Ø5.7 (.225)

G = 10.0 (.394)

H = Ø3.6 (.142)

I = 3.0 (.118)

J = 9.5 (.374)

K = 8.0 (.315)

M = 15.5 (.611)

N = 21.8 (.858)

Clamp screws are zinc chromated steel. Stainless steel or

nickle plated brass screws are available, consult Altech for

ordering information.

Use for solid wire or wire with a ferrule.

Altech Corp.

• 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • Fax (908) 806-9490

40002 Related Products

	40002	40402	40312	40403
Description	8-bit Microcontrollers - MCU 64KB Flash 3968B RAM 8b FamilynanoWat XLP			Barrier Terminal Blocks TS6.0/3wp, 32.0mm Eurostrip,Flat
Product Category	Barrier Terminal Blocks	Barrier Terminal Blocks	Barrier Terminal Blocks	Barrier Terminal Blocks
Manufacturer	Altech	Altech	Altech	Altech
RoHS	Details	Details	Details	Details
Product	Barrier Terminal Blocks	Barrier Terminal Blocks	Barrier Terminal Blocks	Barrier Terminal Blocks
Type	Wire-to-Wire	Wire-to-Wire	Wire-to-Wire	Wire-to-Wire
Factory Pack Quantity	100	100	50	100
