Base strip - MDSTBA 2,5/ 3-GL - 1874691
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Color: green,
Contact surface: Tin, Assembly: Soldering, The article can be aligned to create different nos. of positions! In
combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or
FKCVR) must be used. Combination with TMSTBP plug components is not possible!
The figure shows a 10-position
version of the product
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
5.19 GRM
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
22 mm
5 mm
10 mm
1 x 1 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
MDSTBA 2,5/..-G
IIIa
4 kV
4 kV
4 kV
250 V
320 V
400 V
10/29/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/1874691
Base strip - MDSTBA 2,5/ 3-GL - 1874691
Technical data
General
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Inflammability class according to UL 94
Color
Number of positions
EN-VDE
10 A
10 A
PBT
V0
green
3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / IECEE CB Scheme / GOST / CCA / cULus Recognized
10/29/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/1874691
Base strip - MDSTBA 2,5/ 3-GL - 1874691
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
10 A
300 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
10 A
250 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
10 A
300 V
GOST
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
10 A
250 V
10/29/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/1874691
Base strip - MDSTBA 2,5/ 3-GL - 1874691
Approvals
GOST
CCA
Nominal current IN
Nominal voltage UN
10 A
250 V
cULus Recognized
Drawings
10/29/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/1874691
Base strip - MDSTBA 2,5/ 3-GL - 1874691

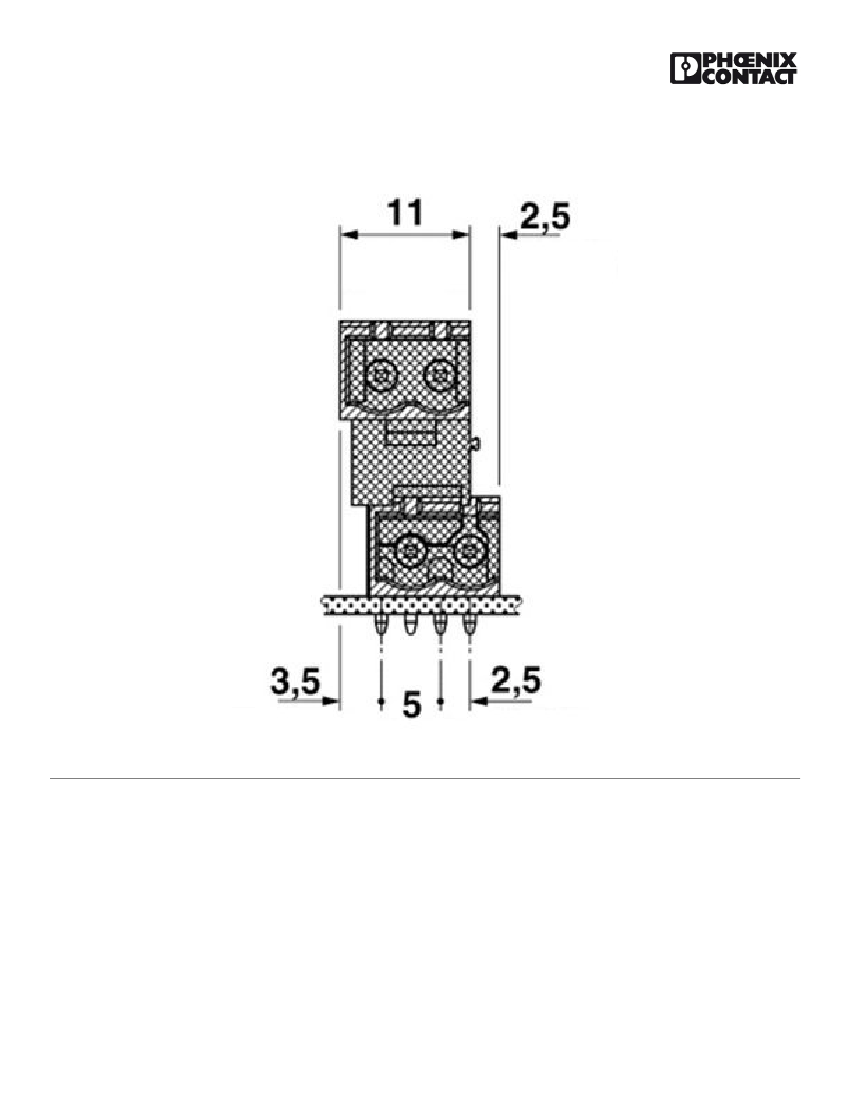

Dimensioned drawing
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/29/2014 Page 5 / 5
