31387-2002

Description
Automotive Connectors INDV. LOOSE CBL SEAL WHITE
CategoryThe connector    The connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

31387-2002 Online Shopping

Suppliers Part Number Price MOQ In stock
31387-2002 - - View Buy Now

31387-2002 Overview

Automotive Connectors INDV. LOOSE CBL SEAL WHITE

31387-2002 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresMX123
body width1.287 inch
subject depth0.848 inch
body length2.625 inch
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact styleSQ PIN-SKT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
reliabilityCOMMERCIAL
Shell materialGLASS FILLED SPS
Terminal length0.52 inch
Termination typeSOLDER
Total number of contacts73
Base Number Matches1

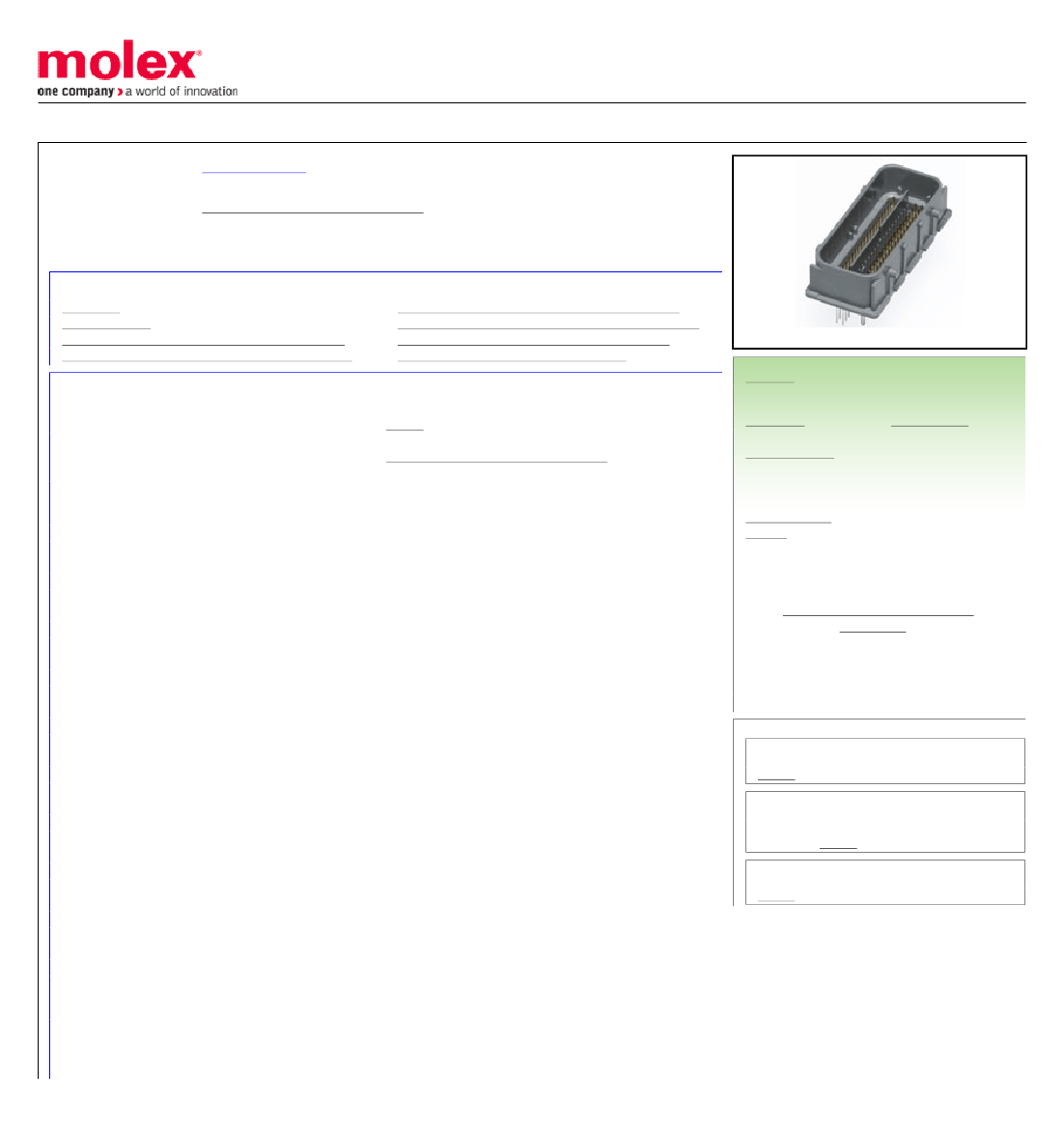

This document was generated on 12/05/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0313872002
Active
MX123™ Sealed Connection System
2.54mm Pitch, MX123 Header, 73 Circuits Shrouded Assembly, (72) 0.64mm Square
Signal Pins + (1) 2.8mm Power Blade, Harness Side Key Code B, Gray (Au Mate Side
Finish)
Documents:
3D Model
Drawing (PDF)
Product Specification PS-31387-200-001 (PDF)
Product Specification PS-34566-0000-001 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Product Specification TS-34566-002-001 (PDF)
Application Specification AS-31386-200-001 (PDF)
Packaging Specification PK-31301-916 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Compliant
PCB Headers
31387
Power, Wire-to-Board
MX123™ Sealed Connection System
MX123
822348860647
No
73
73
Gray
No
No
No
Yes
Yes
Copper Alloy
Gold
Tin
Nylon Alloy
22.610/g
4
Vertical
6.50mm
No
None
Carton
2.54mm
2.54mm
Yes
No
Yes
No
No
-40°C to +125°C
Through Hole
11.0A
500V
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Compliant
Not Contained
Search Parts in this Series
31387 Series
Mates With
MX123 Female Harness Connector
Assembly 34566
Use With
33467 MX64 Female Terminals Au
