NEUTRIK
®
75
Ω
BNC Connectors

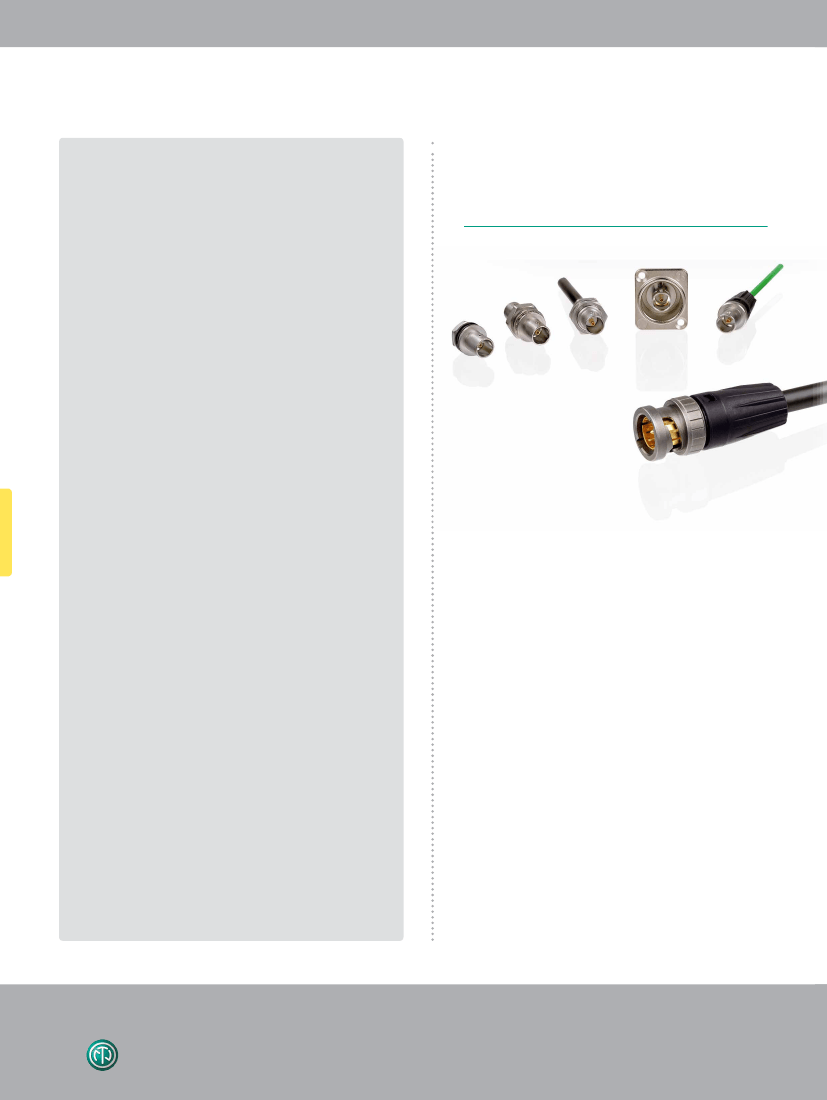

Neutrik offers a variety of 75
Ω
cable and chassis
BNC connectors. The rearTWIST cable connectors are
easy to handle in high density applications such as
video patchbays and switches, provide a tactile and
fast assembly and offer colour coding as a standard.
All parts of our BNC series are precisely machined to
our high quality standards.
NEUTRIK
®
, crystalCON
®
, etherCON
®
, maxCON
®
, miniCON
®
,
nanoCON
®
, neutriCON
®
, opticalCON
®
, powerCON
®
, Profi
®
,
rearTWIST
®
, silentPLUG
®
, speakON
®
, DIWA
®
,XIRIUM
®
, are
registered trademarks of Neutrik AG.
122
setting standards
B N C
C o n n e c t o r s
rear
TWIST
UHD – BNC Connector
With the transition to 4K or even 8K-signals the impedance of BNC
connectors became more important than ever. Every deviate impedance
has a negative influence on return loss and VSWR (Voltage Standing
Wave Ratio) which are important measurements for reflected signals in
a transmission line. Especially on high data rates up to 24 Gb/s, as they
occur when transmitting ultra high definition (UHD) signals, an impedance
mismatch results in high return loss.
Neutrik´s new rearTWIST UHD-BNC connector is a specificlally for high
frequencies optimized BNC connector; based on the proven rearTWIST
technology. The unique insulator design in combination with the reduced
crimp diameter of the gold plated center pin allows UHD-data transmission
within the required return loss limits.
4K
4K8K

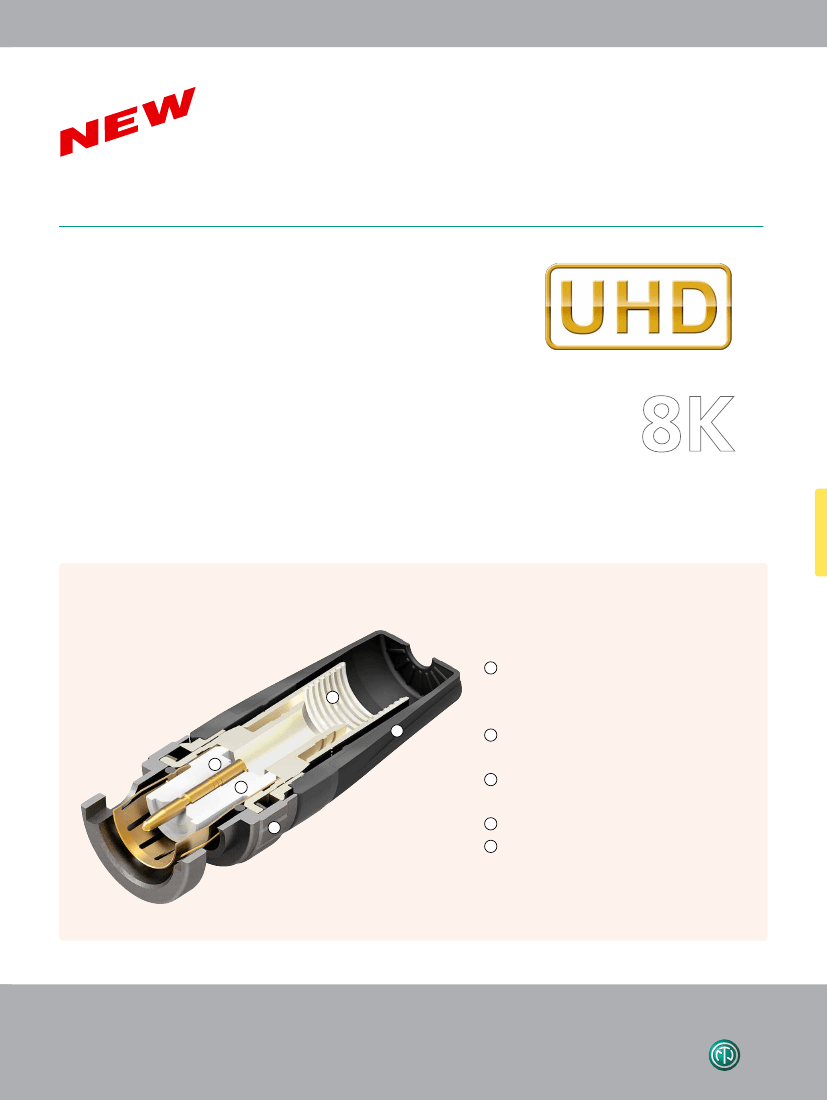

Features & Benefits
1 Screen and cable jacket crimp instead of screen
1
5
3
2
crimp only. Grooved inner surface holds the
cable jacket to prevent tearing braids.
2 High frequency optimized insulator design for
UHD-transmissions.
3 Reduced pin crimp diameter for performance
improvement (return loss values).
4
4 Swiss antraloy plating
5 rearTWIST boot for easy access in high density
applications.
www.neutrik.com
123
r e a r T W I S T
U H D
B N C
4K8K
Gold plated contacts
Precise Swiss
machined parts

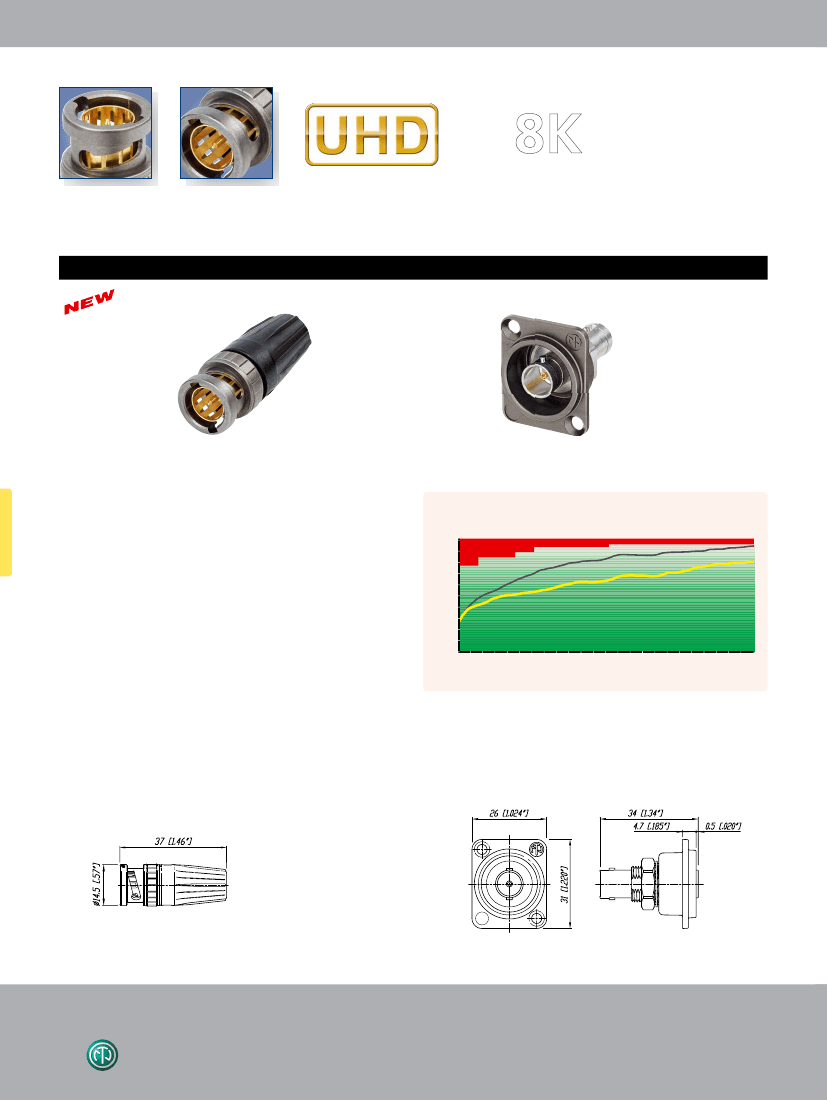

rearTWIST UHD & Panel Version
NBNC75BFG7X
NBB75DFGX
•
Optimized contact pin and insulator design for UHD-data
transmission
Neutrik BNCs – Excellent return loss!
-5
-10
-15
•
Proven rearTWIST technology
Return loss (dB)
UHD-LIMIT
rearTWIST HD - BNC Connectors
•
Swiss antraloy plating
•
Available for common cable types
•
Fully compatible with conventional BNC chassis connectors
•
D-size feedthrough chassis connectors
-20
-25
-30
-35
-40
-45
-50
-60
0
5
10
15
20
24
rearTWIST UHD - BNC Connectors
Frequency range (GHz)
NBNC75*
NBB75DFG
124
setting standards
r e a r T W I S T
H D
B N C
Bayonet locking
Gold plated contacts
9 different colors
available
Female cable jack

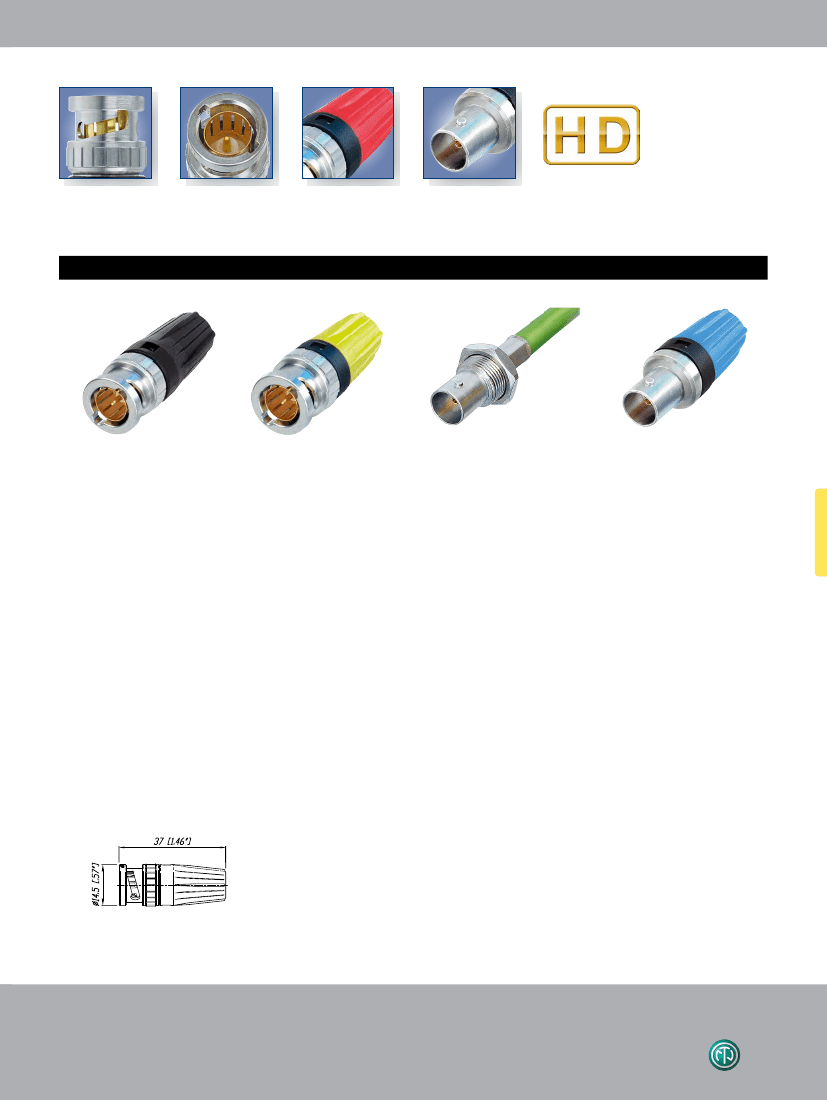

rearTWIST HD
NBNC75BFG7
NBNC75BLP7
NBNB75GLP9
NBTB75CFI4
•
“rearTWIST Principle” locking / unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
•
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from
the back and not the front.
•
Snug-fit center pin insert provides tactile feedback
•
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
•
Large version for RG 11 cable
•
Precise Swiss machined brass parts for outstanding durability
•
Accessories include color coded boots in 10 standard colors, crimp tool and dies
•
Sleek female cable jack e.g. for Y-cables
NBNC75*
www.neutrik.com
125
