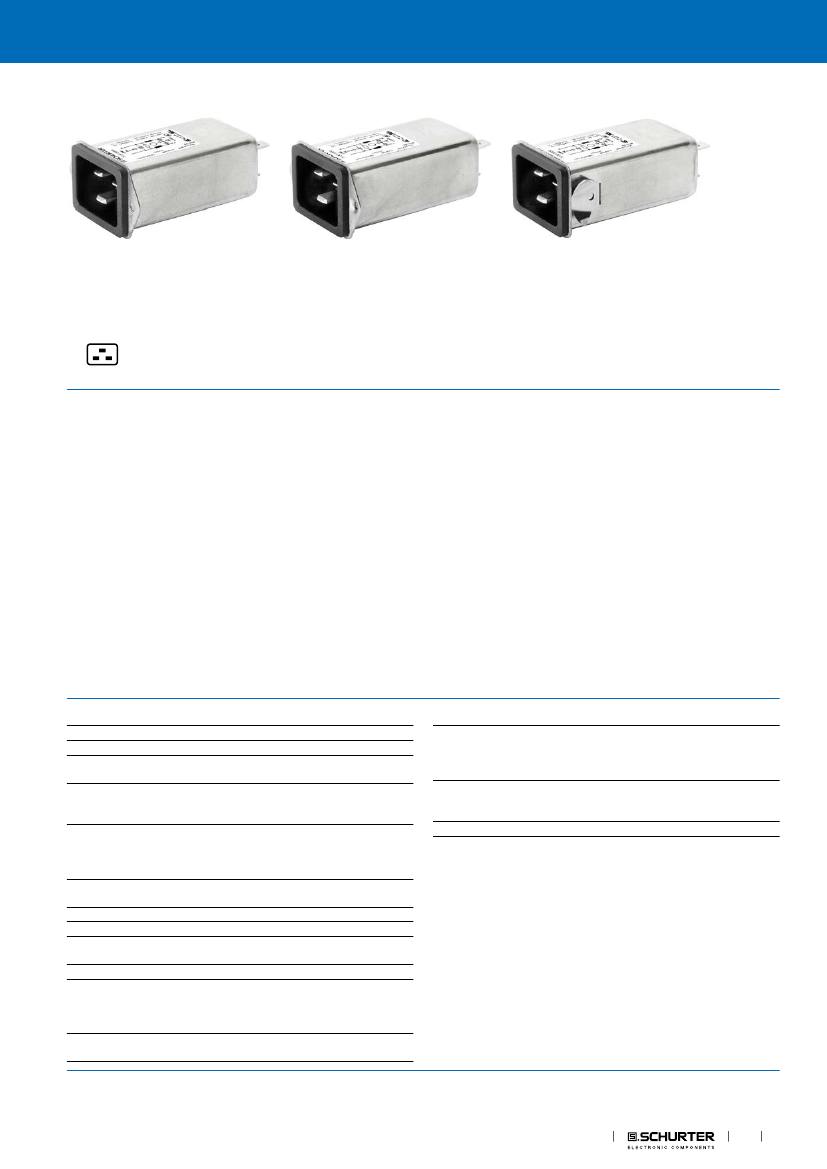

Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5130
IEC Appliance Inlet C20 with Filter, ECO design, front or rear side Mounting
Screw-on or rivet mounting from front or rear side
Screw-on Version
Screw-on mounting from rear side, integrated
thread
Screw-on Version
Snap-in mounting from front side
Snap-in version
C20
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on version from front or rear side, snap-in version from front
side
- 2 Functions :
Appliance Inlet Protection class I , Line filter in standard and medical
version
- Quick connect terminals
Characteristics
- Optimal shielding due to completely closed filter case, unpotted
Suitable for assembly in metal plated plastic housings
- Version with class X1 and X2 (standard version) capacitors
- Universal line filter for standard applications
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
- Solder terminals
- Medical version M80
- Capacity CX 330 nF
Unique Selling Proposition
-
-
-
-
ECO design
Metal flange for optimal shielding
Compact design
V-Lock cord retaining
References
Fits to type:
4790; 4795 0104; 0104U; 1651; 1652; 1654; 4790; 4
795; VAC19KS
Alternative: version without line filter
4793; 4798
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
16 A @ Ta 40 °C / 250 VAC; 50 Hz
20 A @ Ta 40 °C / 250 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
> 2.5 kV between L-N (CX2)
> 4 kV between L-N (CX1)
> 5 kV between L/N-PE (Cy2)
voltage (1.2/50
μs)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminal 6.3 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 3 mm
(all steps with one variant)
Themoplast / steel tin-plated, black /
metallic, UL 94V-0
appliance inlet/-outlet
C20 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 16 A,
Protection Class I
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 3'000'000 h acc. to MIL-HB-217 F
Line Filter
Impulse Withstand Voltage
MTBF
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
EMC Products
1
5130
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5130
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 104884
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5130

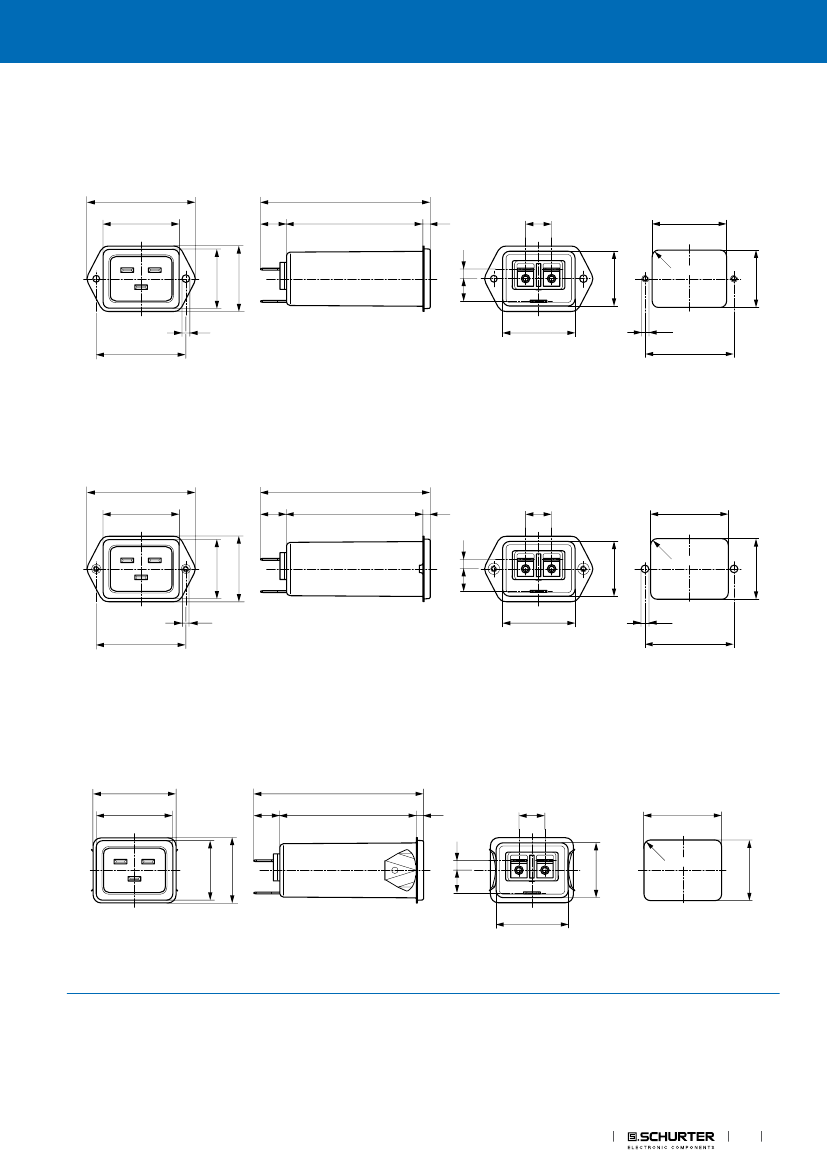

Dimension [mm]
Front or rear side mounting for screws with nuts or blind rivets
50.6
36
12
79.5
64
3.5
12
35
±0.10
4.4
30.6
10.5
25.9
28
max.R3
3.6
42
33.9
M3
42
±0.15
Rear side mounting with pre-formed, threaded holes for M3 screws
50.6
36
12
79.5
64
3.5
12
36.5
±0.1
4.4
30.6
10.5
25.9
28
max.R3
M3
42
33.9
3.6
42
±0.15
Snap-in mounting from front side
39
36
12
79.5
64
3.5
12
35
±0.10
4.4
30.6
10.5
33.9
EMC Products
25.9
28
max.R3
27
±0.10
3
28.5
±0.1
27
±0.10
5130
Technical Data of Filter-Components
Rated Current
[A]
16
20
16
20
Filter-Type
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Inductances L [mH]
2 x 0.6
2 x 0.3
2 x 0.6
2 x 0.3
Capacitance
CX [nF]
100
100
100
100
Capacitance
CY [nF]
2.2
2.2
-
-
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
R [MΩ]
1
1
1
1

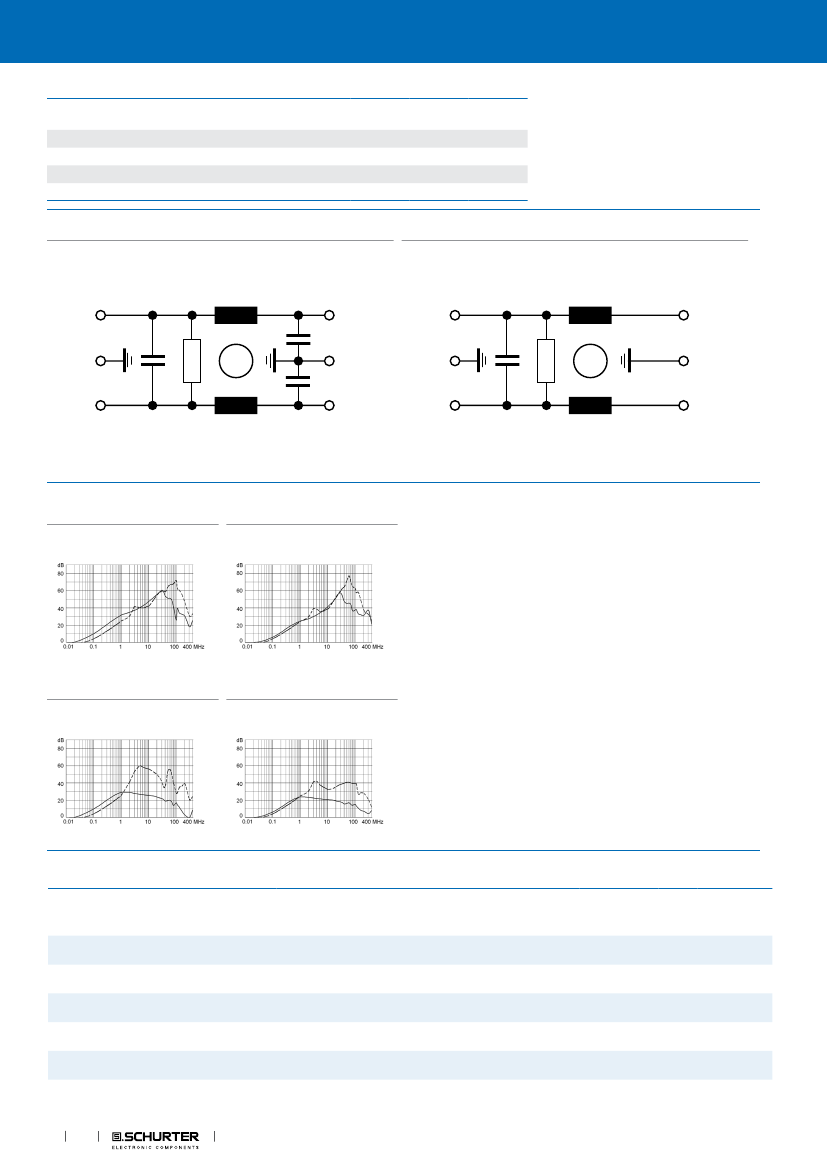

Diagrams
Standard or medical version (M80)
Medical version (M5)
L
L1
L’
R
L2
Cy
Cy
L
L1
L’
R
L2
1)
PE
Cx
PE’
2)
N’
1)
PE
Cx
PE’
2)
N’
N
1) Line
2) Load
N
1) Line
2) Load
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
16 A
20 A
Medical version (M5)
16 A
20 A
All Variants
Rated Current
IEC [A]
Rated Current Filter-Type
UL [A]
Panel mounting
Mounting side
Terminal
Capacitor
V-Lock
Order Number
16
16
16
16
16
16
16
20
16
20
16
16
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Snap-in
Snap-in
Snap-in
Snap-in
Screw-on/Rivet
Screw-on/Rivet
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
X2 100nF
X2 100nF
X1 100nF
X1 100nF
X2 100nF
X2 100nF
l
5130.2000
5130.2001
5130.2100
5130.2101
5130.0000
5130.0000.21
█
█
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5130
Mounting side
Front Side
Front Side
Front Side
Rear Side
Rear Side
Rear Side
Rear Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Rear Side
Rear Side
Rear Side
Rear Side
Terminal
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Capacitor
X2 100nF
X1 100nF
X1 100nF
X2 100nF
X2 100nF
X1 100nF
X1 100nF
X1 100nF
X2 100nF
X2 100nF
X1 100nF
X2 100nF
X2 100nF
X1 100nF
X1 100nF
X1 100nF
X2 100nF
X2 100nF
X1 100nF
X1 100nF
l
V-Lock
Order Number
5130.0001
5130.0100
5130.0101
5130.1000
5130.1001
5130.1100
5130.1101
5130.2301
5130.2200
5130.2201
5130.2300
5130.0200
5130.0201
5130.0300
5130.0300.21
5130.0301
5130.1200
5130.1201
5130.1300
5130.1301
█
█
Rated Current
IEC [A]
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
█
Most Popular.
Rated Current Filter-Type
UL [A]
20
16
20
16
20
16
20
20
16
20
16
16
20
16
16
20
16
20
16
20
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Panel mounting
Screw-on/Rivet
Screw-on/Rivet
Screw-on/Rivet
Screw
Screw
Screw
Screw
Snap-in
Snap-in
Snap-in
Snap-in
Screw-on/Rivet
Screw-on/Rivet
Screw-on/Rivet
Screw-on/Rivet
Screw-on/Rivet
Screw
Screw
Screw
Screw
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Type for screw on mounting from rear side has pre-threaded holes for M3 screws
Packaging unit
20 Pcs
EMC Products
5
京公网安备 11010802033920号
EEWORLD
