815-22-024-30-001101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 815-22-024-30-001101

815-22-024-30-001101: DescriptionHeaders u0026 Wire Housings; CategoryThe connector The connector; File Size620KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

815-22-024-30-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	815-22-024-30-001101	-	-	View	Buy Now

815-22-024-30-001101 Overview

Headers u0026 Wire Housings

815-22-024-30-001101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (100)
Contact completed and terminated	GOLD (20) OVER NICKEL (100)
Contact material	COPPER ALLOY
JESD-609 code	e4
Manufacturer's serial number	815

Preview

Download Datasheet

View All

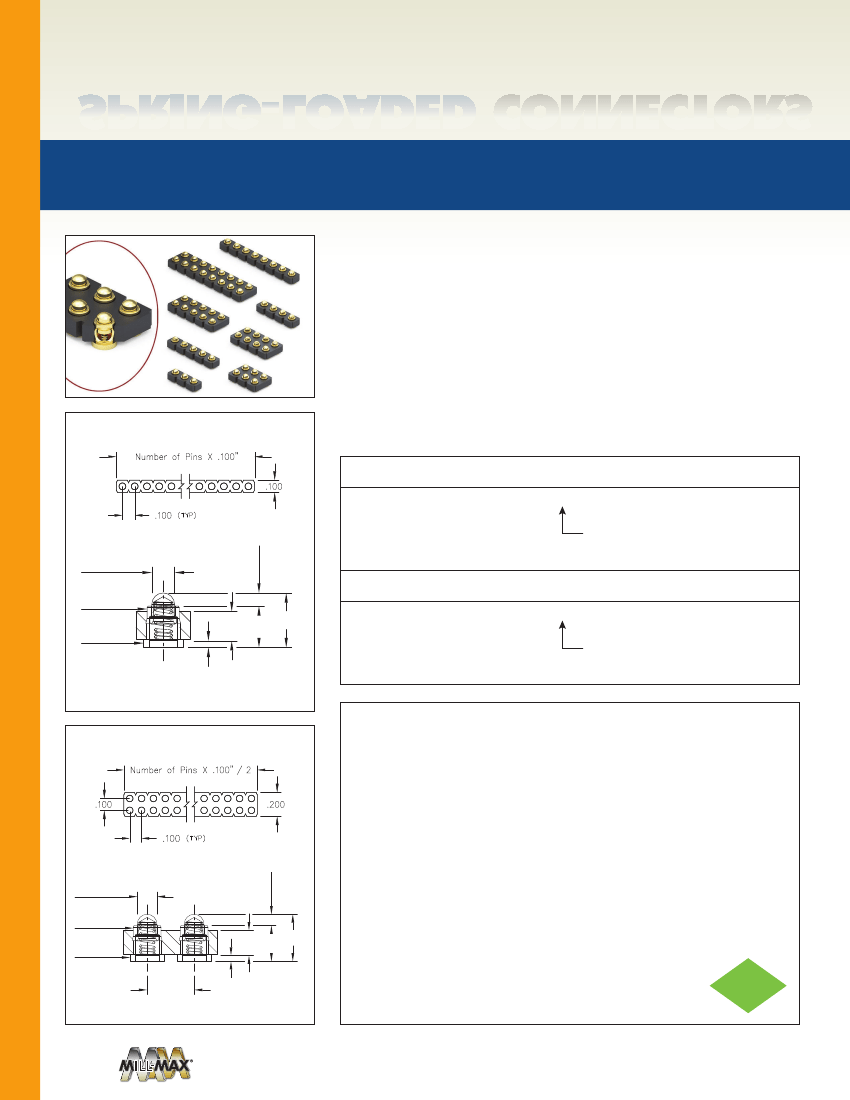

SPRING-LOADED

CONNECTORS

SERIES 815 & 817 • .100” GRID SURFACE MOUNT, ULTRA LOW PROFILE •

SINGLE AND DOUBLE ROW STRIPS

• Modular contacts for use on .100” grid, available in a height of .100”, supplied in single and

double row contact strips

• Precision-machined piston / base and gold-plated components assure up to 1,000,000

cycle life durability

• Pistons have a .012” mid. stroke and a .024” max. stroke

• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

• High temperature thermoplastic insulators are suitable for surface mount processes

• 815 & 817 series contact strips are designed for manual placement onto a .082” Ø solder

pad prior to reflow soldering

SINGLE ROW Series 815

ORDERING INFORMATION

Single Row Series 815

815-22-0XX-30-001101

Specify number of contacts

01-32

.042 DIA.

Stroke

For 815 and 817 Tape & Reel packaging, see page 12.1

.059 DIA.

.072 DIA.

.024

.050 .076

.100

Double Row Series 817

817-22-0XX-30-001101

Specify number of contacts

04-72

.016

For 815 and 817 Tape & Reel packaging, see page 12.1

DOUBLE ROW Series 817

PAGE 6 | SPRING-LOADED CONNECTORS

Materials:

Contact piston & base: Machined copper alloy plated 20μ” gold over

100μ” nickel

Spring: Beryllium copper-plated 10μ” gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (.012”): 60 grams

Durability: Up to 1,000,000 cycles

Coplanarity: .005” (Single Row up to 10 pins; Double Row up to 20 pins),

For higher pin counts, contact Technical Support

Electrical:

.100

Technical Specifications

.042 DIA.

.059 DIA.

.072 DIA.

Stroke

.024

.050 .076

.100

.016

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
