PCB terminal block - SPT 2,5/ 8-H-5,0 BK - 1704742
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 8,
Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection
direction: 0 °, Color: black
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356735216
85369010
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
14.4 mm
5.00 mm
35 mm
2.5 mm
0,8 x 0,8 mm
8.2 mm
1.1 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
SPT 2,5/..-H
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
24 A
2.5 mm²
24 A
PA
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1704742
PCB terminal block - SPT 2,5/ 8-H-5,0 BK - 1704742
Technical data
General
Solder pin surface
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Sn
V0
A3
10 mm
8
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.25 mm²
0.25 mm²
1.5 mm²
24
12
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

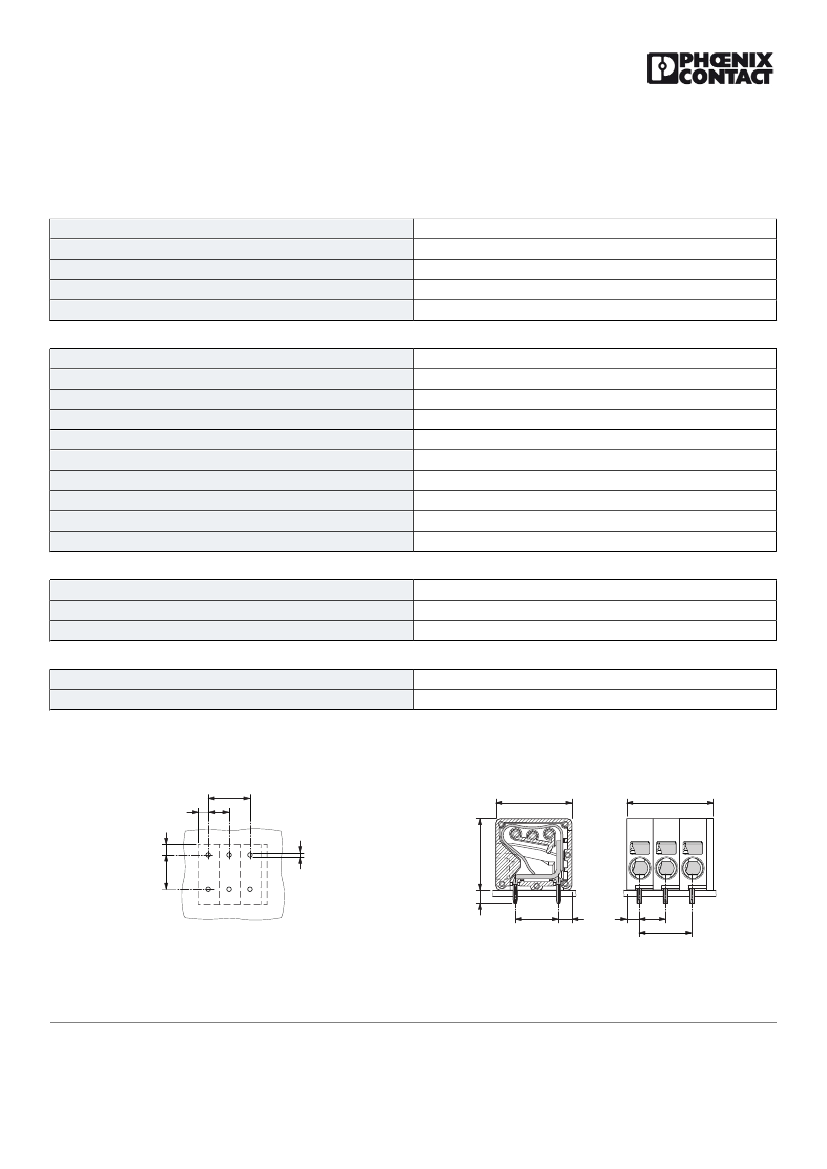

Drawings
Drilling diagram
a
2,3
5
Dimensional drawing
14,4
a+6,4
2,53
1,1
8,2
2,5
13,5
8,2
2,53
2,3
5
a
Approvals
Approvals
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1704742
PCB terminal block - SPT 2,5/ 8-H-5,0 BK - 1704742
Approvals
Approvals
UL Recognized / SEV / cUL Recognized / CCA / IECEE CB Scheme / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-12
20 A
300 V
D
24-12
10 A
300 V
SEV https://www.electrosuisse.ch/en/meta/shop/product-certificates.html IK-3150
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
2.5
24 A
250 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
24-12
20 A
300 V
D
24-12
10 A
300 V
CCA IK-2956
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
2.5
24 A
250 V
IECEE CB Scheme
mm²/AWG/kcmil
http://www.iecee.org/ CH-7429
2.5
11/14/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1704742
PCB terminal block - SPT 2,5/ 8-H-5,0 BK - 1704742
Approvals
Nominal current IN
Nominal voltage UN
24 A
250 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 4 / 4
