F
L(mm)
42.7 (Ref.)
T
A
L
W
CONFIDENTIAL
25.4
E
6.5
2014-08-29
R&D DEPT.
Cable
2

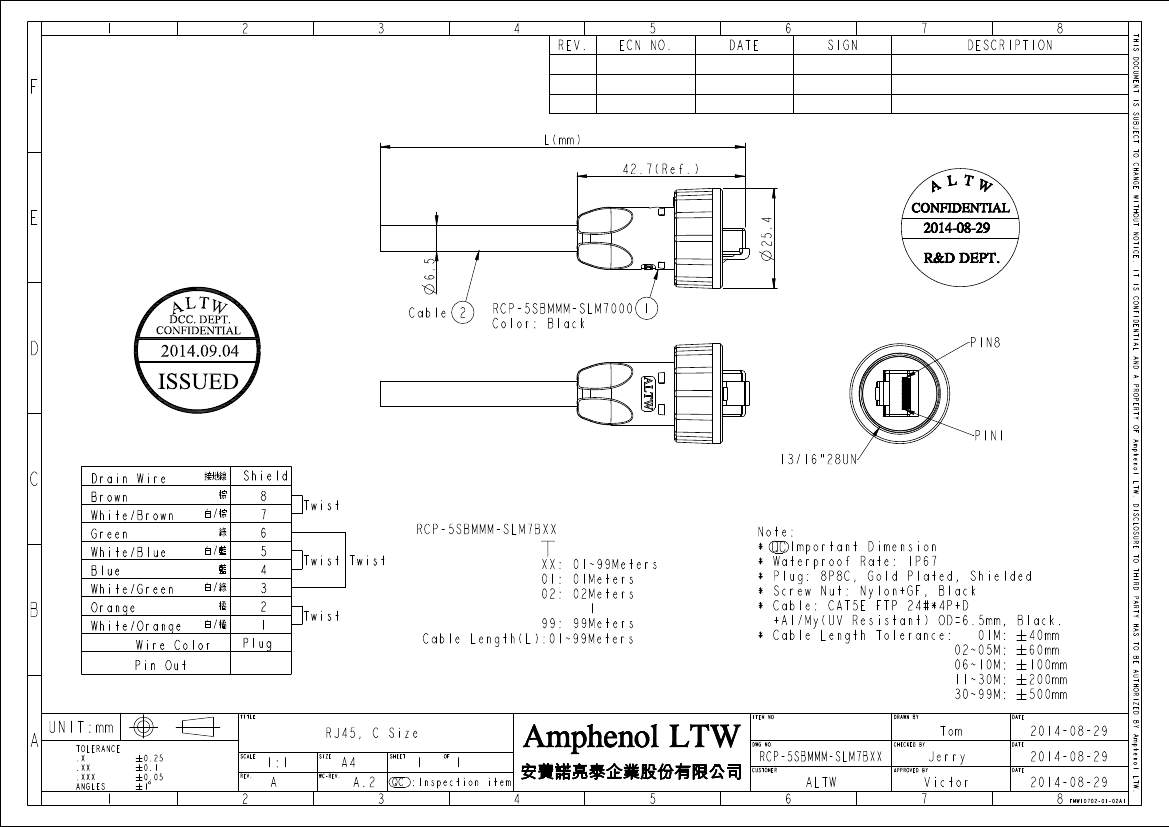

RCP-5SBMMM-SLM7000 1
Color: Black
PIN8
D
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
PIN1
13/16"28UN
C
B
Drain Wire
Brown
White/Brown
Green
White/Blue
Blue
White/Green
Orange
White/Orange
Pin Out
接地線
棕
½棕
/
綠
½藍
/
藍
½綠
/
橘
½橘
/
Shield
8
7
6
5
4
3
2
1
Plug
Twist
RCP-5SBMMM-SLM7BXX
Twist
Twist
Twist
Wire Color
XX: 01~99Meters
01: 01Meters
02: 02Meters
l
99: 99Meters
Cable Length(L):01~99Meters
Note:
*
QC
Important Dimension
* Waterproof Rate: IP67
* Plug: 8P8C, Gold Plated, Shielded
* Screw Nut: Nylon+GF, Black
* Cable: CAT5E FTP 24#*4P+D
+Al/My(UV Resistant) OD=6.5mm, Black.
* Cable Length Tolerance: 01M: # 40mm
02~05M: # 60mm
06~10M: # 100mm
11~30M: # 200mm
30~99M: # 500mm
ITEM NO
DRAWN BY
DATE
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1
TITLE
RJ45, C Size
SCALE
1:1
A
SIZE
A4
A.2
3
SHEET
1
OF
Amphenol LTW
1
4
5
Tom
DWG NO
CHECKED BY
DATE
2014-08-29
2014-08-29
DATE
Amphenol LTW.
RCP-5SBMMM-SLM7BXX
CUSTOMER
APPROVED BY
Jerry
Victor
7
REV.
WC-REV.
$
QC :Inspection item
ALTW
6
1
2
2014-08-29
8
FMW10702-01-02A1
