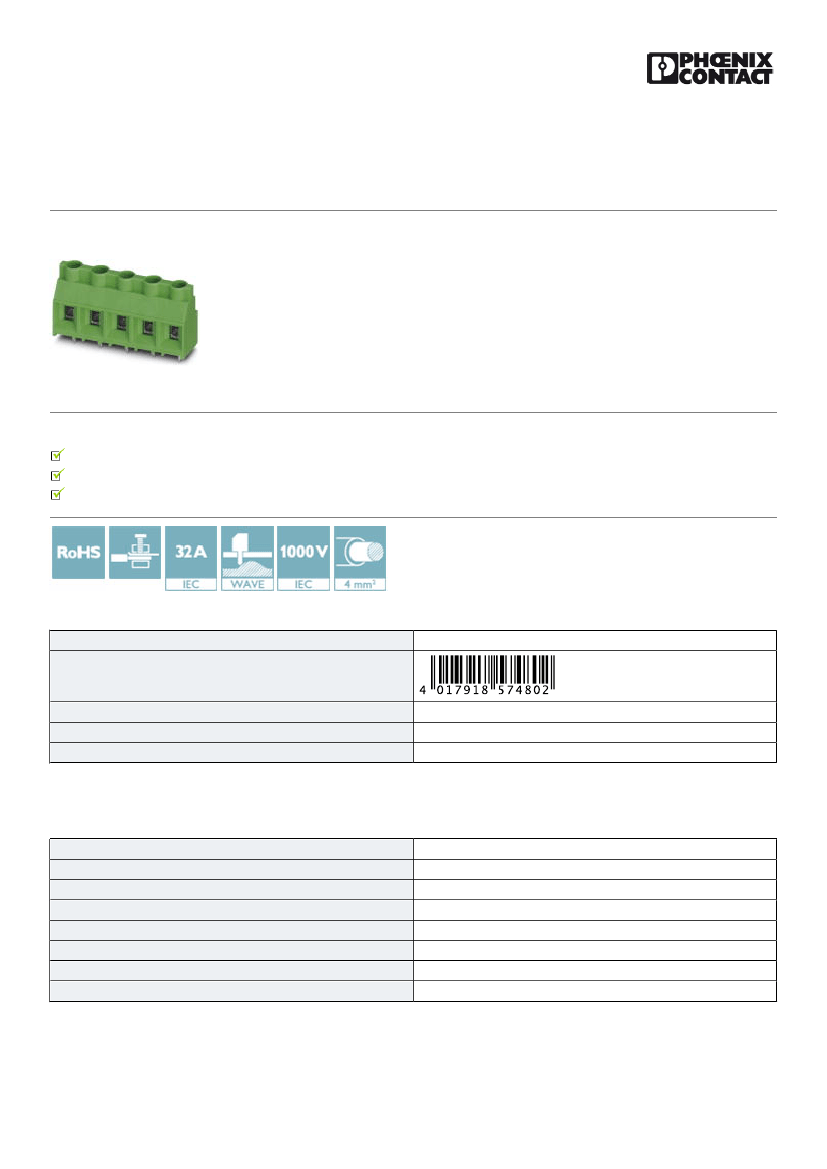

PCB terminal block - MKDS 5/10-9,5 - 1713875
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 32 A, Nom. voltage: 1000 V, Pitch: 9.52 mm, Number of positions:
10, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: green
The illustration shows the 5-pos.
version
Why buy this product
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918574802
85369010
Made to Order (non-returnable)
25 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Height
Length of the solder pin
Pin dimensions
Hole diameter
19.05 mm
9.52 mm
85.68 mm
22 mm
21.5 mm
5 mm
0,9 x 0,9 mm
1.3 mm
General
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1713875
PCB terminal block - MKDS 5/10-9,5 - 1713875
Technical data
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Solder pin surface
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
MKDS 5
6 kV
6 kV
6 kV
690 V
1000 V
1000 V
EN-VDE
32 A
4 mm²
Sn
A4
8 mm
10
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
24
10
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.75 mm²
0.5 mm²
2.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1713875
PCB terminal block - MKDS 5/10-9,5 - 1713875
Approvals
Approvals
Approvals
CSA / SEV / CCA / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
28-10
30 A
300 V
C
28-10
30 A
300 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
SEV https://www.electrosuisse.ch/en/meta/shop/product-certificates.html IK-3248
mm²/AWG/kcmil
Nominal voltage UN
6
690 V
CCA IK-3249
mm²/AWG/kcmil
Nominal voltage UN
6
690 V
EAC B.01742
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-10
30 A
300 V
C
30-10
30 A
300 V
D
30-10
5A
600 V
