AMPLIMITE* .050 Series
Insulation Displacement and
Printed Circuit Board Connectors
Application Specification
114-40029
06 MAY 09
Rev F
NOTE
i
All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and
inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2 .
Figures and illustrations are for identification only and are not drawn to scale.
_
1. INTRODUCTION
This specification covers the requirements for application of AMPLIMITE .050 Series Cable End Insulation
Displacement Connectors (IDC) and Printed Circuit (PC) Board Connectors. The connectors offers
high–density “D” mating interfaces (keystone configuration) with 1.27 x 2.54 mm [.050 x .100 in.] contact
centerlines and 20 through 120 positions. They are compatible with SCSI–2, EIA RS–232, IPI, and HIPPI
standards. Connectors are available with metal shells over plastic housings for EMI/ESD–shielded applications,
and with all–plastic housings for unshielded applications.
IDC Cable End Connectors are available with pre–assembled or unassembled termination covers, and are
designed to terminate solid or 7–strand, 30 to 28 AWG wire with an insulation diameter range of
0.74 to 0.91 mm [.029 to .036 in.]. There are connectors designed for free–hanging applications and others for
panel mount applications. Free–hanging connectors will require the use of a backshell while panel mounted
connectors do not. See Figure 1.
NOTE
IDC Feed-Through Connectors are also available. See Application Specification 114-40049.
i
PC Board Connectors are available with solder–type or ACTION PIN* (solderless) contacts tails. Those with
solder–type contacts are available as straight and right–angle single configurations, or as right–angle stacked
configurations. Those with ACTION PIN (solderless) contacts are available in straight configurations only. The
connectors are available with cast or formed metal shells for shielded applications, and with all plastic housings
for unshielded applications. All of these connectors can be mounted through a panel. Cast metal shell
connectors are designed to be used with spring latches. Connectors with formed metal shells are designed for
screwlock and jackscrew applications. See Figure 1.
Accessories such as keying inserts, attaching hardware, and backshells are covered later in this specification.
When corresponding with Tyco Electronics Personnel, use the terminology provided in this specification to
facilitate your inquiry for information. Basic terms and features of the connectors are provided in Figure 1.

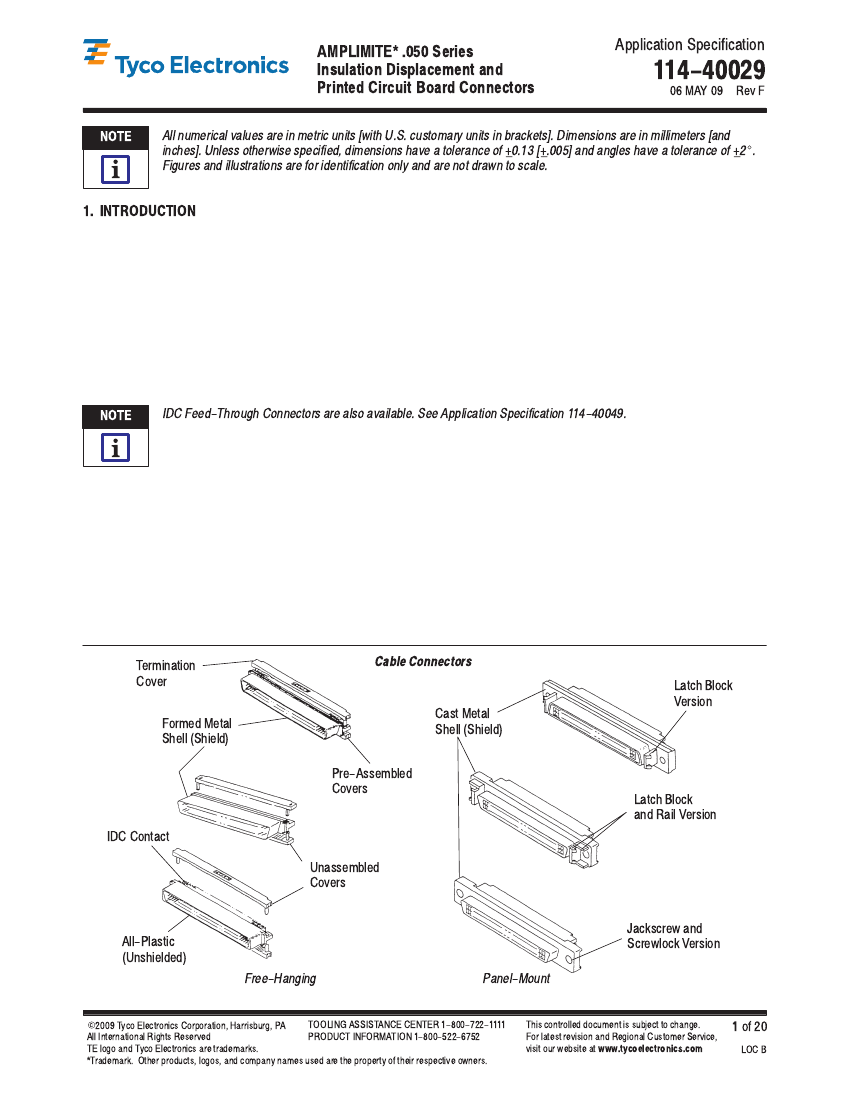

Termination
Cover
Cable Connectors
Latch Block
Version
Cast Metal
Shell (Shield)
Formed Metal
Shell (Shield)
Pre-Assembled
Covers
Latch Block
and Rail Version
IDC Contact
Unassembled
Covers
Jackscrew and
All-Plastic
(Unshielded)
Screwlock Version
Free-Hanging
Figure 1 (cont’d)
Panel-Mount
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.tycoelectronics.com
LOC B
E
2009 Tyco Electronics Corporation, Harrisburg, PA
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
1
of 20
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
AMPLIMITE .050 Series IDC and PC Board Connectors
114-40029

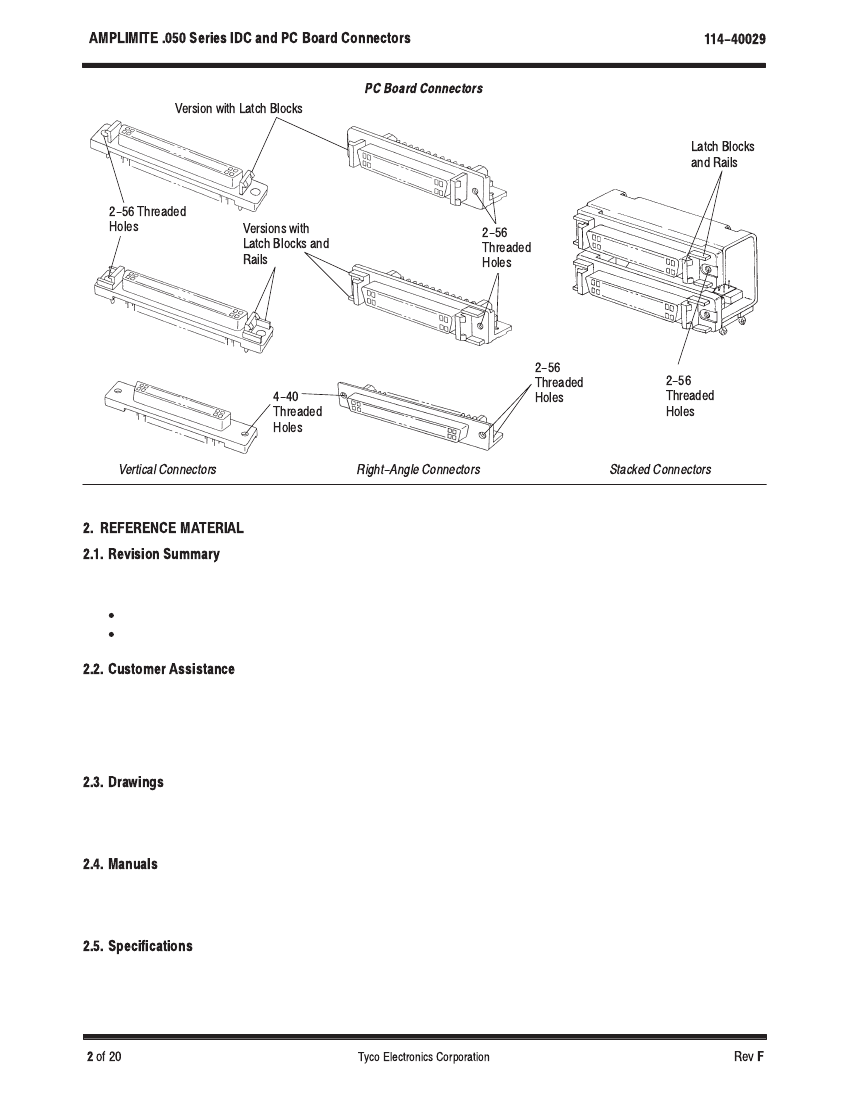

PC Board Connectors
Version with Latch Blocks
Latch Blocks
and Rails
2-56 Threaded
Holes
Versions with
Latch Blocks and
Rails
2-56
Threaded
Holes
4-40
Threaded
Holes
Vertical Connectors
Right-Angle Connectors
2-56
Threaded
Holes
2-56
Threaded
Holes
Stacked Connectors
Figure 1 (end)
2. REFERENCE MATERIAL
2.1. Revision Summary
This paragraph is reserved for a revision summary of changes and additions made to this specification. The
following changes were made for this revision.
S
Updated document to corporate requirements
S
Changed 68/68 pc board layout in Figure 13
2.2. Customer Assistance
Reference Part Number 749621 and Product Code 4620 are representative numbers of AMPLIMITE .050
Series Connectors. Use of these numbers will identify the product line and expedite your inquiries through a
service network established to help you obtain product and tooling information. Such information can be
obtained through a local Tyco Electronics Representative or, after purchase, by calling the Tooling Assistance
Center number at the bottom of page 1.
2.3. Drawings
Customer Drawings for specific products are available from the service network. The information contained in
Customer Drawings takes priority if there is a conflict with this specification or with any other technical
documentation supplied by Tyco Electronics.
2.4. Manuals
Manual 402–40 is available from the service network. This manual provides information on various flux types
and characteristics along with the commercial designation and flux removal procedures. A checklist is included
in the manual as required for information on soldering problems.
2.5. Specifications
The following list includes available Product Specifications (108–series) that cover test and performance
requirements for the connectors; and Application Specifications (114–series) that cover product design and
application requirements.
2 of 20
Tyco Electronics Corporation
Rev F
AMPLIMITE .050 Series IDC and PC Board Connectors
Document Number
108–1228
108–1228–1
114–40049
Document Title
114-40029
AMPLIMITE Shielded .050 Series Connectors
AMPLIMITE Stacked .050 Series Connectors
AMPLIMITE .050 Series Feed–Through Connectors for 0.64 mm [.025 in.] Ribbon
Cable
2.6. Instructional Material
The following list includes available instruction sheets (408–series) that provide assembly procedures for
product, operation, maintenance and repair of tooling; and customer manuals (409–series) that provide setup,
operation, and maintenance of machines.
Document Number
408–6923
408–9027
408–9200
408–9427
408–9663
408–9750
408–9757
408–9817
408–9820
408–9822
409–5791
409–5839
Document Title
Manual Arbor Frame Assembly 58024–1
Adapter Kit for Greenerd Frame Assemblies 3A and 3B
Repair Tool 58430–1 for AMPLIMITE .050 Series Connectors
AMPLIMITE .050 Series Connectors (Round–to–Flat–Cable)
Installation and Use of Mass Termination Tooling 91291–[ ]
Cover Lacing Fixture 91293–1 for AMPLIMITE .050 Series Connectors
Tooling Assembly 856371
Manual Miniature Applicator Frame Assembly 91295–1
Cover Closing and Staple Inserter Kits for AMPLIMITE .050 Series Connectors
Tooling Kit 768900–1 for CHAMPOMATOR* 2.5
CHAMPOMATOR 2.5 Terminating Machine Control Module 852423–[ ]
CHAMPOMATOR 2.5 Bench Terminating Machines 762734–3, –4
3. REQUIREMENTS
3.1. Storage
A. Ultraviolet Light
Prolonged exposure to ultraviolet light may deteriorate the chemical composition used in the connectors.
B. Shelf Life
The connectors should remain in the shipping containers until ready for use to prevent deformation to the
contacts. The connectors should be used on a first in, first out basis to avoid storage contamination that
could adversely affect signal transmissions.
C. Chemical Exposure
Do not store the connectors near any chemical listed below as they may cause corrosion stress cracking
in the contacts.
Alkalies
Amines
NOTE
Ammonia
Carbonates
Citrates
Nitrites
Phosphates Citrates
Sulfur Nitrites
Sulfur Compounds
Tartrates
Where the above environmental conditions exist, phosphor-bronze contacts are recommended if available.
i
3.2. Contact Position Assignment

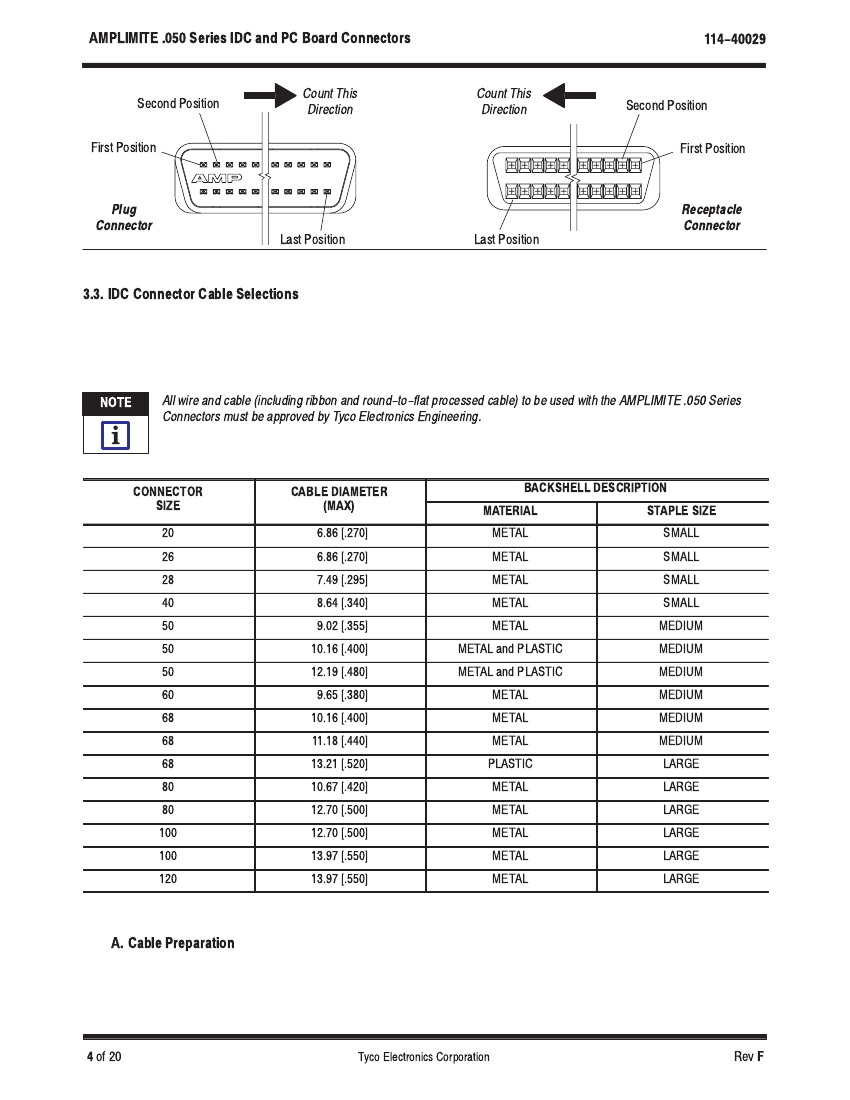

All AMPLIMITE .050 Series Connectors are marked to indicate contact position no. 1 only. Pins are numbered
in plug connectors from left to right, top row first. Sockets are numbered in receptacle connectors as a mirror
image of the plugs: right to left, top row first. Figure 2 shows typical assignments.
NOTE
The connectors in Figure 2 are viewed from the mating interface.
i
Rev F
Tyco Electronics Corporation
3 of 20
AMPLIMITE .050 Series IDC and PC Board Connectors
114-40029
Count This
Second Position
Count This
Direction
Second Position
Direction
First Position
First Position
Plug
Connector
Last Position
Last Position
Receptacle
Connector
Figure 2
3.3. IDC Connector Cable Selections
Wires used with these connectors should be 30 or 28 AWG with solid or 7–strand conductors and an insulation
range of 0.74 to 0.91 mm [.029 to .036 in.). Connector size, maximum cable diameter, backshell type, and
staple sizes are provided in Figure 3. Under certain circumstances, other wire and cable sizes may be used
with some restrictions. Consult Tyco Electronics Engineering by calling the number at the bottom of page 1.
NOTE
All wire and cable (including ribbon and round-to-flat processed cable) to be used with the AMPLIMITE .050 Series
Connectors must be approved by Tyco Electronics Engineering.
i
CONNECTOR
SIZE
S
CABLE DIAMETER
(MAX)
BACKSHELL DESCRIPTION
MATERIAL
METAL
STAPLE SIZE
SMALL
20
6.86 [.270]
26
6.86 [.270]
METAL
SMALL
28
7.49 [.295]
METAL
SMALL
40
8.64 [.340]
METAL
SMALL
50
9.02 [.355]
METAL
MEDIUM
50
10.16 [.400]
METAL and PLASTIC
MEDIUM
50
12.19 [.480]
METAL and PLASTIC
MEDIUM
60
9.65 [.380]
METAL
MEDIUM
68
10.16 [.400]
METAL
MEDIUM
68
11.18 [.440]
METAL
MEDIUM
68
13.21 [.520]
PLASTIC
LARGE
80
10.67 [.420]
METAL
LARGE
80
12.70 [.500]
METAL
LARGE
100
12.70 [.500]
METAL
LARGE
100
13.97 [.550]
METAL
LARGE
120
13.97 [.550]
METAL
LARGE
Figure 3
A. Cable Preparation
The strip length of jacketed cable will depend on the type of tooling used to terminate the wire. Refer to the
instructions packaged with the applicable tool for the proper cable jacket strip length. The only preparation
for ribbon cable is to cut it squarely.
4
of 20
Tyco Electronics Corporation
Rev
F
AMPLIMITE .050 Series IDC and PC Board Connectors
114-40029
NOTE
The braid length will vary depending on the backshell style, cable bundle size, and slack needed to assure strain relief
for all wires. Essential requirements are that the leading edge of the braid fold extends slightly beyond the beginning of
i
the shield taper and the trailing ends of the braid be trimmed so they do not extend beyond the backshell cable exit.
See Figure 4.

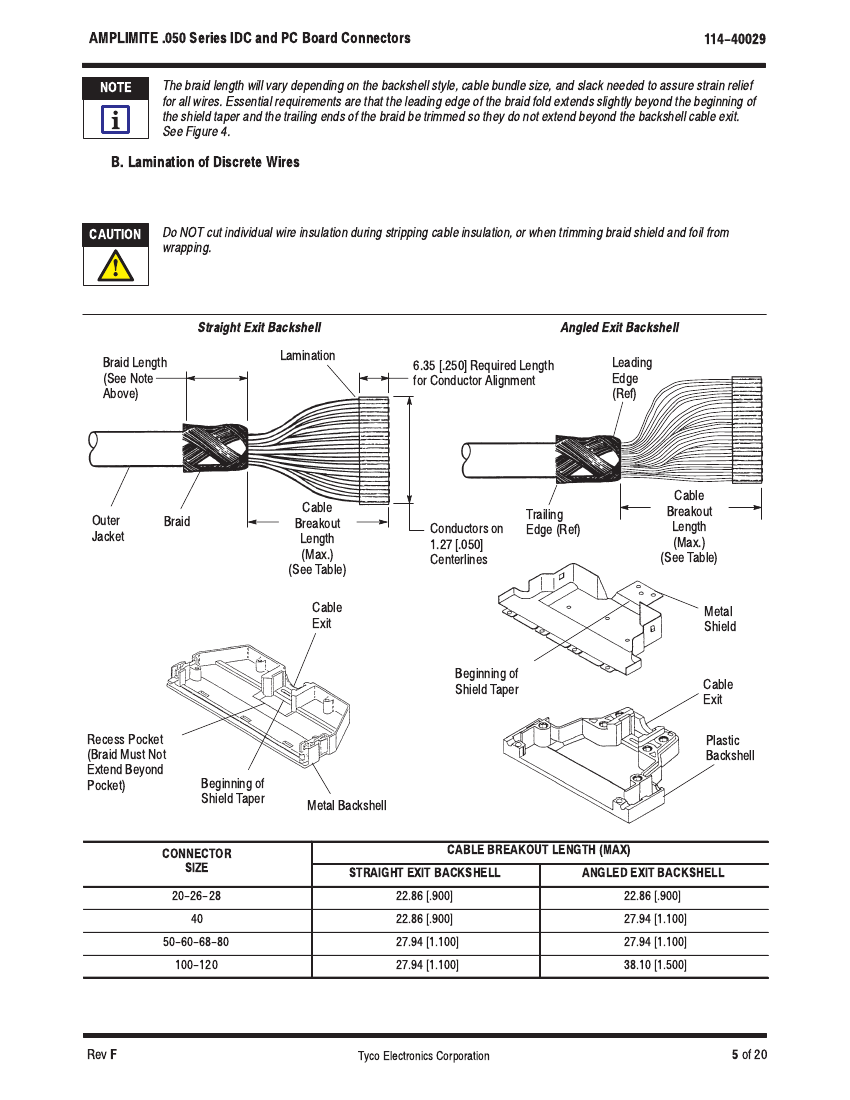

B. Lamination of Discrete Wires
Discrete wire cable may be laminated for mass termination by flattening the round bundle of wires and
applying a thin lamination over the ends of the wire as shown in Figure 4.
CAUTION
Do NOT cut individual wire insulation during stripping cable insulation, or when trimming braid shield and foil from
wrapping.
!
Straight Exit Backshell
Braid Length
(See Note
Above)
Lamination
6.35 [.250] Required Length
for Conductor Alignment
Angled Exit Backshell
Leading
Edge
(Ref)
Cable
Cable
Outer
Jacket
Braid
Breakout
Length
(Max.)
(See Table)
Conductors on
1.27 [.050]
Centerlines
Trailing
Edge (Ref)
Breakout
Length
(Max.)
(See Table)
Cable
Exit
Metal
Shield
Beginning of
Shield Taper
Cable
Exit
Recess Pocket
(Braid Must Not
Extend Beyond
Pocket)
Beginning of
Shield Taper
Metal Backshell
Plastic
Backshell
CONNECTOR
SIZE
20-26-28
40
50-60-68-80
100-120
CABLE BREAKOUT LENGTH (MAX)
STRAIGHT EXIT BACKSHELL
22.86 [.900]
22.86 [.900]
27.94 [1.100]
27.94 [1.100]
ANGLED EXIT BACKSHELL
22.86 [.900]
27.94 [1.100]
27.94 [1.100]
38.10 [1.500]
Figure 4
Rev F
Tyco Electronics Corporation
5 of 20
