MM002-08U datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MM002-08U

Preview

MM002-08U: Description3 PHASE DIODE BRIDGE; CategoryDiscrete semiconductor diode; File Size63KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MM002-08U Overview

3 PHASE DIODE BRIDGE

MM002-08U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	MODULE
package instruction	R-XUFM-X5
Contacts	5
Reach Compliance Code	compli
Shell connection	ISOLATED
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	R-XUFM-X5
JESD-609 code	e0
Maximum non-repetitive peak forward current	175 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

2830 S. Fairview St.

Santa Ana, CA 92704

PH: (714) 979-8220

FAX: (714) 966-5256

Features

•

Available in standard switching (low VF) as MM002-xx or ultrafast

switching as MM002-xxU

•

Compact and rugged construction offering weight and space savings

•

Available with PC board solderable pins (see mechanical outline below)

or threaded terminals (add “ suffix to part number, see option below)

T”

•

HPM (Hermetic Power Module)

•

Isolation voltage capability (in reference to the base) in excess of 3kV

•

Very low thermal resistance

•

Thermally matched construction provides excellent temperature and

power cycling capability

•

Additional voltage ratings or terminations available upon request

MM002-XX

SERIES

600- 800 -1000 Volts

150 Amps

80 nsec to 5

µsec

3 PHASE DIODE

BRIDGE

Maximum Ratings per leg @ 25° (unless otherwise specified)

C

PART NUMBER

Peak Repetitive Reverse Voltage, V

RRM

Peak Working Reverse Voltage, V

RWM

DC Reverse Blocking Voltage, V

R

Average Forward Current, I

O

Non-Repetitive Peak Surge Current, I

FSM

MM002-06

600 V

MM002-08

800 V

MM002-10

1000 V

MM002-XX

MM002-XXU

Operating and Storage Junction Temperature Range

Thermal resistance, junction to base

per diode

per module

50 A

350 A

200 A

-55° to

C

+175°

C

1.5°

C/W max

1°

C/W typ.

0.3°

C/W max.

50 A

350 A

175 A

-55° to

C

+175°

C

1.5°

C/W max

1°

C/W typ.

0.3°

C/W max.

50 A

350 A

175 A

-55° to

C

+175°

C

1.5°

C/W max

1°

C/W typ.

0.3°

C/W max

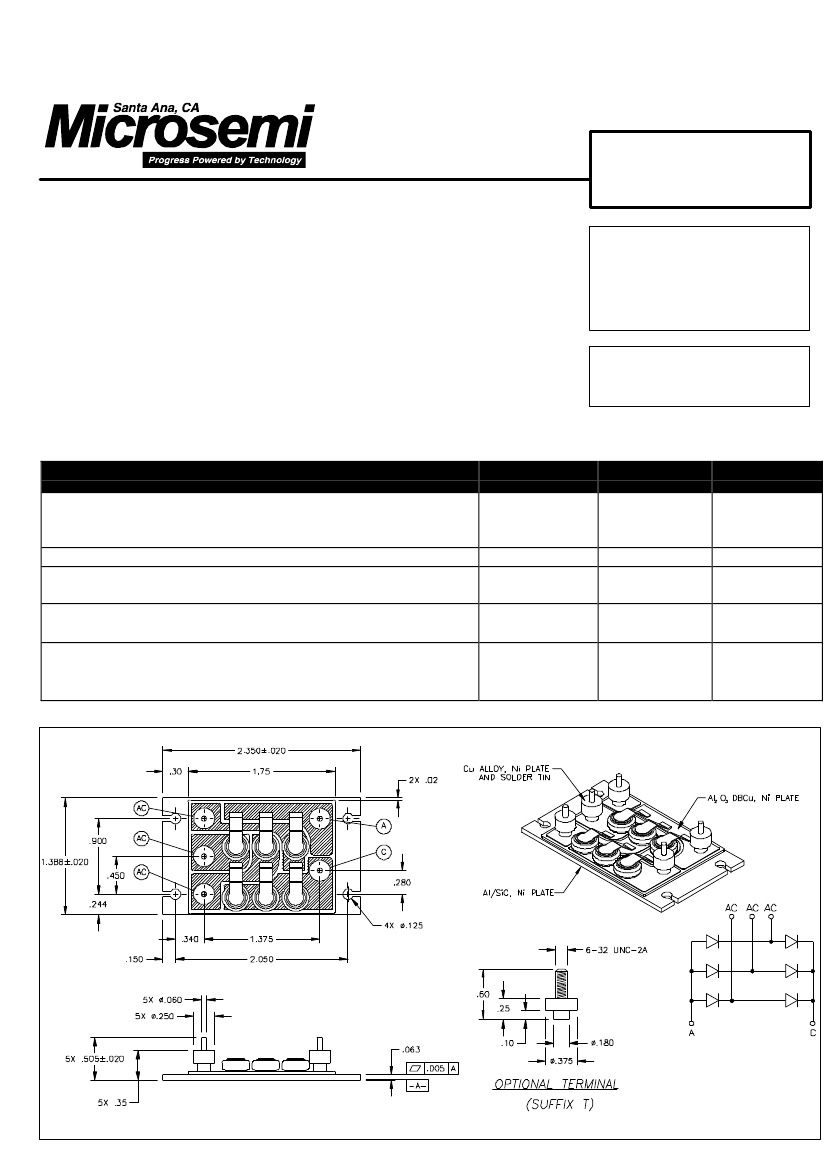

Mechanical Outline

Datasheet# MSC0325A

MM002-08U Related Products

	MM002-08U	MM002-XX	MM002-10U	MM002-10	MM002-08	MM002-06	MM002-06U
Description	3 PHASE DIODE BRIDGE	3 PHASE DIODE BRIDGE	3 PHASE DIODE BRIDGE	3 PHASE DIODE BRIDGE	3 PHASE DIODE BRIDGE	3 PHASE DIODE BRIDGE	3 PHASE DIODE BRIDGE
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	MODULE	-	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	R-XUFM-X5	-	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5
Contacts	5	-	5	5	5	5	5
Reach Compliance Code	compli	-	compli	compli	compli	compli	compli
Shell connection	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 6 ELEMENTS	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	-	3 V	2.1 V	1.5 V	1.5 V	1.7 V
JESD-30 code	R-XUFM-X5	-	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5	R-XUFM-X5
JESD-609 code	e0	-	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	175 A	-	175 A	350 A	350 A	350 A	200 A
Number of components	6	-	6	6	6	6	6
Phase	3	-	3	3	3	3	3
Number of terminals	5	-	5	5	5	5	5
Maximum operating temperature	175 °C	-	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	50 A	-	50 A	50 A	50 A	50 A	50 A
Package body material	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	-	1000 V	1000 V	800 V	600 V	600 V
surface mount	NO	-	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	-	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	-	1	1	1	1	1
