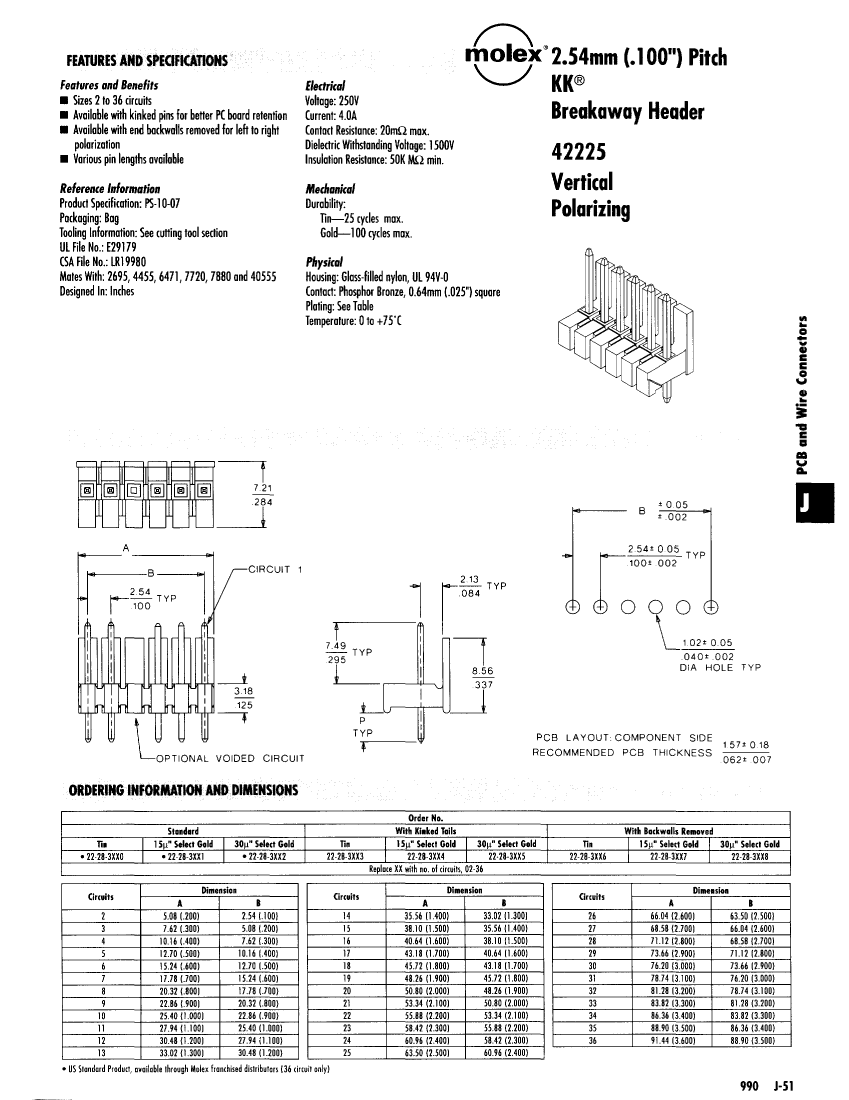

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Other features | POLARIZED |
| body width | 0.284 inch |
| subject depth | 0.337 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 50000000000 Ω |
| insulator material | GLASS FILLED NYLON |
| MIL compliance | NO |
| Manufacturer's serial number | 42225 |
| Plug contact pitch | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 30u inch |
| polarization key | ENDS |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 2 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 22-28-3028 | 22-28-3026 | 22-28-3027 | |
|---|---|---|---|
| Description | Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | POLARIZED | POLARIZED | POLARIZED |
| body width | 0.284 inch | 0.284 inch | 0.284 inch |
| subject depth | 0.337 inch | 0.337 inch | 0.337 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU | SN | AU |
| Contact point gender | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | 25 Cycles | 25 Cycles | 25 Cycles |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| Insulation resistance | 50000000000 Ω | 50000000000 Ω | 50000000000 Ω |
| insulator material | GLASS FILLED NYLON | GLASS FILLED NYLON | GLASS FILLED NYLON |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 42225 | 42225 | 42225 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| polarization key | ENDS | ENDS | ENDS |
| Guideline | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 2 | 2 | 2 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 |
| Plating thickness | 30u inch | - | 15u inch |
