87925-3000: DescriptionBoard to Board u0026 Mezzanine Connectors Pwr Rcpt Vt PF .76Au Vt PF .76AuLF 33Ckt; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87925-3000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87925-3000	-	-	View	Buy Now

87925-3000 Overview

Board to Board u0026 Mezzanine Connectors Pwr Rcpt Vt PF .76Au Vt PF .76AuLF 33Ckt

87925-3000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.476 inch
subject depth	0.67 inch
body length	3.575 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Dielectric withstand voltage	2500VAC V
Durability	100 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	87925
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Plating thickness	30u inch
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	PRESS FIT

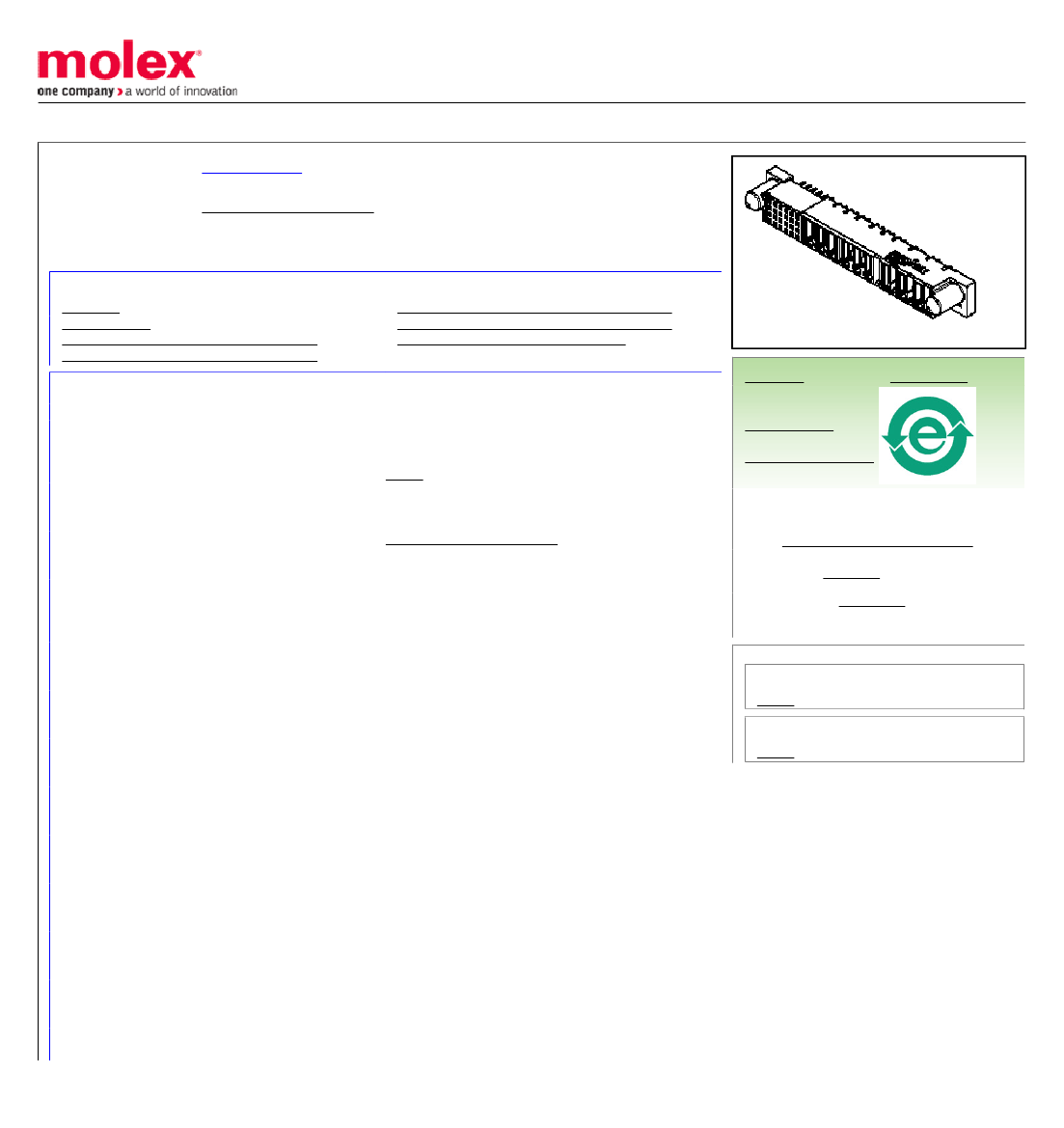

Preview

Download Datasheet

View All

This document was generated on 01/21/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87925-3000

Active

EXTreme PowerPlus™ (SSI)

6.35mm Pitch, Power, 2.54mm Pitch, Signal, EXTreme PowerPlus™ Pa-S Receptacle,

Press-fit, Vertical, 0.76µm Gold (Au)Plating, 33 Circuits, Power Alpha 9, Signal 24,

Recessed Power Pins A1, A2, A3, A4, A5, A6, A8, A9, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87633-006 (PDF)

Product Specification PS-87925-006 (PDF)

Application Specification AS-87631-018 (PDF)

Application Specification AS-87633-007 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

Agency Certification

E29179

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

PCB Receptacles

87925

Board-to-Board, Power

Recessed Power Circuit Position: A1, A2, A3, A4, A5,

A6, A8, A9

EXTreme PowerPlus™ (SSI)

EXTreme PowerPlus™

822348745326

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

(p)ower-(s)ignal Configuration

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

9p - 24s

Black

100

94V-0

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

18.036/g

Vertical

3.43mm

Yes

2.40mm

Tray

2.54mm, 6.35mm

0.762µm

2.540µm

Yes

-20°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

87925Series

Mates With

87696 EXTreme PowerPlus™ Pa-S Header

Recommended Resources
