ROHS COMPLIANT

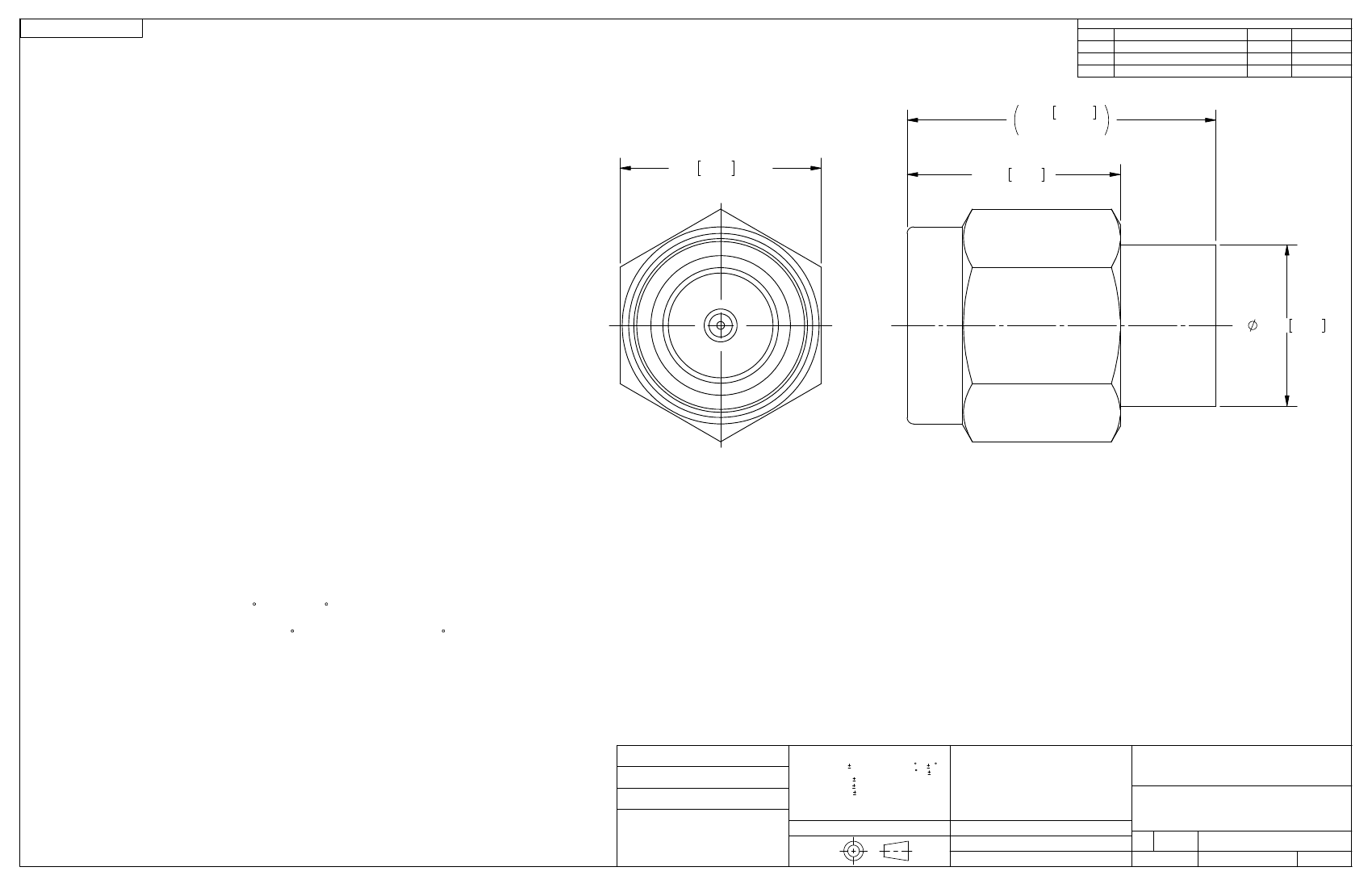

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
E
DCN 39397
09/12
STW
.520 13.21
REF. ONLY
MATERIAL:
.312 7.92 HEX.
BODY,
PRESS CAP &
COUPLING NUT:
LOCK RING:
CONTACT,
INSERT &
END CAP
INSULATOR:
GASKET:
RESISTOR ELEMENT:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
PHOSPHOR BRONZE
.330 8.38
BRASS PER ASTM B16, ALLOY UNS No. C36000
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER
A-A-59588,
CLASS 2B, GRADE 60/70
ALUMINA SUBSTRATE WITH
NICHROME RESISTOR
.250 6.35
FINISH:
BODY,
PRESS CAP &
COUPLING NUT:
CONTACT:
PASSIVATED PER AMS-2700
.000050" MIN GOLD OVER .000100" MIN NICKEL
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
OPERATING TEMP.:
AVG. POWER:
PEAK POWER:
CONNECTOR
DURABILITY:
ENGAGEMENT/
DISENGAGEMENT:
50 OHMS
DC TO 18.0 GHz
1.05 + .010f(GHz), DC TO 18.0 GHz
-55 C TO +125 C
1 WATT (POWER INPUT DERATED LINEARLY
FROM 25 C TO .5 WATTS AT 125 C)
50 WATTS (PEAK POWER FOR A DUTY CYCLE
OF 5 X10-4 MAXIMUM PULSE DURATION OF
5 MICROSECONDS)
500 CYCLES
2.0 IN-LBS
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
BRT 12/05/03
STW 06/30/11
BRT 12/05/03
SMA PLUG
TERMINATION
95077
SIZE CAGE CODE DWG. NO.
B
SF8018-6005
SHEET 1 OF 1
SCALE: 8:1
