SMCJ5.0(C)A - SMCJ170(C)A
SMCJ5.0(C)A - SMCJ170(C)A
Features
•
•
•
•
•
Glass passivated junction.
1500 W Peak Pulse Power capability
on 10/1000
µs
waveform.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time; typically less
than 1.0 ps from 0 volts to BV for
unidirectional and 5.0 ns for
bidirectional.
Typical I
R
less than 1.0
µA
above 10V.
0.124 (3.150)
0.108 (2.743)
0.280 (7.112)
0.260 (6.604)
2
1
0.245 (6.223)
0.220 (5.588)
0.320 (8.128)
0.305 (7.747)
SMC/DO-214AB
COLOR BAND DENOTES CATHODE
ON UNIDIRECTIONAL DEVICES ONLY.
NO COLOR BAND ON BIDIRECTIONAL
DEVICES.
0.060 (1.524)
0.030 (0.762)
0.008 (0.203)
0.004 (0.102)
0.103 (2.616)
0.079 (2.007)
•
0.012 (0.305)
0.006 (0.152)
DEVICES FOR BIPOLAR APPLICATIONS
- Bidirectional types use CA suffix.
- Electrical Characteristics apply in both directions.
1500 Watt Transient Voltage Suppressors
Absolute Maximum Ratings*
Symbol
P
PPM
I
PPM
i
f(surge)
T
stg
T
J
T
A
= 25°C unless otherwise noted
Parameter
Peak Pulse Power Dissipation on 10/1000
µs
waveform
Peak Pulse Current on 10/1000
µs
waveform
Peak Forward Surge Current
superimposed on rated load (JEDEC method)
Storage Temperature Range
Operating Junction Temperature
(Note 1)
Value
minimum 1500
see table
200
-55 to +150
-55 to +150
Units
W
A
A
°C
°C
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Note 1:
Measured on 8.3 ms single half-sine wave or equivalent square wave; Duty cycle = 4 pulses per minute maximum.
2000
Fairchild Semiconductor International
SMCJ5.0(C)A-SMCJ170(C)A, Rev. B1
SMCJ5.0(C)A - SMCJ170(C)A
Transient Voltage Supressors
(continued)
Electrical Characteristics
Uni-directional
Bi-directional (C)
Device
Part
Marking
Reverse
Stand-off Voltage
V
RWM
(V)
T
A
= 25°C unless otherwise noted
Breakdown Voltage
V
BR
(V)
min
max
Test
Current
I
T
(mA)
Max Clamping
Voltage @IPPM
V
C
(V)
Max Peak Pulse
Surge Current
I
PPM
(A)
Max Reverse
Leakage V
RWM
I
R
(uA)*
SMCJ5.0(C)A
SMCJ6.0(C)A
SMCJ6.5(C)A
SMCJ7.0(C)A
SMCJ7.5(C)A
SMCJ8.0(C)A
SMCJ8.5(C)A
SMCJ9.0(C)A
SMCJ10(C)A
SMCJ11(C)A
SMCJ12(C)A
SMCJ13(C)A
SMCJ14(C)A
SMCJ15(C)A
SMCJ16(C)A
SMCJ17(C)A
SMCJ18(C)A
SMCJ20(C)A
SMCJ22(C)A
SMCJ24(C)A
SMCJ26(C)A
SMCJ28(C)A
SMCJ30(C)A
SMCJ33(C)A
SMCJ36(C)A
SMCJ40(C)A
SMCJ43(C)A
SMCJ45(C)A
SMCJ48(C)A
SMCJ51(C)A
SMCJ54(C)A
SMCJ58(C)A
SMCJ60(C)A
SMCJ64(C)A
SMCJ70(C)A
SMCJ75(C)A
SMCJ78(C)A
SMCJ85(C)A
SMCJ90(C)A
SMCJ100(C)A
SMCJ110(C)A
SMCJ120(C)A
SMCJ130(C)A
SMCJ150(C)A
SMCJ160(C)A
SMCJ170(C)A
GDE(BDE)
GDG(BDG)
GDK(BDK)
GDM(BDM)
GDP(BDP)
GDR(BDR)
GDT(BDT)
GDV(BDV)
GDX(BDX)
GDZ(BDZ)
GEE(BEE)
GEG(BEG)
GEK(BEK)
GEM(BEM)
GEP(BEP)
GER(BER)
GET(BET)
GEV(BEV)
GEX(BEX)
GEZ(BEZ)
GFE(BFE)
GFG(BFG)
GFK(BFK)
GFM(BFM)
GFP(BFP)
GFR(BFR)
GFT(BFT)
GFV(BFV)
GFX(BFX)
GFZ(BFZ)
GGE(BGE)
GGG(BGG)
GGK(BGK)
GGM(BGM)
GGP(BGP)
GGR(BGR)
GGT(BGT)
GGV(BGV)
GGX(BGX)
GGZ(BGZ)
GHE(BHE)
GHG(BHG)
GHK(BHK)
GHM(BHM)
GHP(BHP)
GHR(BHR)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100.0
111.0
122.0
133.0
144.0
167.0
178.0
189.0
7.0
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104.0
111.1
123.0
135.0
147.0
159.0
185.0
197.0
209.0
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
163.0
145.6
133.9
125.0
116.3
110.3
104.2
97.4
88.2
82.4
75.3
69.8
64.7
61.5
57.7
54.3
51.4
46.3
42.3
38.6
35.6
33.0
31.0
28.1
25.8
23.3
21.6
20.6
19.4
18.2
17.2
16.0
15.5
14.6
13.3
12.4
11.9
10.9
10.3
9.3
8.5
7.8
7.2
6.2
5.8
5.5
1000
1000
500
200
100
50
20
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
* For bidirectional parts with V
RWM
<10V, the I
R
max limit is doubled.
SMCJ5.0(C)A-SMCJ170(C)A, Rev. B1
SMCJ5.0(C)A - SMCJ170(C)A
Transient Voltage Supressors
(continued)
Typical Characteristics
Peak Pulse Power Rating Curve
100
100
Pulse Derating Curve
PULSE POWER (kW)
T
A
= 25
º
C
10
PULSE POWER (%)
75
50
1
25
0.1
0.0001
0
0.001
0.01
0.1
PULSE WIDTH (ms)
1
10
0
25
50
75
100 125 150 175
AMBIENT TEMPERATURE (
º
C)
200
Pulse Waveform
150
PEAK PULSE CURRENT (%)
tf = 10µsec
Peak Value
Ippm
T
A
= 25
º
C
Pulse Width (td) is Defined
as the Point Where the Peak
Current Decays to 50% of Ipp
Junction Capacitance
20000
10000
CAPACITANCE (pF)
T
A
= 25
º
C
f = 1.0 MHz
Visg = 50m Vp-p
Measured at
Zero Bias
100
1000
Measured at
Stand-Off
Voltage (V mw)
Half Value-Ipp
2
50
10/1000µsec Waveform
as Defined by R.E.A.
e-kt
td
100
0
0
1
2
TIME (ms)
3
4
10
1
5
10
50 100 200 400
REVERSE VOLTAGE (V)
Non-Repetitive Surge Current
200
FORWARD SURGE CURRENT (A)
T
A
= T
A
max
8.3ms Single Half Sine-Wave
JEDEC Method
100
50
20
10
1
2
5
10
20
50
NUMBER OF CYCLES AT 60Hz
100
SMCJ5.0(C)A-SMCJ170(C)A, Rev. B1

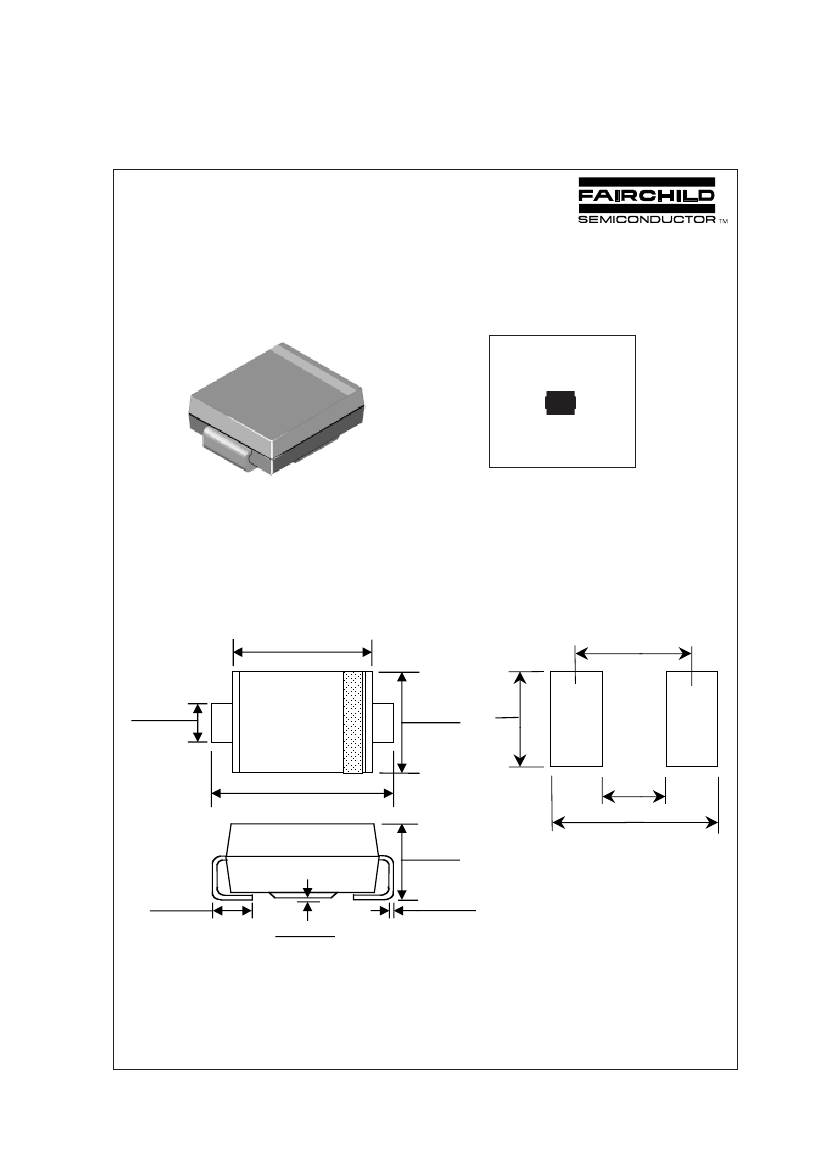

SMC/DO-214AB Package Dimensions
SMC/DO-214AB (FS PKG Code P7)
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.21
0.280 (7.112)
0.260 (6.604)
6.18
5.98
0.128 (3.25)
0.108 (2.743)
2
1
0.245 (6.223)
0.220 (5.588)
3.27
3.07
+
4.69
4.49
7.67
7.47
0.320 (8.128)
0.305 (7.747)
0.103 (2.616)
0.079 (2.007)
Minimum Recommended
Land Pattern
0.060 (1.524)
0.030 (0.762)
0.008 (0.203)
0.002 (0.51)
0.012 (0.305)
0.006 (0.152)
August 1999, Rev. A
