310GS001NF15: DescriptionCircular MIL Spec Strain Reliefs u0026 Adapters SHRINK BOOT ADAPTER ROTATE COUP STRAIGHT; CategoryThe connector Connector bracket; File Size197KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

310GS001NF15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	310GS001NF15	-	-	View	Buy Now

310GS001NF15 Overview

Circular MIL Spec Strain Reliefs u0026 Adapters SHRINK BOOT ADAPTER ROTATE COUP STRAIGHT

310GS001NF15 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	310-001
Base Number Matches	1

Preview

Download Datasheet

View All

RJ45 AND USB 2.0

Contacts, Tools, and Accessories

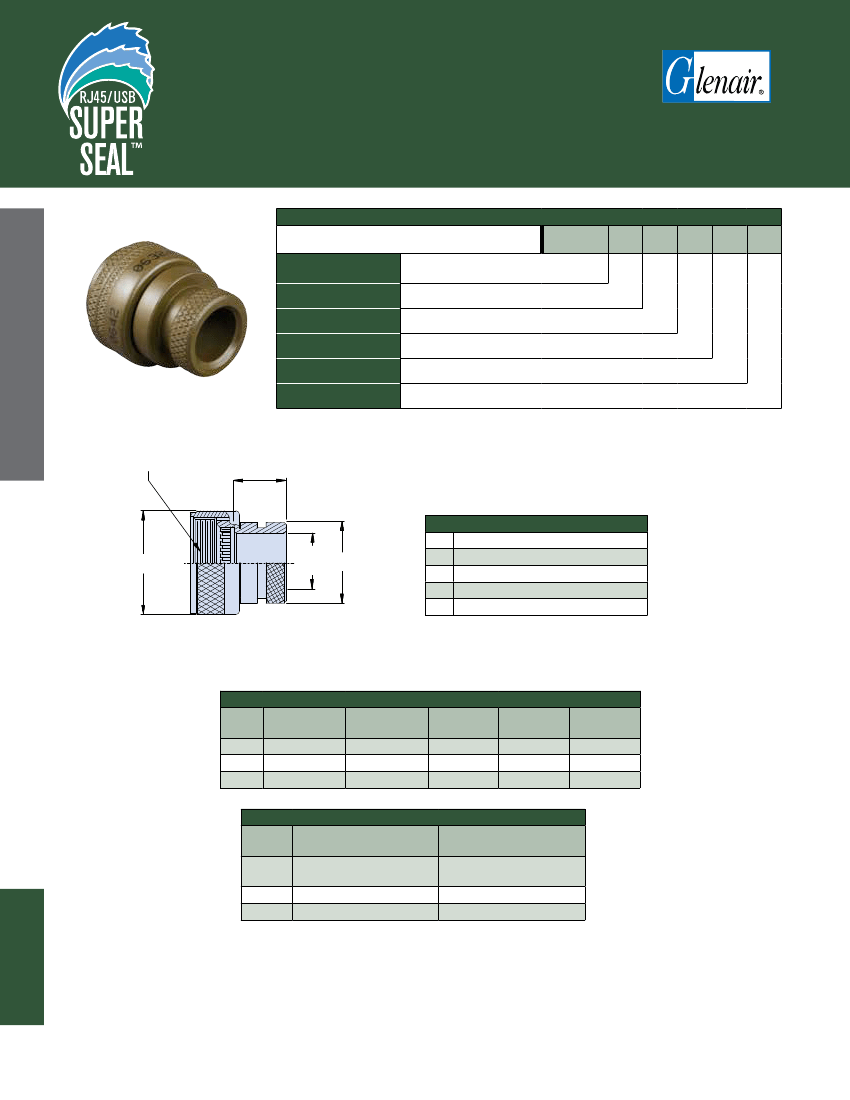

310-001 Shrink Boot Adapter with Rotatable Coupling

for 28840 Type Connectors

How To Order

Sample Part Number

Series/Basic Part No.

Connector Designator

Angular Function

Basic Part No.

Finish

Shell Size

310

- Shrink Boot Adapter

G

= 28840

S

= Straight

001

See Material and Finish Table

15, 17, 19

310

G

S

001

M

17

M

M-16

MIL-DTL-28840 Type

A Thread

F

C Typ

Shell

Size

15

17

19

Shell

Size

15

17

19

For 45° and 90° versions contact factory

G

J

X Dia.

Min.

E

NF

M

Materials and Finishes

Aluminum/ Cadmium olive drab

Aluminum/ Electroless nickel

MT

Aluminum/ Nickel PTFE

ZR

Aluminum/ Zinc-nickel black

Z1

Stainless Steel/ Passivate

H

K

Dimensions

A Thread

M22 X 1 -- 6H

M25 X 1 -- 6H

M28 X 1 -- 6H

C Typ

1.07 (27.2)

1.21 (30.7)

1.36 (34.5)

E Max

.838 (21.3)

.963 (24.5)

1.042 (26.5)

F Max

.940 (23.9)

X Dia. Min.

.565 (14.4)

.690 (17.5)

.769 (19.5)

Recommnded Shrink Boot*

Shrink Boot with Low Temp

Adhesive

770-028S904

Lipless boot

770-028S906

Shrink Boot without Low

Temp Adhesive

770-028S904U

Lipless boot

770-028S906U

* Shrink Boot

MUST

be ordered seperately.

Shrink boot material: compound 2013 low temperature

polyolefin.

Dimensions in Inches (millimeters) are subject to change without notice.
