Panel feed-through terminal block - SDKK 6/ 8 OBEN NZ:M5-
A1 - 3006454
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel feed-through terminal block, Connection method: Screw/plug-in connection, Cross section: 0.2
mm² - 10 mm², AWG: 24 - 8, Width: 11.4 mm, Height: 58.7 mm, Color: gray, Mounting type: Wall mounting

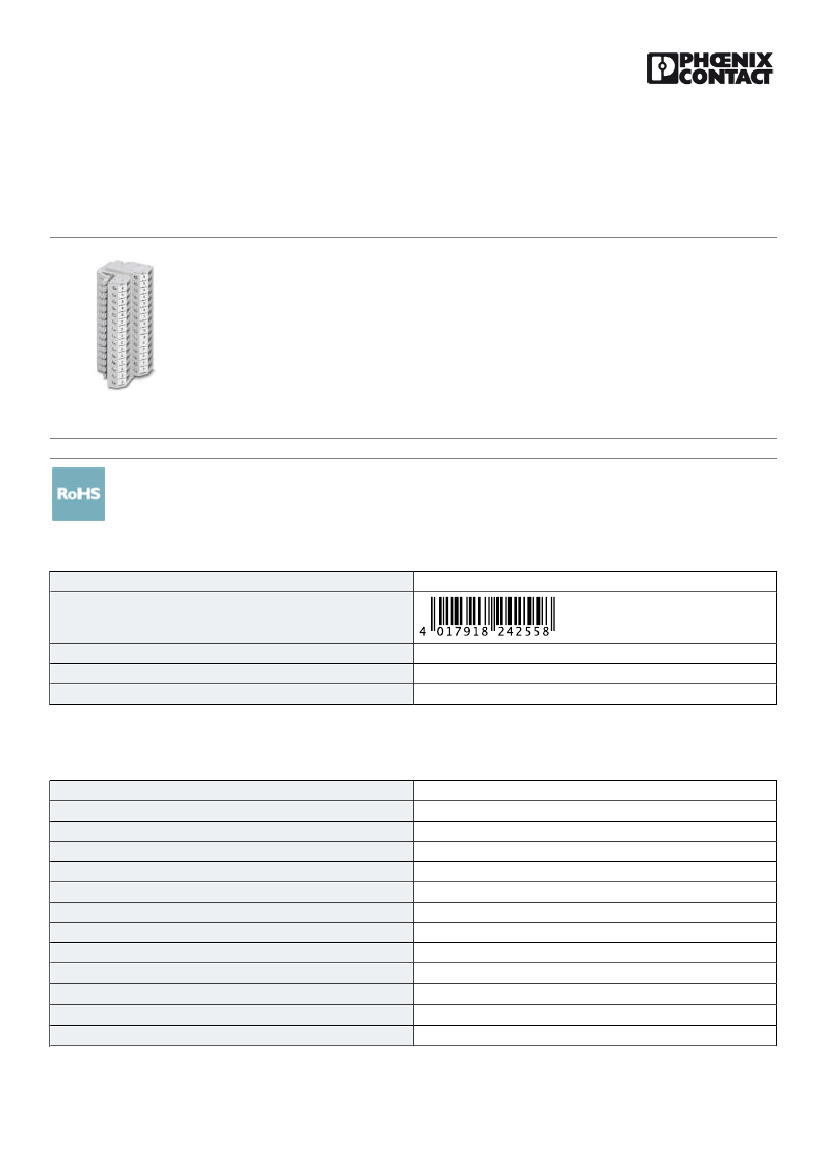

The figure shows a version of the
article
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918242558
85369010
Made to Order (non-returnable)
5 STK
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
1
16
gray
PA
V0
8 kV
3
III
I
57 A (with 10 mm² conductor cross section)
41 A
800 V
Yes
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/3006454
Panel feed-through terminal block - SDKK 6/ 8 OBEN NZ:M5-
A1 - 3006454
Technical data
Dimensions
Width
End cover width
Length
Height
Pitch
11.4 mm
2.5 mm
60 mm
58.7 mm
7.62 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Screw/plug-in connection
IEC 60947-7-1
0.2 mm²
10 mm²
24
8
0.2 mm²
6 mm²
24
12
0.25 mm²
0.25 mm²
6 mm²
10 mm
A5
M4
1.5 Nm
1.8 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/3006454
Panel feed-through terminal block - SDKK 6/ 8 OBEN NZ:M5-
A1 - 3006454
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
24-8
26 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
24-8
26 A
600 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 3 / 3
