334203 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 334203

334203: DescriptionSchottky Diodes u0026 Rectifiers 3A 40V; CategoryThe connector The connector; File Size40KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

334203 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	334203	-	-	View	Buy Now

334203 Overview

Schottky Diodes u0026 Rectifiers 3A 40V

334203 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	DIN 41612 Connectors 48P 3MM MALE SOLDER TYPE F 1C
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.583 inch
subject depth	0.866 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1550VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	1.5568 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYCARBONATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	334203
Plug contact pitch	0.2 inch
Match contact row spacing	0.15 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	D,B,Z
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

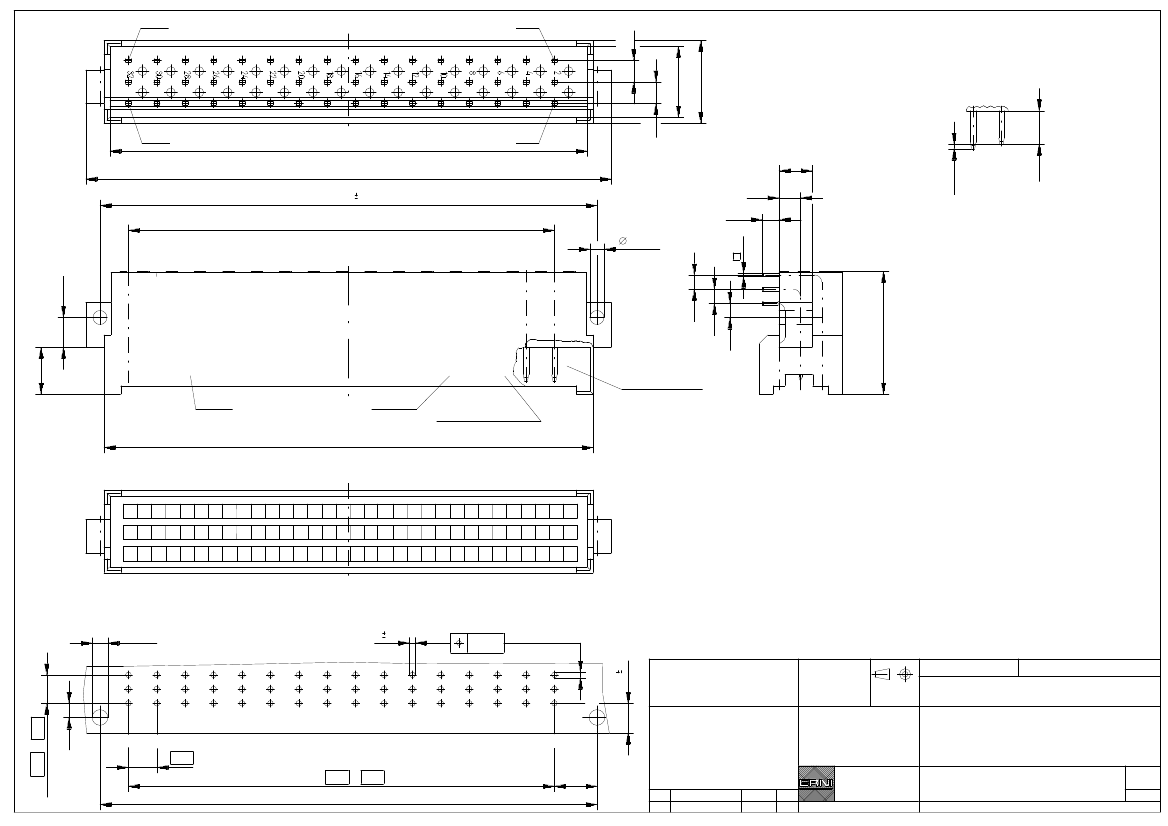

d32

3,81

Stecklänge /

+0,1

mating length

14,8

-0,2

12,7

z32

85,4

+0,2

3,81

88,9

15 x 5,08 =

0,1

3,85

-0,4

2,5

76,2

+0,1

E = early mate, late break

S = standard

0,8

/ voreilend

2:1

max. 94

5,3

+0,1

2,54

0,6

-0,2

8,4

XXXX

Datum

date

ERNI

Ident-Nr.

334203

Stecklänge

mating length

2,54

Anforderungsstufe

class

87,5

Bestückungsplan /

contact layout

Lötanschluß 0.6 x 0.6 mm /

solder terminal 0.6 x 0.6 mm

PC GF30

Isolierwerkstoff /

Bauart 3 /

type 3

housing material :

Anforderungsstufe 1 = 500 Steckzyklen /

performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2

Leiterplatten-Lochbild /

2,8

+0,1

PCB drillhole pattern

0,1

0,05

alle Löcher/

all holes

0,1

Information:

Tolerances

All Dimensions

in mm

Consider protection memo from DIN 34

5,3

Scale

2 x 2.54 = 5,08

5,08

15 x 5,08 = 76,2

88,9

7,62

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

+0,5

2,54

Messerleiste F 48 Löt

Male Connector F 48 Solder

www.ERNI.com

Index

08.09.2006

Date

H:00059595.SZA

334203

STVF

+0,2
