Plug - PP-H 1,5/S/6 - 3212552
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

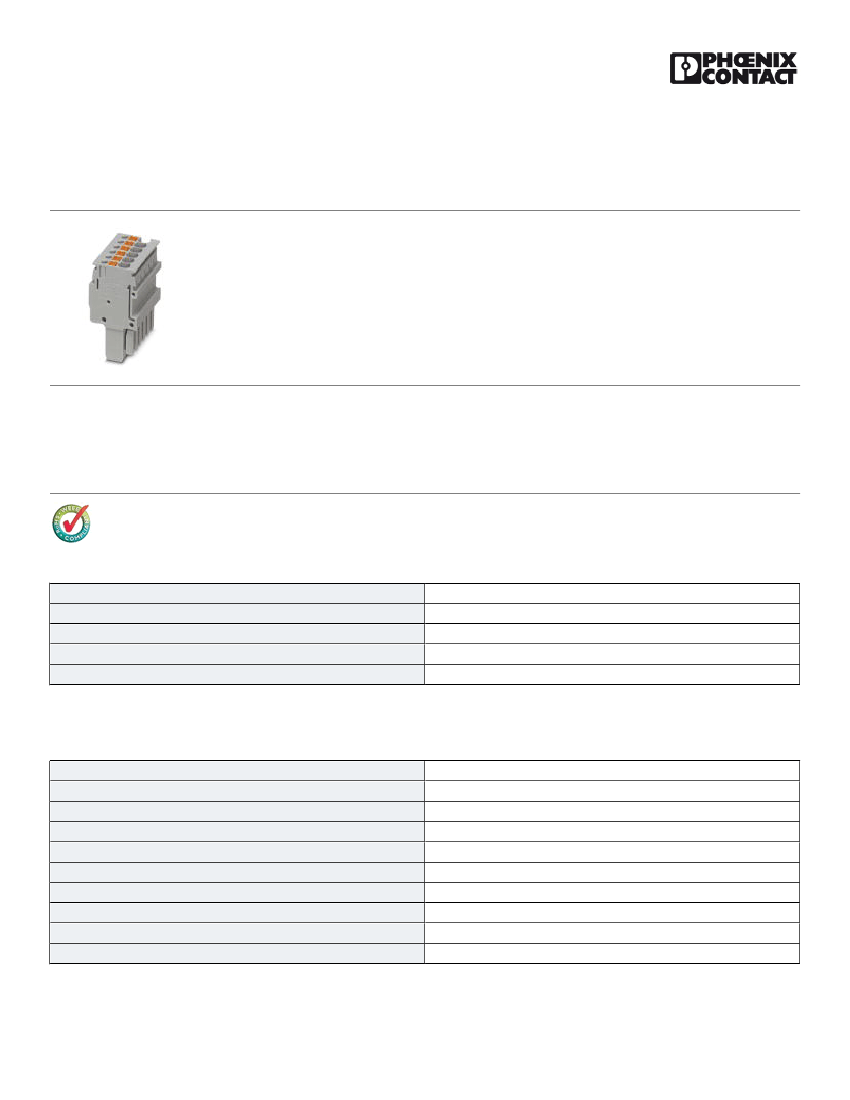

Plug, Connection method: Push-in connection, Number of positions: 6, Cross section: 0.14 mm² - 1.5 mm²,
AWG: 26 - 14, Width: 21 mm, Height: 31.3 mm, Color: gray
Product Features
■
■
■
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
25 pc
10.4 g
85366990
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
6
1.5 mm²
gray
PA
V0
Railway industry
Machine building
Plant engineering
Maximum load current
17.5 A (with 1.5 mm² conductor cross section)
04/27/2016 Page 1 / 13
https://www.phoenixcontact.com/us/products/3212552
Plug - PP-H 1,5/S/6 - 3212552
Technical data
General
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
6 kV
3
III
I
17.5 A (with 1.5 mm² conductor cross section)
17.5 A (observe derating)
500 V
Yes
Dimensions
Width
Length
Height
Pitch
21 mm
16.5 mm
31.3 mm
19.50 mm
3.50 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Push-in connection
IEC 61984
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
8 mm ... 10 mm
A1 / B1
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 61984
V0
04/27/2016 Page 2 / 13
https://www.phoenixcontact.com/us/products/3212552
Plug - PP-H 1,5/S/6 - 3212552
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27141151
27141151
27141151
27141151
ETIM
ETIM 4.0
ETIM 5.0
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GL / CSA / LR / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / EAC / NK / BV / EAC / cULus
Recognized
Ex Approvals
Approvals submitted
Approval details
04/27/2016 Page 3 / 13
https://www.phoenixcontact.com/us/products/3212552
Plug - PP-H 1,5/S/6 - 3212552
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
GL
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
LR
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.14-1.5
14.1 A
500 V
04/27/2016 Page 4 / 13
https://www.phoenixcontact.com/us/products/3212552
Plug - PP-H 1,5/S/6 - 3212552
Approvals
IECEE CB Scheme
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.14-1.5
14.1 A
500 V
EAC
NK
BV
EAC
cULus Recognized

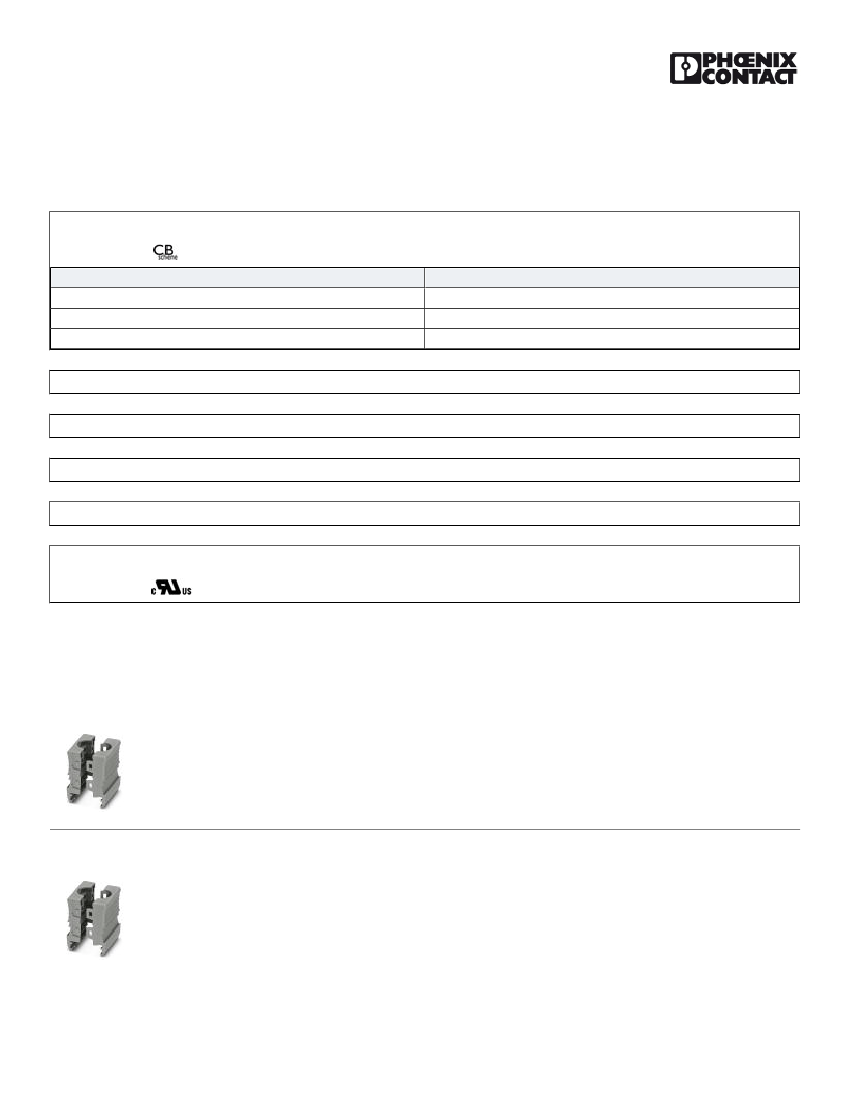

Accessories
Accessories
Cable housing
Cable housing - PH 1,5/S/3 - 3212756
Cable housing, Pitch: 10.5 mm, Length: 19.9 mm, Width: 10.5 mm, Height: 36.8 mm, Number of positions: 3, Color: gray
Cable housing - PH 1,5/S/4 - 3212769
Cable housing, Pitch: 14 mm, Length: 19.9 mm, Width: 14 mm, Height: 36.8 mm, Number of positions: 4, Color: gray
