1-1969540-6

Description
HOUSING, PLUG, DUAL ROW, EP2.5
CategoryThe connector    The connector
File Size289KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

1-1969540-6 Online Shopping

Suppliers Part Number Price MOQ In stock
1-1969540-6 - - View Buy Now

1-1969540-6 Overview

HOUSING, PLUG, DUAL ROW, EP2.5

1-1969540-6 Parametric

Parameter NameAttribute value
Brand NameTE Connectivity
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Factory Lead Time28 weeks
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Base Number Matches2
4

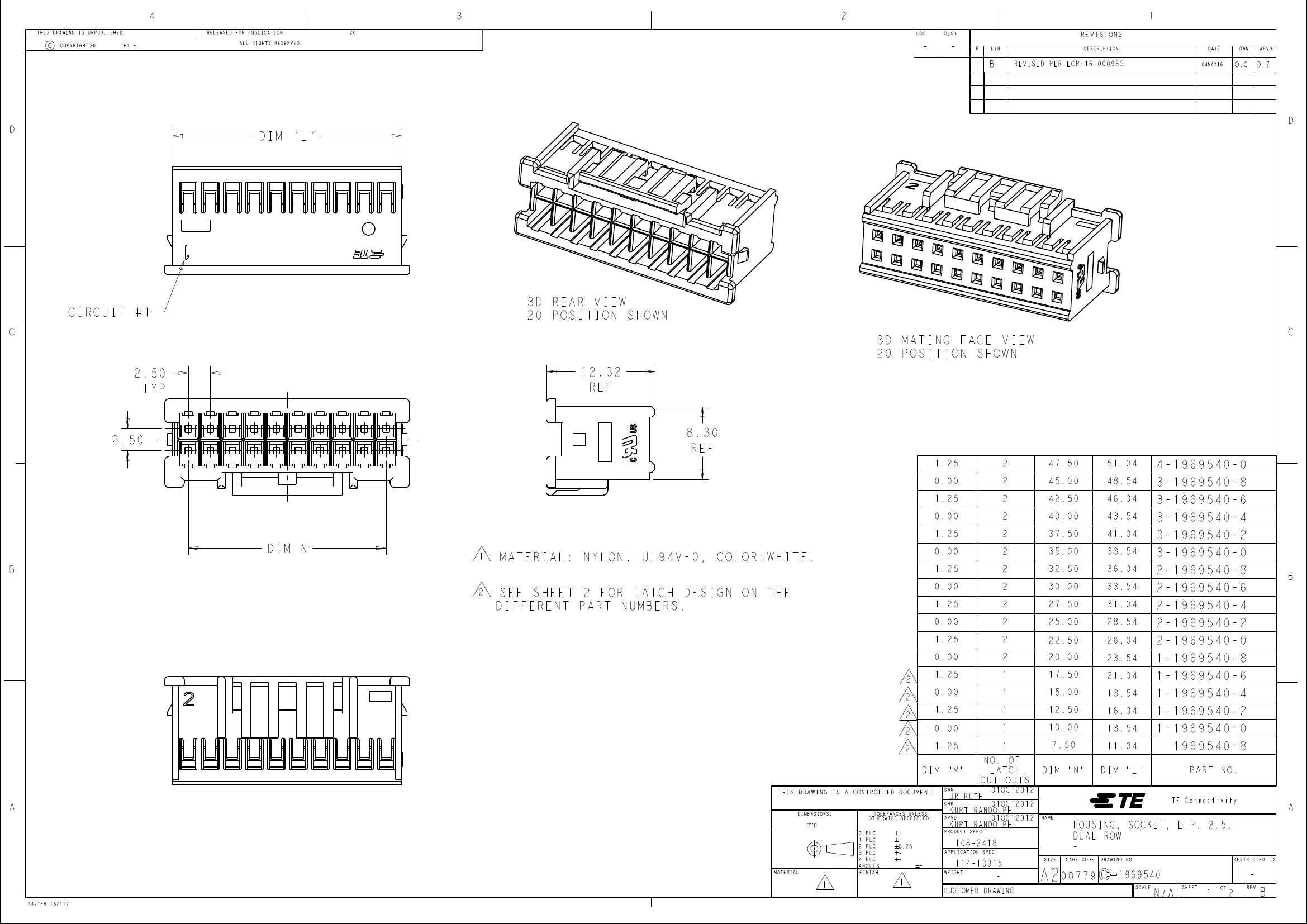

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
LOC
DIST
1
C
COPYRIGHT
20
-
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
B
REVISED PER ECR-16-000965
04MAY16
O.C
D.Z
D
DIM 'L'
D
CIRCUIT #1
C
3D REAR VIEW
20 POSITION SHOWN
3D MATING FACE VIEW
20 POSITION SHOWN
C
2.50
TYP
12.32
REF
8.30
REF
2.50
1.25
0.00
1.25
0.00
1.25
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
NO. OF
LATCH
CUT-OUTS
1
47.50
45.00
42.50
40.00
37.50
35.00
32.50
30.00
27.50
25.00
22.50
20.00
17.50
15.00
12.50
10.00
7.50
DIM "N"
51.04
48.54
46.04
43.54
41.04
38.54
36.04
33.54
31.04
28.54
26.04
23.54
21.04
18.54
16.04
13.54
11.04
DIM "L"
4-1969540-0
3-1969540-8
3-1969540-6
3-1969540-4
3-1969540-2
3-1969540-0
2-1969540-8
2-1969540-6
2-1969540-4
2-1969540-2
2-1969540-0
1-1969540-8
1-1969540-6
1-1969540-4
1-1969540-2
1-1969540-0
1969540-8
PART NO.
TE Connectivity
DIM N
B
1
2
MATERIAL: NYLON, UL94V-0, COLOR:WHITE.

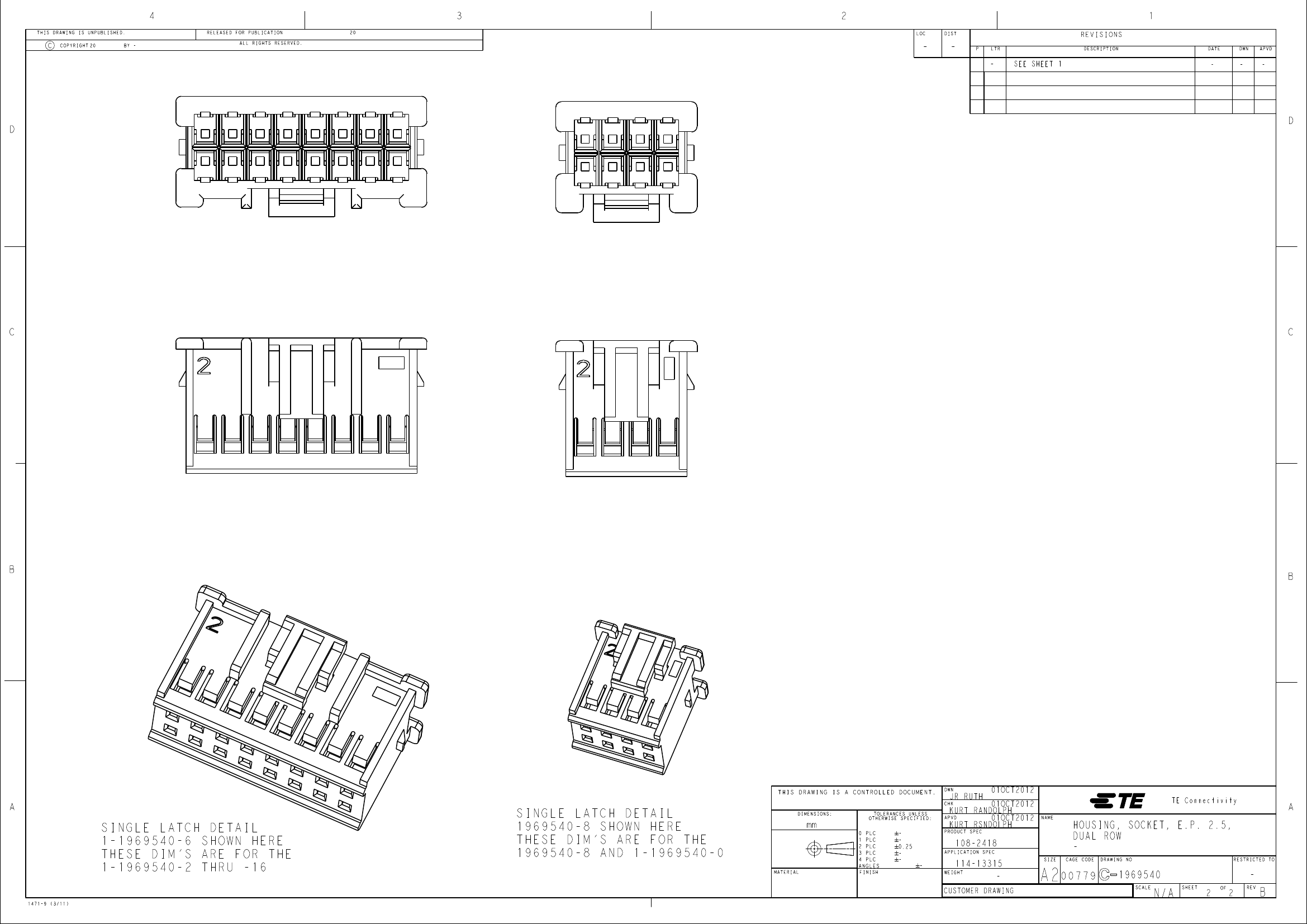

SEE SHEET 2 FOR LATCH DESIGN ON THE
DIFFERENT PART NUMBERS.
0.00
1.25
0.00
1.25
0.00
1.25
0.00
2
2
2
2
2
1.25
0.00
1.25
0.00
1.25
DIM "M"
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
B
A
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.25
-
-
01OCT2012
KURT RANDOLPH
APVD
01OCT2012
KURT RANDOLPH
PRODUCT SPEC
APPLICATION SPEC
JR RUTH
01OCT2012
NAME
A
108-2418
114-13315
SIZE
-
1
1471-9 (3/11)
1
WEIGHT
-
CUSTOMER DRAWING
A2
00779
CAGE CODE
HOUSING, SOCKET, E.P. 2.5,
DUAL ROW
-
DRAWING NO
RESTRICTED TO
1969540
SCALE
N/A
SHEET
1
OF
2
REV
-
B
