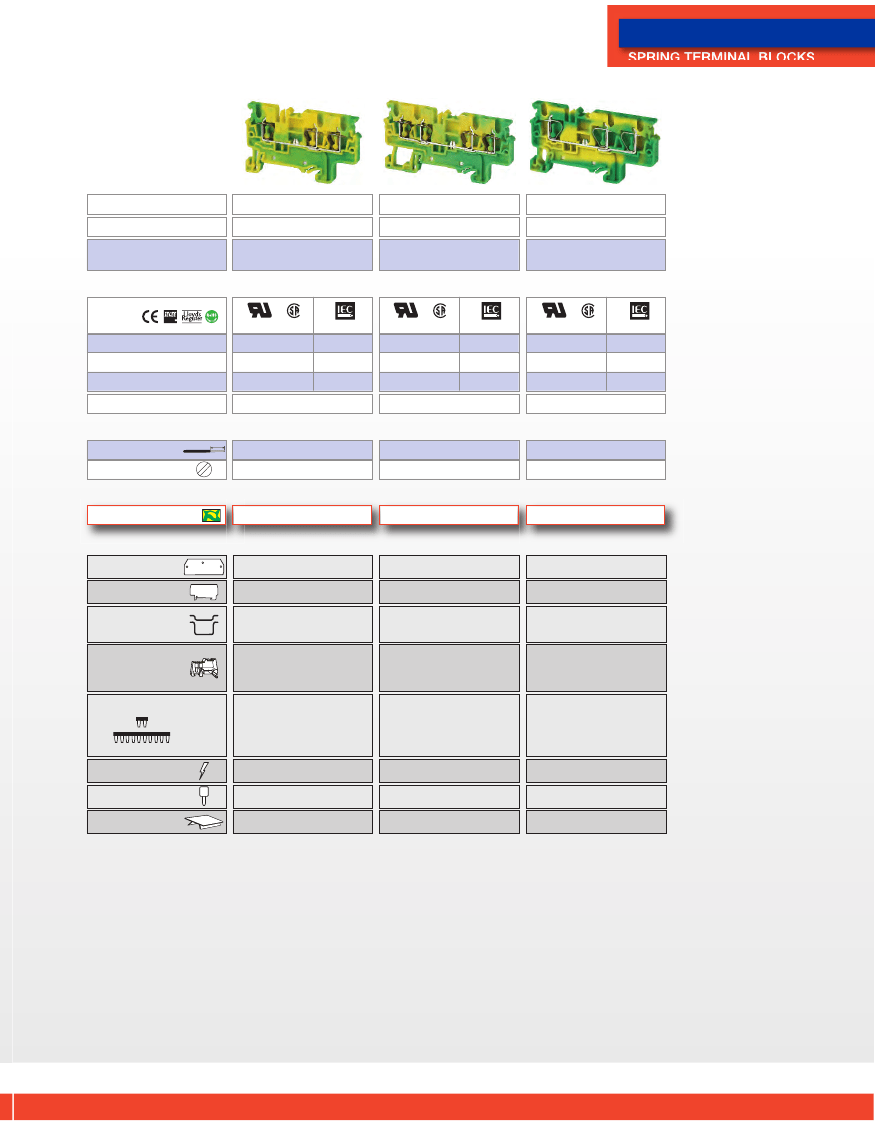

CX SERIES
MULTIPLE CONNECTION GROUND / EARTH TERMINAL BLOCKS
CXG2.5/3
CXG2.5/4
CXG4/3
SPRING TERMINAL BLOCKS
Dimensions
Width
Length
Height w DIN Rail 35 x 7.5 mm
35 x 15 mm
5 mm
62.2 mm
38.0 mm
45.5 mm
5 mm
74.7 mm
38.0 mm
45.5 mm
6 mm
70.5 mm
38.0 mm
45.5 mm
Technical Data/Ratings
Approvals
CB
S C H E ME
C
US
C
US
C
US
E220514
60947-7-1
E220514
60947-7-1
E220514
60947-7-1
Wire Size (solid | stranded)
Voltage Rating
Current Rating
Insulation Material
24-12 AWG
600 V
–
0.2-2.5 mm
2
1000 V
–
24-12 AWG
600 V
–
0.2-2.5 mm
2
1000 V
–
24-10 AWG
600 V
–
0.2-4 mm
2
1000 V
–
Polyamide 66
Polyamide 66
Polyamide 66
Installation Instructions
Wire Stripping Length
Screwdriver
10 mm
0.5x3 mm
Cat. No.
CXG2.5/3
Cat. No.
EPCX2.5/3
PPCX4/3
2511120
CA701-15/S
CA702
CA802
CA103
2 pole
3 pole
4 pole
10 pole
JX2.5/2
JX2.5/3
JX2.5/4
JX2.5/10
WLX2.5
TX2.5
MT5
Std. Pk.
100
Std. Pk.
50
20
20
10
50
50
50
100
50
50
10
100
50
100
Cat. No.
CXG2.5/4
Cat. No.
EPCX2.5/4
PPCX4/4
2511120
CA701-15/S
CA702
CA802
CA103
JX4/2
JX4/3
JX4/4
JX4/10
WLX2.5
TX2.5
MT5
10 mm
0.6x3.5 mm
Std. Pk.
50
Std. Pk.
20
20
20
10
50
50
50
100
50
50
10
100
50
100
Cat. No.
CXG4/3
Cat. No.
EPCX4/3
PPCX4/3
2511120
CA701-15/S
CA702
CA802
CA103
JX6/2
JX6/3
JX6/4
JX6/10
WLX4
TX4
MT6
10 mm
0.6x3.5 mm
Std. Pk.
50
Std. Pk.
20
20
20
10
50
50
50
100
50
50
10
100
50
100
Terminal Blocks
Yellow / Green
Accessories
End Plate
Partition Plate
DIN Rail
End Stop
Shorting Link/
Jumpers
Warning Label
Test Plug
Marking Tag
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
9

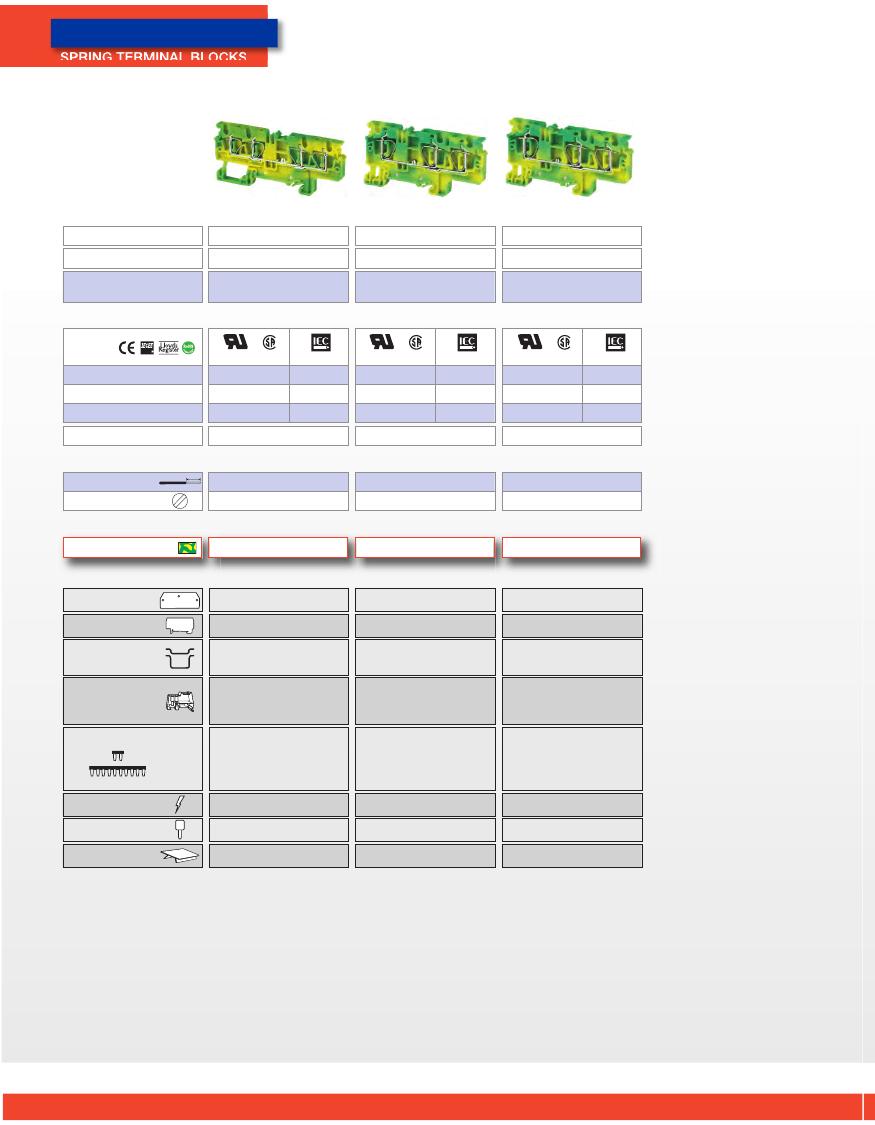

CX SERIES
SPRING TERMINAL BLOCKS
MULTIPLE CONNECTION GROUND / EARTH TERMINAL BLOCKS
CXG4/4
CXG6/3
CXG10/3
Dimensions
Width
Length
Height w DIN Rail 35 x 7.5 mm
35 x 15 mm
6 mm
86.2 mm
38.0 mm
45.5 mm
8 mm
82.2 mm
43.0 mm
50.5 mm
10 mm
82.2 mm
43.0 mm
50.5 mm
Technical Data/Ratings
Approvals
CB
S C H E ME
C
US
C
US
C
US
E220514
60947-7-1
E220514
60947-7-1
E220514
60947-7-1
Wire Size (solid | stranded)
Voltage Rating
Current Rating
Insulation Material
24-10 AWG
600 V
–
0.2-4 mm
2
1000 V
–
24-8 AWG
600 V
–
0.2-6 mm
2
1000 V
–
24-6 AWG
600 V
–
0.2-10 mm
2
1000 V
–
Polyamide 66
Polyamide 66
Polyamide 66
Installation Instructions
Wire Stripping Length
Screwdriver
10 mm
0.6x3.5 mm
Cat. No.
CXG4/4
Cat. No.
EPCX4/4
PPCX4/4
2511120
CA701-15/S
CA702
CA802
CA103
2 pole
3 pole
4 pole
10 pole
JX4/2
JX4/3
JX4/4
JX4/10
WLX4
TX4
MT6
Std. Pk.
50
Std. Pk.
20
20
20
20
50
50
50
100
50
50
10
100
50
100
Cat. No.
CXG6/3
Cat. No.
EPCX6/3
–
2511120
CA701-15/S
CA702
CA802
CA103
JX6/2
JX6/3
JX6/4
JX6/10
WLX6
TX6
MT8
10 mm
0.8x4 mm
Std. Pk.
50
Std. Pk.
20
–
20
20
50
50
50
100
50
50
10
100
50
100
Cat. No.
CXG10/3
Cat. No.
EPCX10/3
–
2511120
CA701-15/S
CA702
CA802
CA103
JX10/2
–
–
–
WLX10
TX10
MT10
18 mm
0.8x4 mm
Std. Pk.
50
Std. Pk.
20
–
20
20
50
50
50
100
–
–
–
100
50
100
Terminal Blocks
Yellow / Green
Accessories
End Plate
Partition Plate
DIN Rail
End Stop
Shorting Link/
Jumpers
Warning Label
Test Plug
Marking Tag
10
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
