I.ELECTRIC PERFORMANCE:
IMPEDANCE( )
FREQUENCY RANGE
VSWR
INSERT LOSS (dB)
PIM(dBc)
INSULATION RESISTANCE (M )
PROOF VOLTAGE (V)
CONDUCTOR RESISTANCE (m )
: 50
: DC-6GHZ
: <1.065 (0-3GHz)
<1.2(3-6GHz)
: <0.1
: <-160 (2X43dBm)
: 5000
:2500
: OUTER CONDUCTOR<0.2
INNER CONDUCTOR<0.8
172372
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
A
RELEASE TO MFG.
DESCRIPTION
01-Oct-12
DATE
ECO
--
APPR
MG
II.MECHANICAL PERFORMANCE:
NUT TORQUE
N : 5Nm
MECHANICAL WEAR
: 500
III.MATERIAL AND PLATING:
OUTER CONDUCTOR
INNER CONDUCTOR
INSULATOR
COUPLING NUT
: BRASS
PLATING COPPER-TIN-ZINC >2µm
: SPRING COPPER
PLATING Ag>5µm
: PTFE
BRASS
PLATING NICKEL5µm
1.555 REF
[39.50]
SCALE 1.000
0.315
[8.00]
IV.ENVIRONMENT:
TEMP.RANGE
: -55 C TO +155 C
$
$
WATERPROOFING STANDARD :IP67
ROHS COMPLIANT
5/8"-24UNEF-2
0.748 ON HEX
[19.00]
4
NUT
INSULATOR
BRASS
SPRING COPPER
MATERIAL
BRASS
PTFE
NICKEL
NATURAL
WHITE BRONZE
FINISH
SILVER
1
0.531 ON FLATS
[13.50]
2 INNER CONDUCTOR
NO
1 OUTER CONDUCTOR
DESCRIPTION
3
1
1
QTY
MATERIAL
DRAWN
1
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
SEE NOTES
REFERENCE
GOPI M
GOPI M
01-Oct-12
01-Oct-12
DATE
DATE
DATE
TITLE
ENGINEER
APPROVED
CAD FILE

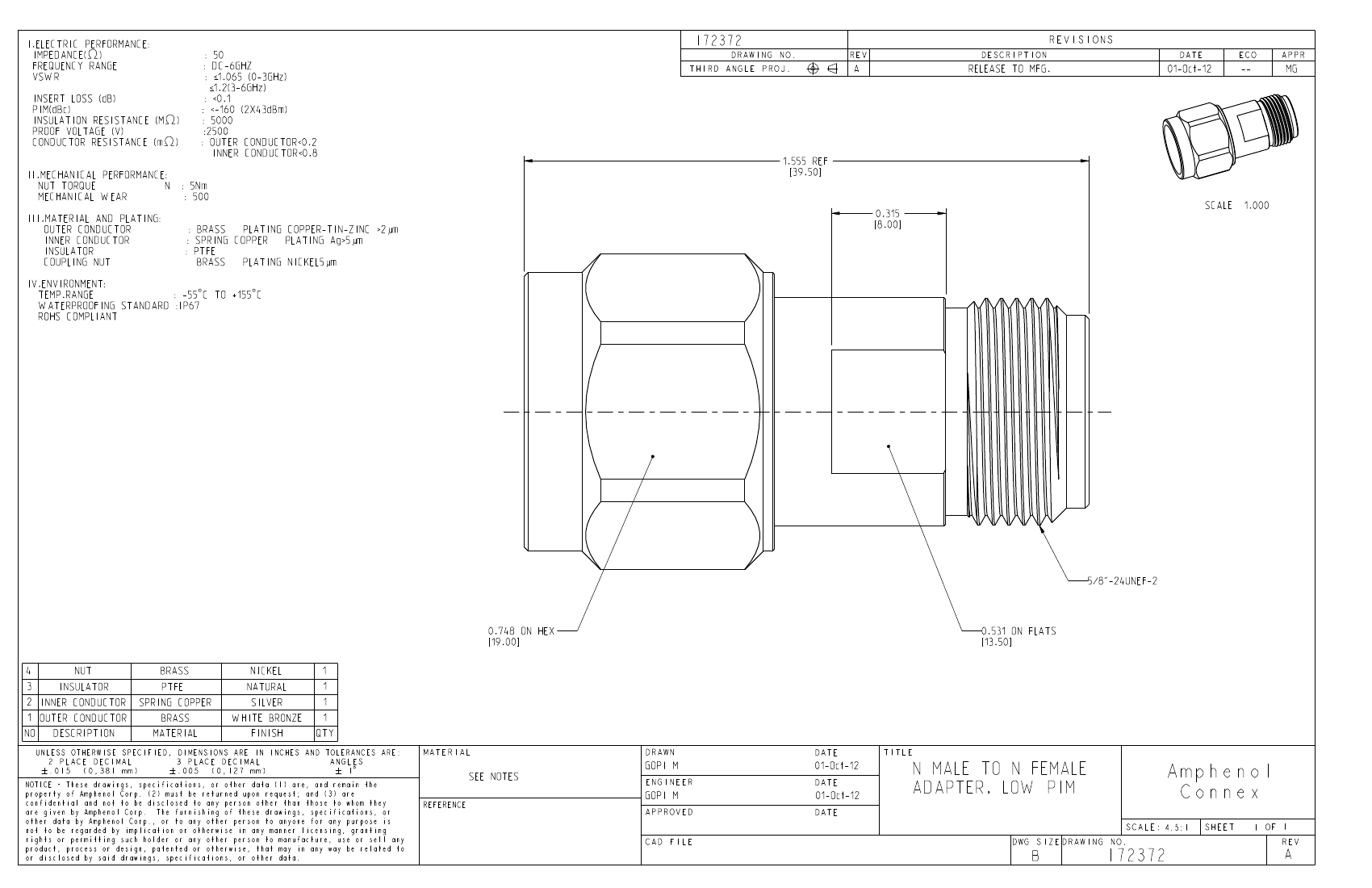

N MALE TO N FEMALE
ADAPTER, LOW PIM
DWG SIZE DRAWING NO.
Amphenol
Connex
SCALE: 4.5:1
SHEET
1 OF 1
REV
B
172372
A
