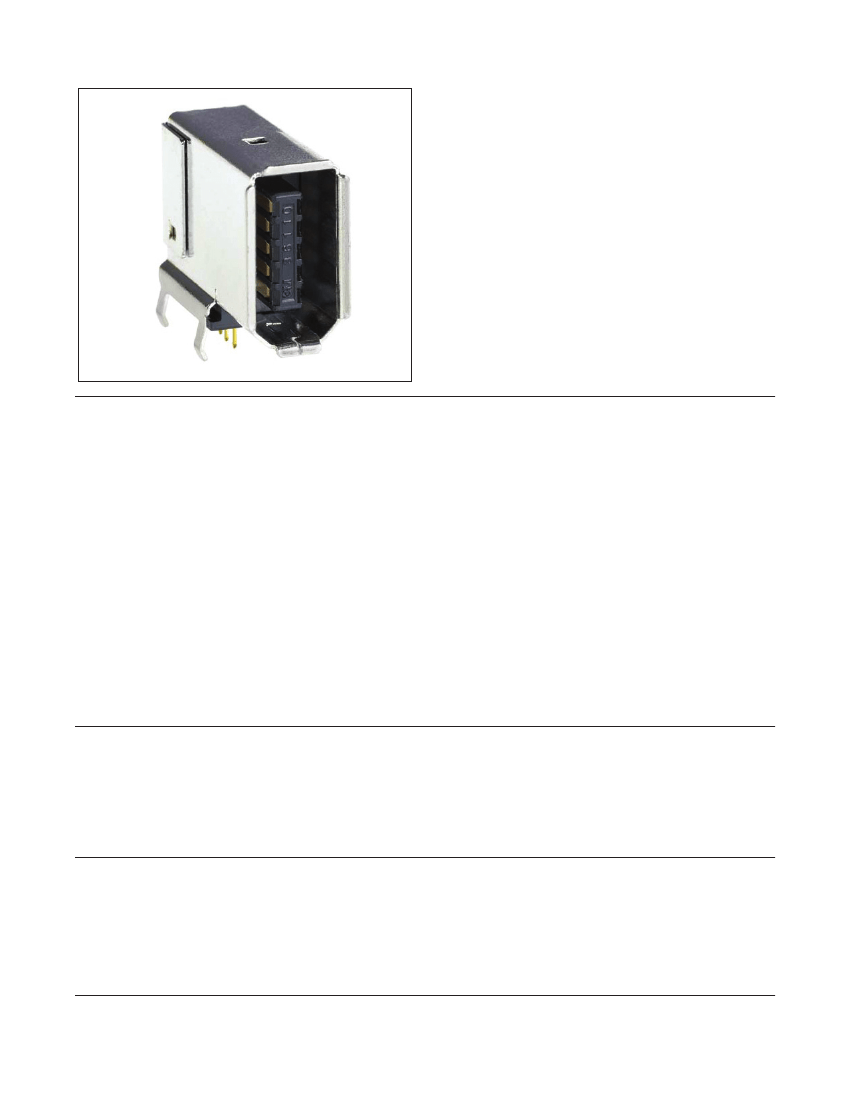

• Robust ribbon style contact for reliable, repetitive
plugging
• Body tabs provide lateral support to solder joints and
help enable grounding
• Upright orientation conserves PCB real estate
• 360° shielding for excellent EMI protection
• 10 contacts can carry signal or power (up to one amp
per pin)
• Polarized to provide proper cable insertion
• Vibration resistant
• Mates to 3M
™
Shielded Compact Ribbon (SCR)
Wiremount Receptacle (TS-2227)

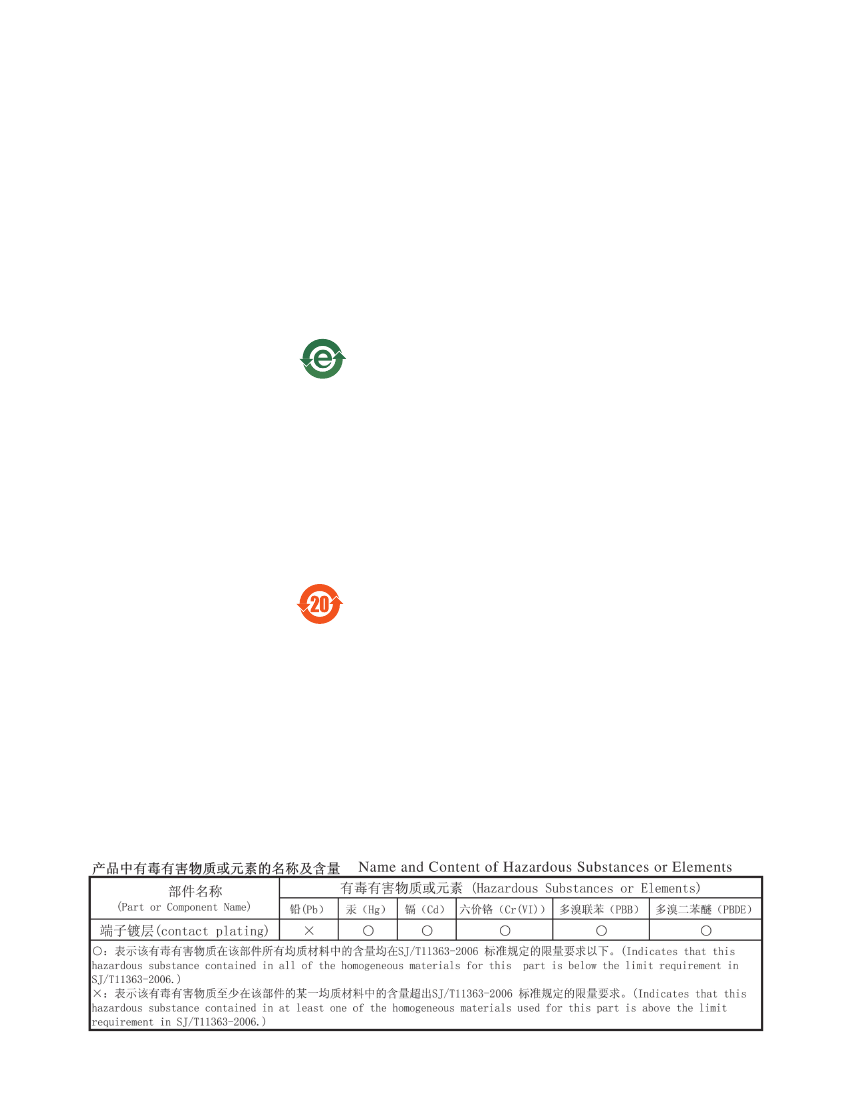

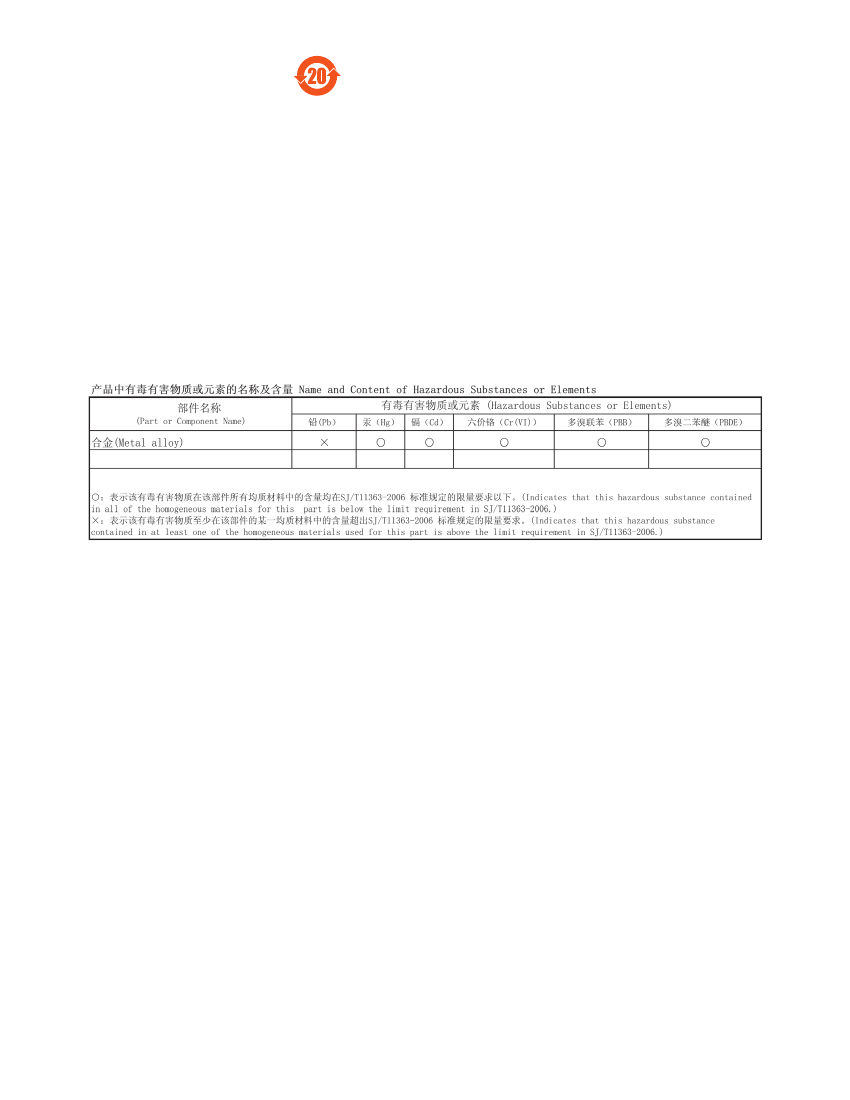

• See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: March 9, 2009
TS-2223-C
Sheet 1 of 2
Physical
Insulation:
Material: Glass Reinforced Polyester (PBT)
Flammability: UL 94V-0
Color: Black
Contact:
Material:
Phosphor Bronze
Plating:
Underplating:
Nickel
Wiping Area:
See Ordering Information
Termination Area:
See Ordering Information
Shroud:
Material:
Steel
Underplating:
Nickel
Plating:
Tin
Electrical
Current Rating:
1 A
Voltage Rating:
150 V
AC
/ 200 V
DC
Insulation Resistance:
> 5 × 10
8
Ω
at @ 500 V
DC
Withstanding Voltage:
500 V
RMS
for 1 minute
Environmental
Temperature Rating:
-55°C to +85°C
Process Rating:
Solder Dip Test - 260°C for 10 sec., two times after 100°C max. preheat, 60 sec.
max. duration
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Shielded Compact Ribbon (SCR) Connectors
Boardmount Right Angle Plug
23.0 [.91]
#2
2.0 [.08]
8.0 [.31]
15.2 [.60]
2.8 [.11]
#9
#10
9.6 [.38]
10.9 [.43]
10.2 [.40]
1.5 [.06]
0.6 [.02]
2.0 [.08]
17.40±0.25 [.685±0.010]
16.9 [.67]
361 Series
7.4 [.29]
#1
3.0 [.12]
9.6 [.38]
2.0 [.08]
0.55 [.022]
4X 2.00 [.079]
PCB EDGE
FOOTPRINT
(10.9) [(.43)]
1.5 [.06]
1.5 [.06]
#10
6.00 [.236]
(18.2) [(.72)]
-Y-
#2
(8.00) [(.315)]
10.2±0.1 [.40±0.004]
#9
2.00±0.10 [.079±0.004]
10X Ø0.80±0.05 [Ø.031±.002]
#1
1.00±0.05 [.039±0.002]
9.6±0.1 [.38±0.004]
-X-
0.08 X Y
8.0 [.31]
10.0 [.39]
(4.8) [(.19)]
Recommended PCB hole mounting pattern
Tolerance Unless Noted
0
mm
±
3
0.0
mm
[Inch]
0.00
[ ] Dimensions for
Reference only
±
0.3
±
0.13
Ordering Information
36110 - 2220PE
Contact Plating:
PE = 0.5 μm [ 20 μ” ] min. gold wiping area with gold flash tail
(RIA E1 & C1 apply)
TS-2223-C
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
