STX-3100-3C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> STX-3100-3C

Preview

STX-3100-3C: DescriptionVoltage References 1/2Railvtl Gnd; CategoryThe connector The connector; File Size486KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

STX-3100-3C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	STX-3100-3C	-	-	View	Buy Now

STX-3100-3C Overview

Voltage References 1/2Railvtl Gnd

STX-3100-3C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
audio type	STEREO
body width	0.394 inch
subject depth	0.555 inch
body length	0.472 inch
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	60 mΩ
DIN compliance	NO
Dielectric withstand voltage	350VAC V
Durability	5000 Cycles
IEC compliance	NO
maximum insertion force	19.5712 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of poles	3
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

STX-3100-3N

Part Number Builder

LR78160

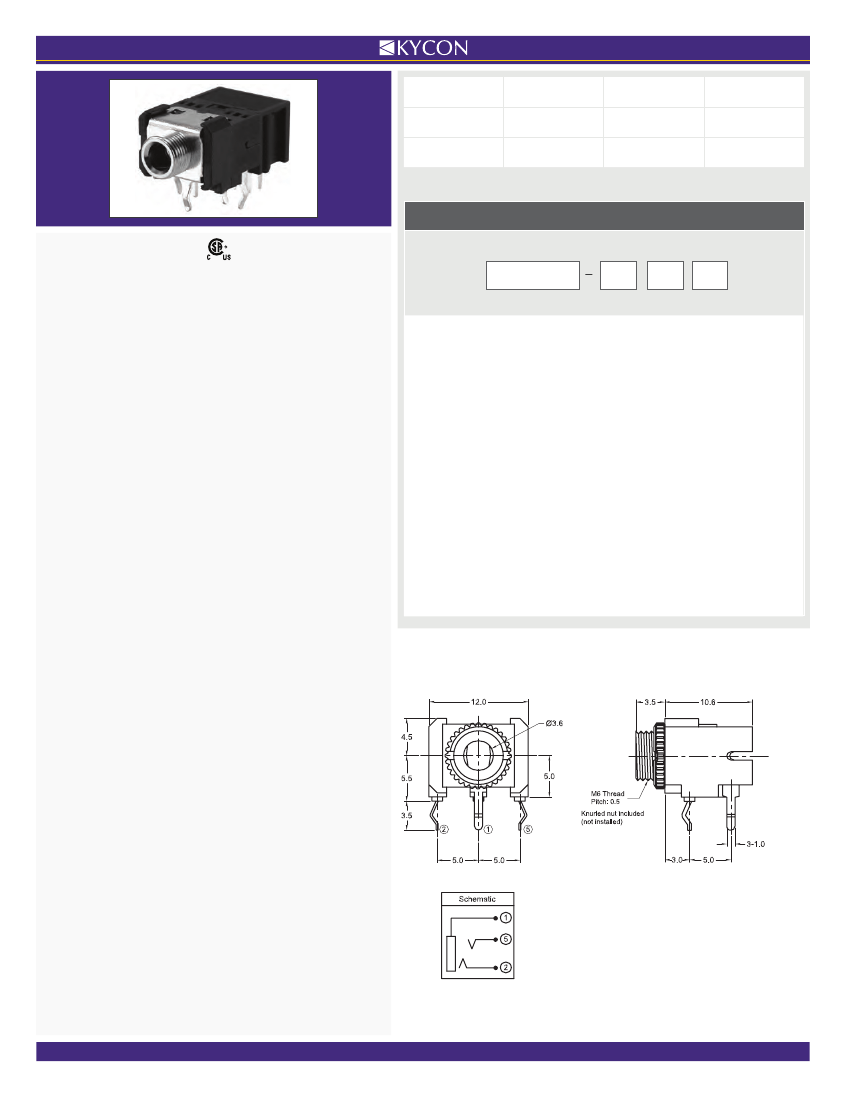

AUDIO JACKS: STX-3100 Series

PCB Mount 3.5mm Audio Jack

Product Features

Audio Applications for Computers and Multimedia

Can Be Used To Activate Speakers, an Equalizer or to

Configure the Audio Signal

Available with Up to One Double-Pole Single-Throw Switch &

One Double-Pole Double-Throw Switch in One Audio Jack

CSA/NRTL Certified File No. LR78160

STX-3100

Series

3

Number

of Pins

N

Threading

Option

Back Plate

Option

Series

STX-3100

-

3.5mm Audio Jack

Number of Pins

3

Pins -

Audio Jack, No Switch

5

Pins -

One Double-Pole Single-Throw Switch

9

Pins -

One Double-Pole Double-Throw Switch

11

Pins -

One Double-Pole Single-Throw Switch/

One Double-Pole Double-Throw Switch

Performance Specifications

Materials and Finish

Housing

PBT Thermoplastic, Black Color, UL94V-0 Rated

Bushing

Brass, Nickel Plated

Terminals

Pin #1: Brass, Nickel Plated

Pin #5 and Pin #2: Phosphor Bronze, Matte Tin Plated

Pin #3 and Pin #4: Brass, Matte Tin Plated

Slide Switch Terminals: Brass, Silver Plated

Threading Option

C

-

Threaded Barred

N

-

Non-Threaded Barred

Back Plate Option

Blank

- No Back Plate

B

- With Back Plate (Available only with 3 & 5 Pins Option)

Contact Kycon for other options

STX-3100-3C

Dimensions in mm

Mechanical Characteristics

Insertion Force

0.4kg - 2.0kg

Extraction Force

0.3kg - 2.0kg

Durability

5000 Mating Cycles

Electrical Characteristics

Contact Resistance

Before Durability Test

30 milliohms Max.

After Durability Test

60 milliohms Max.

Insulation Resistance

100 Megohms Min. at 250V DC

Dielectric

Withstanding Voltage

250V AC RMS for 1 Minute

Operating Temperature

-25°C to + 85°C

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

2013

STX-3100-3C Related Products

	STX-3100-3C	STX-3100-3N-577C	STX-3100-9C	STX-3100-3NB	STX-3100-5NB
Description	Voltage References 1/2Railvtl Gnd	Phone Connectors SJ 3.5 MM 3POS GRN	Voltage References 1/2Railvtl Gnd	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Potentiometers Sgl Unit Vert Flat Snap-in 10K Ohms 20%
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Kycon	Kycon	Kycon	Kycon	Kycon
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
audio type	STEREO	STEREO	STEREO	STEREO	STEREO
body width	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch
subject depth	0.555 inch	0.555 inch	0.555 inch	0.555 inch	0.555 inch
body length	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK
Connector type	3.5mm AUDIO	AUDIO/RCA CONNECTOR	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	60 mΩ	60 mΩ	60 mΩ	60 mΩ	60 mΩ
Dielectric withstand voltage	350VAC V	250VAC V	350VAC V	350VAC V	350VAC V
Durability	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles	5000 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
Number of poles	3	3	9	3	5
Number of ports	1	1	1	1	1
Maximum operating temperature	85 °C	80 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER KINKED LEADS	SOLDER	SOLDER	SOLDER
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
ECCN code	EAR99	EAR99	EAR99	EAR99	-
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT
Configuration	1X1 HORIZONTAL	-	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE
DIN compliance	NO	-	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO
maximum insertion force	19.5712 N	19.5712 N	29.3568 N	-	19.5712 N
MIL compliance	NO	-	NO	NO	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
