RJE73
Product Specification S6048C Rev 1.2
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJHSE

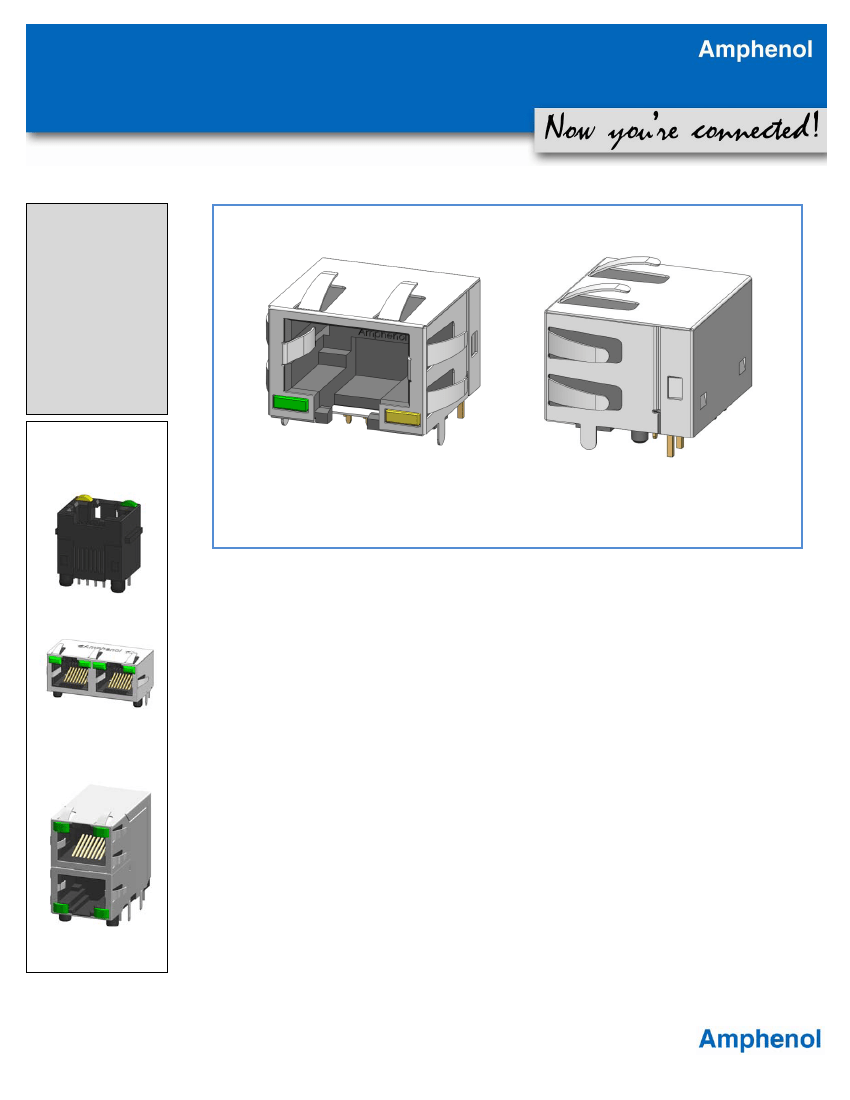

P/N RJE73‐188‐00441 SHOWN
SINGLE PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
Overview
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
This product specification defines the general use and performance parameters for Amphenol’s
RJE73 series of modular jacks.
Availability: Single port, shielded versions with and without EMI shield tabs available.
Usage
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
The RJE73 modular jacks supports Ethernet Protocols. Shielding available for increased EMI
performance and LEDs for Link Activity and Network Speed verification. High temperature reflow
type LEDs suitable for IR reflow.
RJSAE
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Revision date: May 6,2012
Page 1 of 2
S6048C Rev 1.2
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
LED forward DC current:
LED forward Voltage:
LED reverse voltage:
LED light intensity:
LED wave length:
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.0 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
20mA typical
1.9 Volts max. @ 2mA (for single colors)
2.6 Volts max. @ 20mA (for Bi-colors)
5 Volts minimum
0.4 to 1.5 mcd @ 2mA (for single colors)
0.5 mcd min. @ 2mA (for Bi-colors)
Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red:
625± 5 nm measured @ 20mA
Related Products
RJULE
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: 245°C for 8 to 10 seconds max.

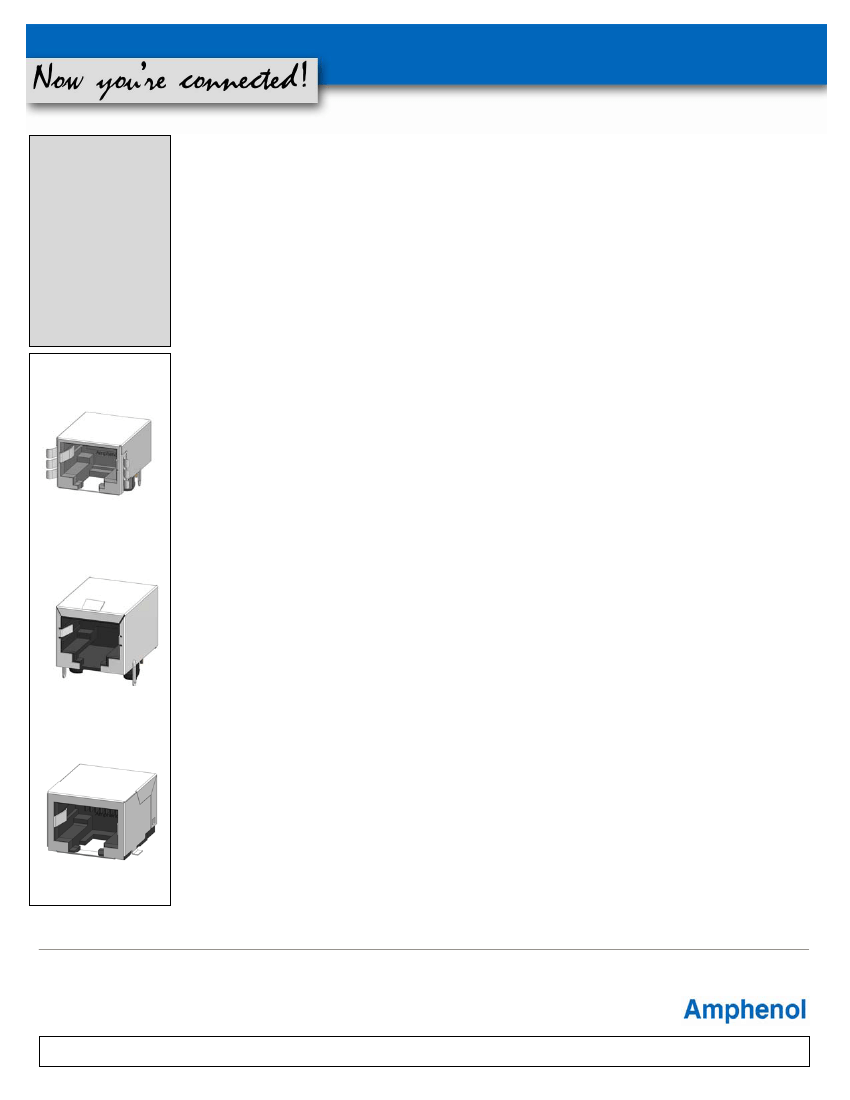

P/N RJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
Operating temperature: -55° C to +85° C
FRJAE
Material Requirements
RJE73 connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold plating options 50µ” minimum Nickel on contact
mating area.
100µ” minimum matte tin plating on solder tails
Shield:
Stainless steel with tin dipped tails
LED:
Tin plating on LED tails
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITION,
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
RJLSE
Available Documents
Drawing Numbers:
P-RJE73-188-00XXX
P/N RJLSE‐41181‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
8 Position Modular Jack, with optional LEDs,and Shield Tabs.
Contact factory or Authorized Amphenol representative for additional configurations
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2011 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
