Datasheet> All Categories > The connector> The connector> M80-5422222

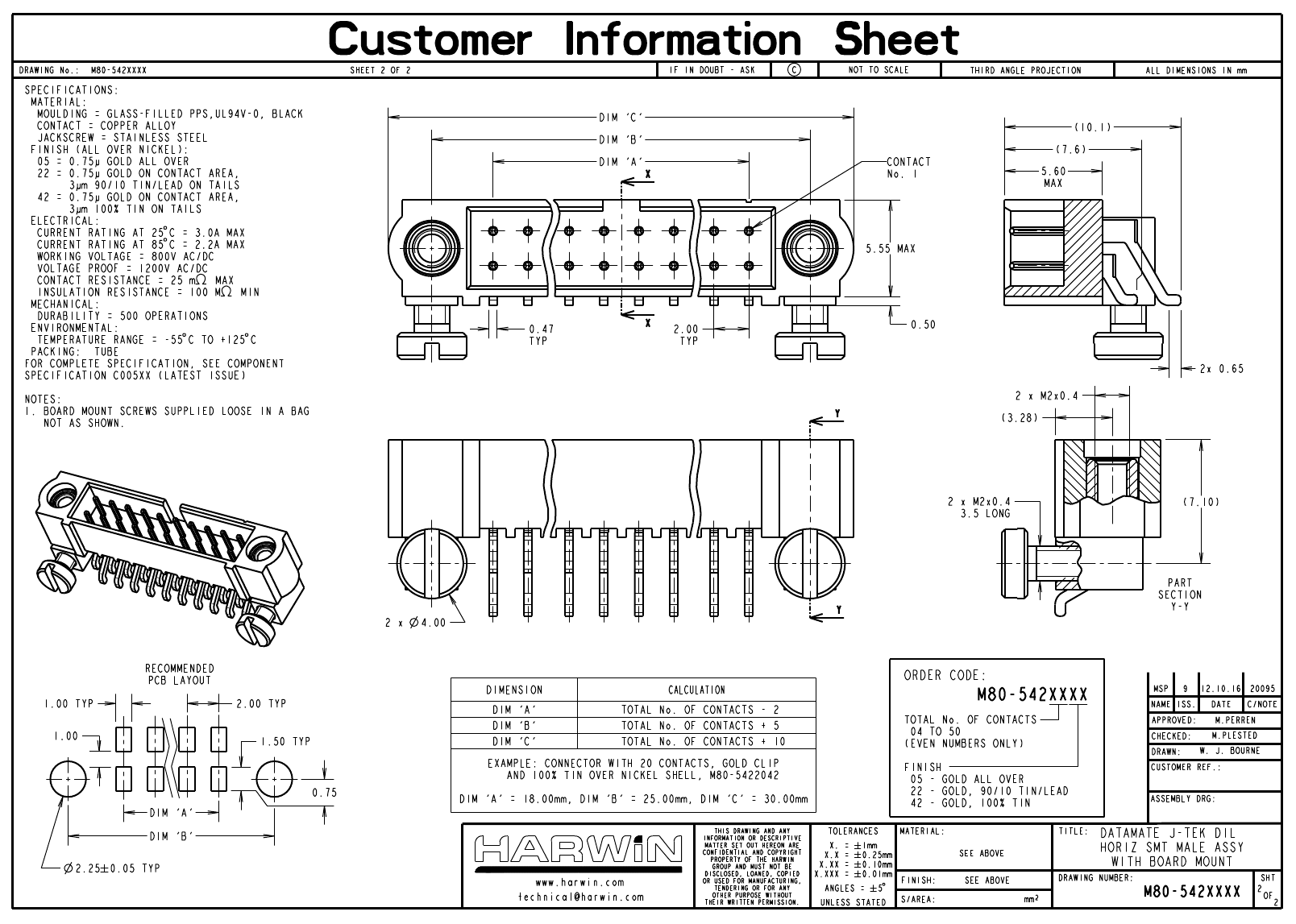

Preview

M80-5422222: DescriptionHeaders u0026 Wire Housings 11+11 WAY MALE DIL HORIZ ASSY; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-5422222 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5422222	-	-	View	Buy Now

M80-5422222 Overview

Headers u0026 Wire Housings 11+11 WAY MALE DIL HORIZ ASSY

M80-5422222 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Objectid	1784010795
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	11908283
Board mount options	HOLE .086-.098
body width	0.238 inch
subject depth	0.398 inch
body length	1.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

M80-5422222 Related Products

	M80-5422222	M80-5420805	M80-5424422
Description	Headers u0026 Wire Housings 11+11 WAY MALE DIL HORIZ ASSY	Headers u0026 Wire Housings Datamate J-Tek Male Horiz w/jk scr 3.5mm	Headers u0026 Wire Housings 22+22 WAY M HRZ SMT BM + JS
Is it lead-free?	Contains lead	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.238 inch	0.238 inch	0.238 inch
subject depth	0.398 inch	0.398 inch	0.398 inch
body length	1.26 inch	0.709 inch	2.126 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	GOLD (30)
Contact completed and terminated	Tin/Lead (Sn/Pb)	Gold (Au)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Durability	500 Cycles	500 Cycles	500 Cycles
maximum insertion force	2.78 N	2.0016 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0	e4	e0
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.4892 mm	2.4892 mm	2.4892 mm
Plating thickness	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2.0066 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	22	8	44
Maker	Harwin	Harwin	-
Body/casing type	RECEPTACLE	-	RECEPTACLE
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Mixed contacts	NO	-	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
UL Flammability Code	94V-0	-	94V-0
Manufacturer's serial number	-	M80-5	M80-542
