90649-3111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 90649-3111

90649-3111: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size201KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

90649-3111 Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

90649-3111 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	90649
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 20 circuits

Right angle in-line on 2.5mm pitch

Polarized board snap-in pegs

Polarized with respect to mating part

Color stripe for visual check

Locking latch

Reference Information

Product Speciﬁcation: PS-99020-0018

Packaging: Bag

Mates With:

90650

Designed In: Millimeters

Electrical

Voltage: 250V DC max.

Current: 3.0A

Contact Resistance: 8m

Ω

max.

Insulation Resistance: 500 M

Ω

min.

Mechanical

Mating Force: 5N max.

Unmating Force: 3N min.

Durability: 15 cycles

Physical

Housing: Polyester, UL 94V-0

Contact: Brass

Plating: 3

m Tin/Lead

Operating Temperature: -25 to +85˚C

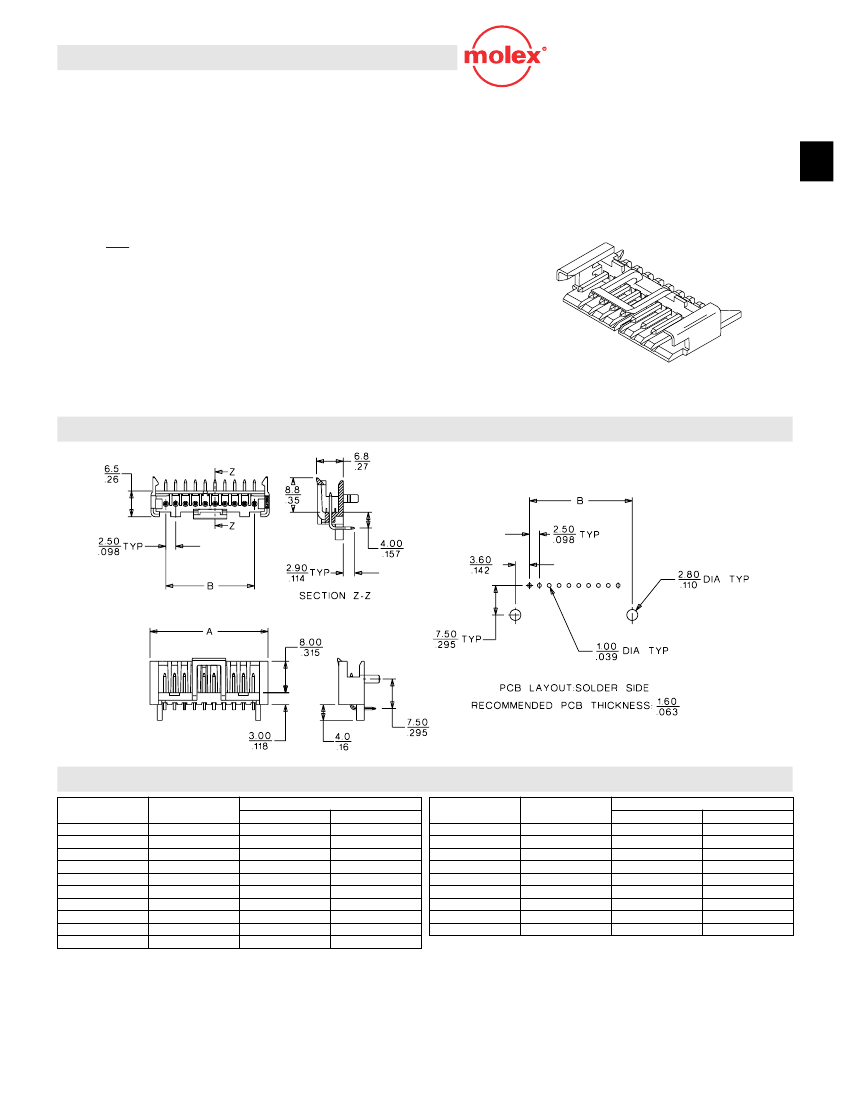

2.50mm (.098") Pitch

User Friendly

Wire-to-Board

Header

2.00 to 2.50mm (.079 to .098") Pitch

27.50

30.00

32.50

35.00

37.50

40.00

42.50

45.00

47.50

(1.083)

(1.181)

(1.280)

(1.378)

(1.476)

(1.575)

(1.673)

(1.772)

(1.870)

90649

Right Angle, Latched

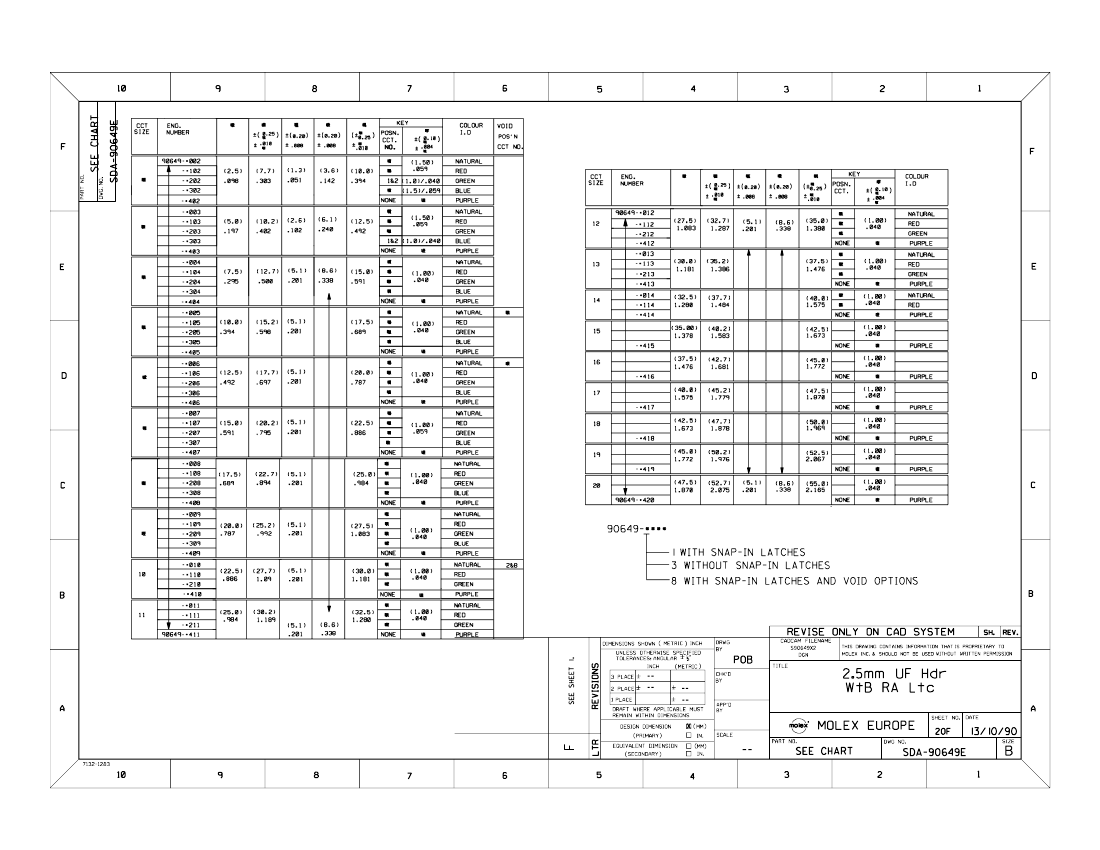

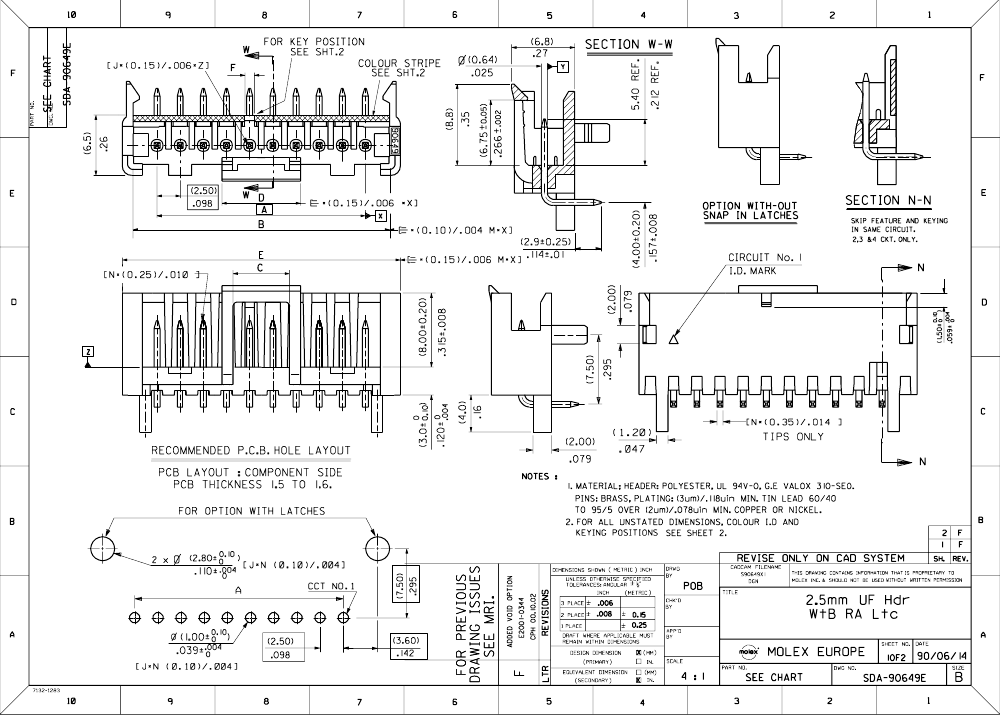

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

90649-1002

90649-1003

90649-1004

90649-1005

90649-1006

90649-1007

90649-1008

90649-1009

90649-1010

90649-1011

10.00

12.50

15.00

17.50

20.00

22.00

25.00

27.50

30.00

32.50

Dimension

(.394)

(.492)

(.591)

(.689)

(.787)

(.886)

(.984)

(1.083)

(1.181)

(1.280)

2.50

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

(.098)

(.197)

(.295)

(.394)

(.492)

(.591)

(.689)

(.787)

(.886)

(.984)

Circuits

Order No.

90649-1012

90649-1013

90649-1014

90649-1415

90649-1416

90649-1417

90649-1418

90649-1419

90649-1420

35.00

37.50

40.00

42.50

45.00

47.50

50.00

52.50

55.00

Dimension

(1.380)

(1.476)

(15.75)

(1.673)

(1.772)

(1.870)

(1.969)

(2.067)

(2.165)

MX01

B-95
