Silver plated contacts offer superior electrical performance and durability up to 10,000 mating cycles.
See reducing bushings in accessory section for smaller wires.
Mating
AWG mm²
Force
Minimum Quantity ...........
1
42.4
Low
2
33.6
High
4
21.1
High
6
13.3
High

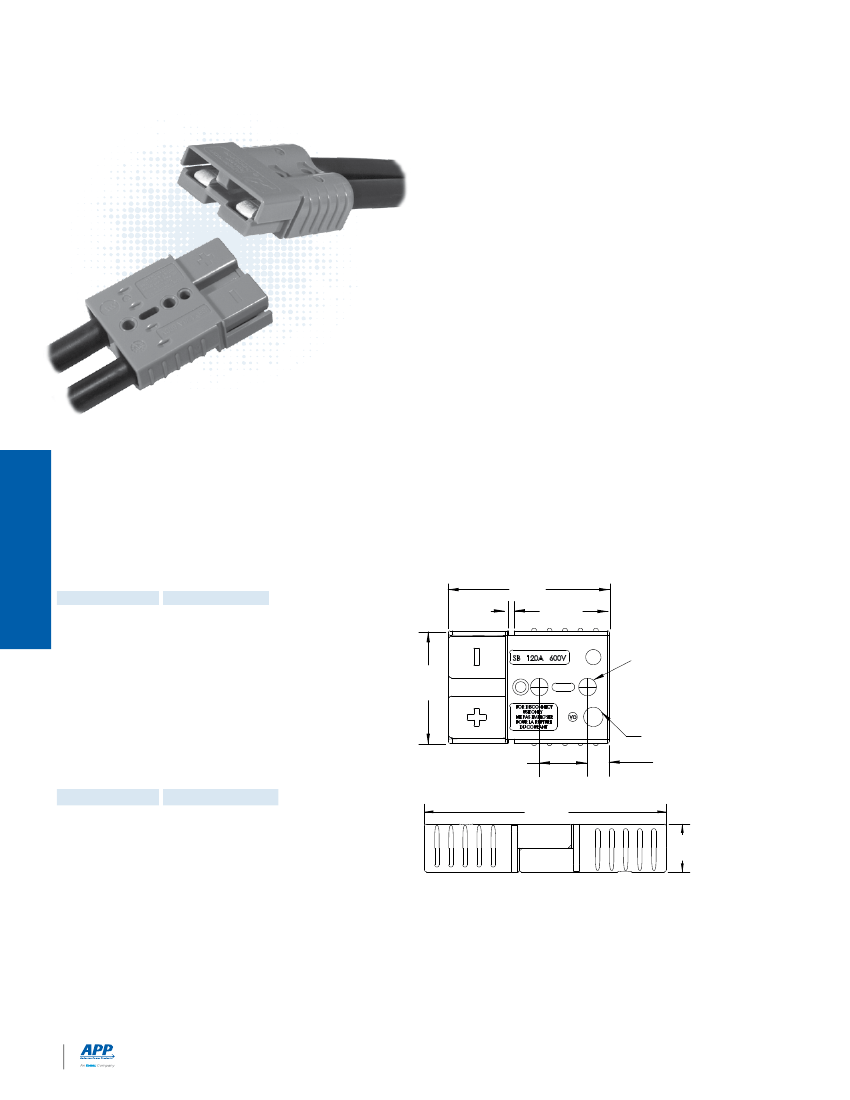

Dimensions
-A-
-B-
inches mm
inches mm
...............................................
0.47 11.94 0.39 9.91
0.44 11.18 0.34 8.64
0.44 11.18 0.29 7.37
0.44 11.18 0.22 5.59
------- Loose Piece Part Numbers -------
600
500
50
1323G1-BK -
1323G1
-
1319-BK
1319
-
1319G4-BK
1319G4
-
1319G6-BK
1319G6
[ 21.3 ]
0.84
B
A
[ 50.8 ]
2.0
[ 10.4 ]
0.41
SB
®
120 Silver Plated Busbar Contacts
Use 2 busbar contacts per housing to provide a quick disconnect input or
output busbar connection. Busbar contacts are for mating with wire contacts only.
Part number 120BBS includes lock nuts. Locknuts must be ordered separately
for B01997P1.
Mating
Type
Thread Force
Minimum Quantity ...............
Busbar
#10-24 High
Lock Nut #10-24 -
------------ Loose Piece Part Numbers ------------
1,000
300
20
10 ....
-
B01997P1 -
120BBS
H1216P8 -
110G54 -
SB
®
120
SECTION 3
See Busbar contact drawing on
website for further detail.
[ 77.0 ]
3.03
[ 9.5 ]
0.38
[ 2.5 ]
0.10
#10 - 24 THD
[ 11.1 ]
0.44
All Data Subject To Change Without Notice
www.andersonpower.com
- 67 -
| SB
®
120 CONNECTOR SPECIFICATIONS |
Electrical
Current Rating Amperes ¹
Wire to Wire (1 AWG)
Wire to Busbar (2 AWG)
Voltage Rating AC/DC
UL 1977
Dielectric Withstanding Voltage
Volts AC
UL 1977
240
120
CSA
130
Mechanical
Wire Size Range
Wire Contacts with Bushings
Max. Wire Insulation Diameter
Operating Temperature ²
Standard
Chemical Resistant*
Mating Cycles No Load by Plating
Wire and Busbar Contacts
Avg. Mating / Unmating Force
Wire to Wire
Min. Contact / Spring Retention Force
lbf
N
AWG
10 - 1
in.
0.600
mm²
5.3 - 42.4
mm
15.240
600
2,200
°F
°C
-4° to 221° -20° to 105°
-40 to 221° -40° to 105°
Silver (Ag)
10,000
Lbf.
20
N
89
Avg. Mated Contact Resistance Milliohms ¹
5 1/2” of #2 AWG wire
0.136
Hot Plug Current Rating Amperes - Wire & Busbar
250 cycles at 120V DC
60A
Materials
Housing
Standard Plastic Resin
Chem. Resistant Resin
Contact Retention Spring
Housing Flammability Rating
UL94
Glow Wire
Wire & Busbar Contacts
Base
Plating
Contact Termination Methods
Crimp ³
Hand Solder
Wrench / Socket
Polycarbonate
Polycarbonate / PBT blend
Stainless Steel
75
333.6
Connector
Series
SB®120
Creepage/Clearance Material
Configurations per IEC 60950-1
Group
Unmated
Mated
4.10 mm
4.10 mm
IIIa
V-0
960°C (GWFI) / 800°C (GWIT)
Protection
Copper Alloy
Silver
Touch Safety with Wire Contacts
IEC 60529
IP10
Environmental Sealing with Boots
IEC 60529
IP64
SECTION 3
Wire Contacts
Wire Contacts
Busbar Contacts Only
NOTE 1: See IEC 60664-1 for working voltage.
NOTE 2: Amp ratings are stated per position and based on all positions being fully loaded.
¹ Based on: 105°C rated or better cable of the largest size, Properly calibrated APP recommended tooling, and a 25°C ambient temperature. UL rating not to exceed
the maximum operating temperature. CSA rating below a 30°C temperature rise.
² Limited by the thermal properties of the connector plastic housing.
³ Use APP recommended tooling only. Alternate tools may adversely affect the performance of our connectors along with UL and CSA recognition.
SB
®
120
| SB
®
120 CONNECTOR TEMPERATURE CHARTS |

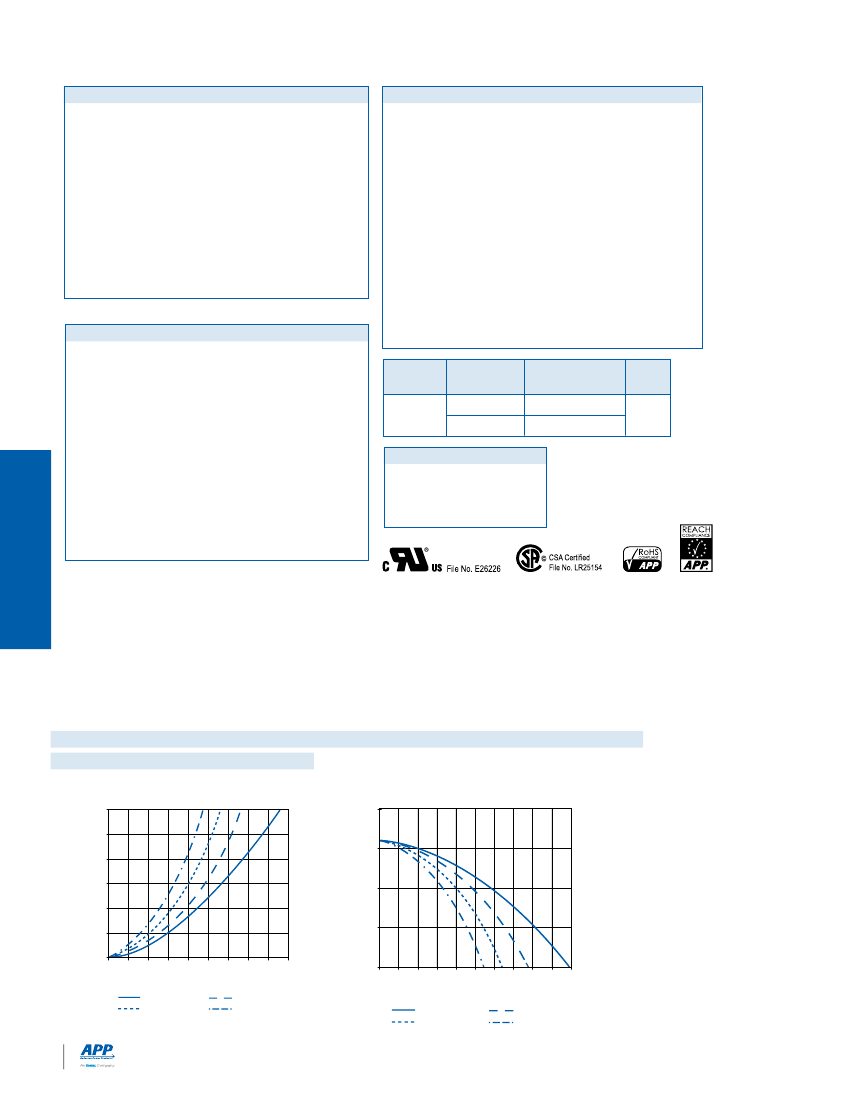

Current - Temperature Derating per IEC 60512-5-2 Test 5B
Temperature rise charts are based on a
25°C ambient temperature.
For Temperature Rise Above 60°C, Consult the Extended Temperature Rise Charts in the Appropriate Product Section on the Website.
SB
®
120
Temperature Rise at Constant Current
60
125
Ambient Temperature (°C)
SB
®
120
Derating vs. Ambient Temperature
50
Temperature Rise
Above Ambient (°C)
40
30
20
10
0
0
25
50 75 100 125 150 175 200 225
Amperes Applied
1 AWG
2 AWG
4 AWG
6 AWG
100
75
50
25
0 25
50 75 100 125 150 175 200 225 250
Amperes Applied
1 AWG
2 AWG
4 AWG
6 AWG
- 68 -
www.andersonpower.com
All Data Subject To Change Without Notice
| SB
®
120 Accessories |

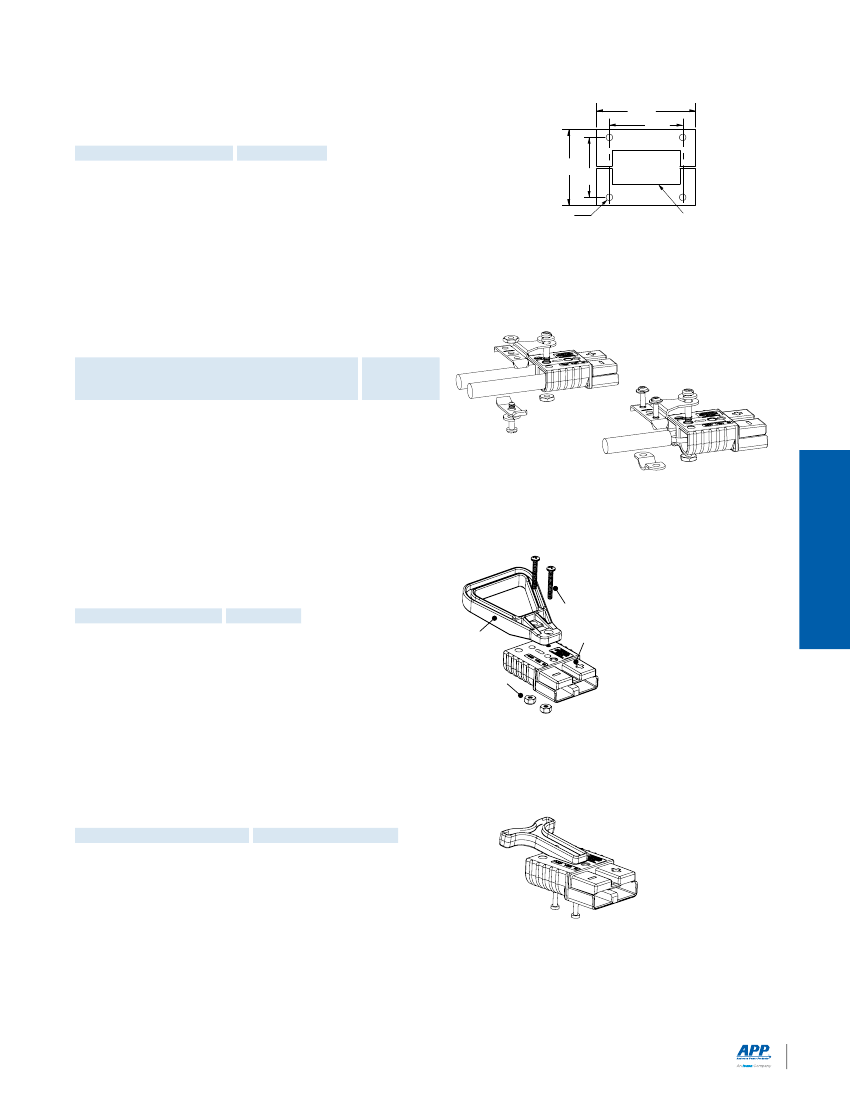

Mounting Clamp for SB
®
120
Mounting clamps can be used for fastening a SB
®
120 series housings to a panel.
Fastening hardware not included.
Description
--- Part Number ---
Minimum Quantity ............................ 20 sets of 2 ....
Panel Mount Bracket
1467G1
1.82
1.44
2.38
1.75
0.16 DIA.
4 Places
0.88 High X 1.88 Wide
Panel Cutout

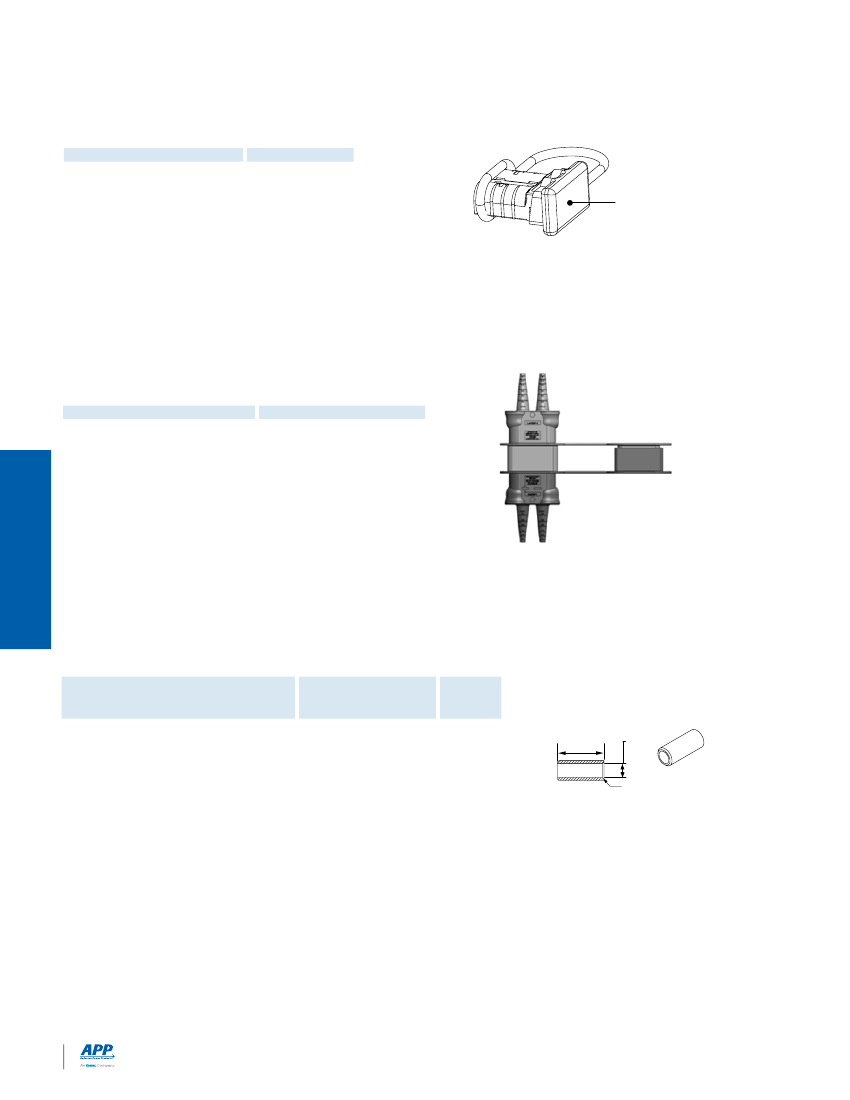

Cable Clamps
Durable metal cable clamps securely hold cables to prevent accidental strain or pulls
from dislodging wire or contacts from the housing. Cable clamps are recommended
