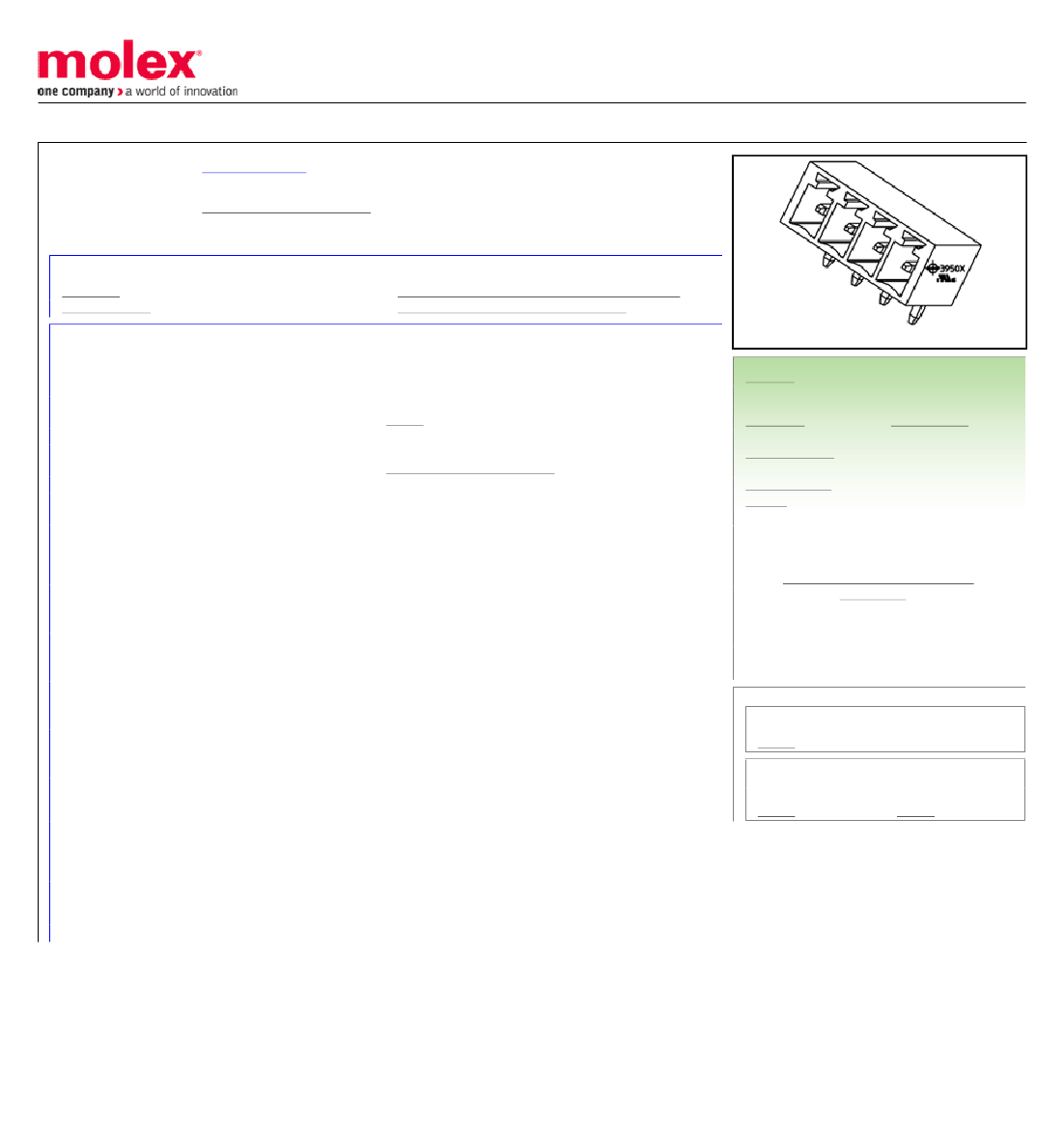

39502-6517

Description
Pluggable Terminal Blocks EURO 3.5MM HOR PLUG 17 CIRCUITS
CategoryThe connector
File Size27KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

39502-6517 Online Shopping

Suppliers Part Number Price MOQ In stock
39502-6517 - - View Buy Now

39502-6517 Overview

Pluggable Terminal Blocks EURO 3.5MM HOR PLUG 17 CIRCUITS

39502-6517 Parametric

Parameter NameAttribute value
Product CategoryPluggable Terminal Blocks
ManufacturerMolex
RoHSDetails
ProductHeaders
Number of Positions17 Position
Pitch3.5 mm
Current Rating8 A
Voltage Rating300 V
Mounting AngleHorizontal
Factory Pack Quantity240
This document was generated on 10/13/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0395026517
Active
Eurostyle™ Terminal Blocks
3.50mm Pitch Eurostyle Horizontal PCB Header, Green Housing, Gold (Au) Plated, 17
Circuits
Documents:
3D Model
Drawing (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Wire Size AWG
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
Product Specification PS-39500-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
E48521
Terminal Blocks
39502
N/A
PCB Header
Eurostyle™ Terminal Blocks
ESE, Eurostyle Pluggable
Euro Block
822350439114
17
N/A
None
1
Horizontal
3.50mm
2.50mm
No
3.50mm
3.50mm
Yes
Fully
No
-40°C to +105°C
N/A
8.0A
300V
EU ELV
Not Relevant
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Not Relevant
Not Reviewed
Search Parts in this Series
39502 Series
Mates With
Most 3.50mm Pitch Industry Standard Plugs,
39500 Horizontal Plug, 39503 Vertical Plug
PS-39500-001-001
SD-39501-002, SD-39502-001
This document was generated on 10/13/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
