COMPONENT SPECIFICATION
C12505
CONNECTOR
APPLICATION.

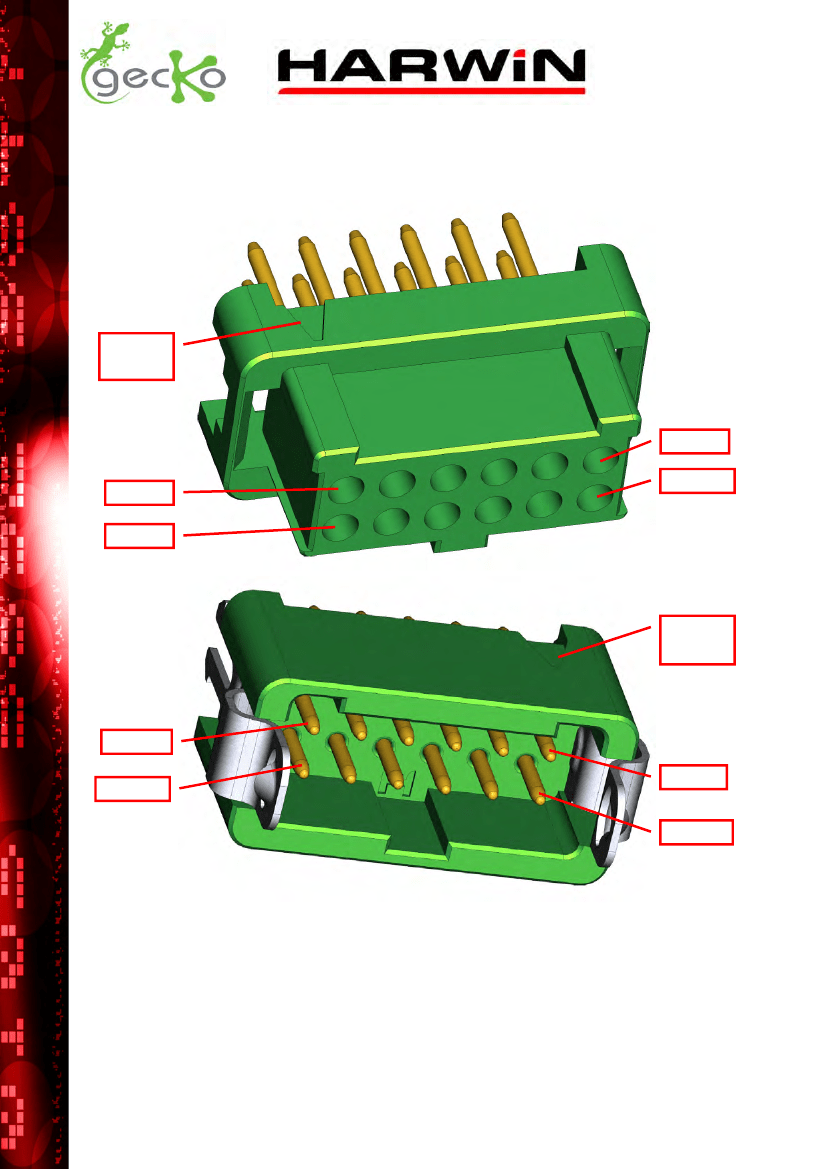

1.0 DESCRIPTION OF CONNECTOR AND INTENDED APPLICATION.
The G125 series of connectors is comprised of barrel crimp contacts and crimp housings; available in Male and Female
applications as well as Vertical PC-Tail and Surface Mount Connectors on a 1.25mm pitch.
The G125 Crimp variants are fully shrouded, unsealed connectors with replaceable contacts. They are designed for
interconnecting cable-to-cable and cable-to-board. The housings have a low profile potting wall to allow back potting for
additional strain relief and improved sealing where required. All pre-made cables are supplied back-potted for customer
convenience. Male variants can be equipped with locking latches for secure interconnection with easy to release features.
The G125 Vertical variants are fully shrouded, unsealed connectors for interconnecting cable-to-board and board-to-board. The
Male connectors can be equipped with locking latches for secure interconnection with easy to release features. Latches can
be specified with through board locking features or surface mount pads for additional security.
All contacts are gold plated all over for high performance and long service life, the contact plating is hard acid gold of 98%
purity.
The G125 series range covers 06, 10, 12, 16, 20, 26, 34 & 50 total number of contacts currently in a dual row configuration,
suitable for various cable-to-cable, cable-to-board and board-to-board applications. Connector housings are polarised to
prevent mis-matching and have contact position one indicated on the outside of the housings.
2. RATINGS.
2.1 MATERIALS
All materials are listed on individual drawings.
All Female Contacts ..................................................................................................................... Beryllium Copper
Male PC-tail contacts ................................................................................................................... Phosphor Bronze
Male Crimp Contacts .................................................................................................................... Brass
Housing ………………………………………………………………………………………………….………............... 30% Glass Filled Thermoplastic
Housing Flame Retardant rating ................................................................................................. UL 94 V-0
Latches
............................................................................................................................
Copper Nickel Tin alloy
Potting Compund ………………………………………………………………………………………………………… Stycast 2651 MM with catalyst 9
CHARACTERISTICS
2.2 ELECTRICAL CHARACTERISTICS
EIA-364-
EIA-364 -70A : 1998 - Current – per individual contact 25°C ambient temperature .................................................... 2.8A max
(When only one contact per connector is electrically loaded)
EIA-364-
EIA-364 -70A : 1998 - Current – per contact through all contacts at 25°C ambient temperature ............................... 2.0A max
EIA-364-
EIA-364 -20C : 2004 - Working Voltage (at 1006mbar, sea level) ............................................................... 450V DC or AC peak
EIA-364-
EIA-364 -20C : 2004 - Voltage Proof (at 1013mbar, sea level) ..................................................................... 600V DC or AC peak
EIA-364-
EIA-364 -20C : 2004 - Working Voltage (at 44mbar, 21,336m (70,000ft)) .................................................. 250V DC or AC peak
EIA-364-
EIA-364 -20C : 2004 - Voltage Proof (at 44mbar, 21,336m (70,000ft)) ...................................................... 350V DC or AC peak
EIA-364-
EIA-364 -06C : 2006 - Contact Resistance (initial) ......................................................................................... 20mΩ max
EIA-364-06C : 2006 - Contact Resistance (after conditioning) .................................................................................. 25mΩ max
EIA- 364-
EIA-364-
EIA-364 -21C : 2000 - Insulation Resistance (initial) .............................................................................. 10GΩ min at 500V DC
EIA-364-
EIA-364 -21C : 2000 - Insulation Resistance (after conditioning) ….........…………………………................ >1GΩ min at 500V DC
Creepage Distance (contact-to-contact) ................................................................................................................... 0.15mm min
Clearance Distance (contact-to-contact) ................................................................................................................... 0.15mm min
C12505
Issue: 5
Change Note: 12979
Date: 22.10.2015
COMPONENT SPECIFICATION
C12505
(continued).
2. RATINGS (continued).
2.3 ENVIRONMENTAL CHARACTERISTICS
Environmental Classification ........................................................65/150/56 days at 93% RH
EIA-364-
EIA-364 -32C : 2000 - Temperature Range .................................Test Condition IV, Dwell 30mins, 5 cycles -65
°C
to +150
°C
EIA-364-
EIA-364 -28D : 1999 - Vibration Severity ◊..................................Test Condition IV: 10Hz to 2000Hz,1.5mm, 198 mm/s² (20G)
Duration = 2 Hours
EIA-364-
EIA-364 -26B : 1999 - Salt Mist .......................................................................Test Condition B, 48 hours continuous exposure
EIA-364-
...................................Test Condition E: 981 mm/s² (100G) for 6ms in Z AXIS,
EIA-364 -27B : 1996 - Shock Severity ◊...................................
...................................
490 mm/s² (50G) for 11m/s in X&Y axis.
Bump Severity ◊............................................................................390 mm/s² (40G), 4000 ±10 Bumps
EIA-364-
EIA-364 -01A : 2000 - Acceleration Severity ..............................490m/s² (50g)
◊
latches fully utilized
CHARACTERISTICS
2.4 MECHANICAL CHARACTERISTICS
Durability ............................................................................................................................................................. 1000 operations
Durability (Latches) ................................................................................................................................. ........... 100 operations*
Contact Retention in Housing (All Contact types) ..... ....................................................................................... 6N min
Insertion Force (per contact, using mating contact) ......................................................................................... 2.8N max
Withdrawal Force (per contact, using mating contact) .................................................................................... 0.2N min
*By hand or with Z125-926XX00 tools. Minimum added retention of 20N.
SERIES
2.5 WIRE TERMINATION RANGE - G125 SERIES CRIMP PRODUCTS ONLY
Wire Type (recommended) ....................................................... BS 3G 210 type A, MIL-W-16878/6 type ET or NEMA HP3 type ET
Maximum Insulation Diameter ................................................................................................... ......................... Ø0.80mm
Insulation Strip Length.................................................................................................................. ......................... 1.50-1.75mm
Conductor
Size
AWG
26
28
30
32
Stranding
No. x Ømm
7 x 0.15
7 x 0.13
7 x 0.10
7 x 0.08
Diameter
mm
Ø0.533
Ø0.381
Ø0.305
Ø0.203
Area
mm
2
0.128
0.072
0.057
0.035
Circular
MIL Area
CMA
253
159
100
62
Crimp Tool
Setting No.
6
5
5
5
Ø0.80
Max
Insulation
Dia in mm
Conductor Barrel
Crimp
Height
Hand Crimp
Tool:
Z125-900
Positioner:
Z125-901
mm
Minimum
Pull-Off
Force
N
18
0.95-1.10
13
12
6
CRIMPING
2.6 G125 SERIES CRIMPING AND ASSEMBLY METHODS
For information on Crimping Gecko contacts refer to Tooling Instruction Sheet IS-37 - Hand Crimp Tool Z125-900.
For information regarding the insertion/removal of Gecko contacts refer to Tooling Instruction Sheet IS-38 - Gecko Assembly
Tool Z125-902.
See Harwin video:
http://youtu.be/ErgGEZBwoa4
for a full instruction video.
Recommended Potting compound is Stycast 2651 MM with catalyst 9.
C12505
Issue: 5
Change Note: 12979
Date: 22.10.2015
