85001-0385: DescriptionDIN 41612 Connectors DIN41612 RECPT 64P; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85001-0385 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85001-0385	-	-	View	Buy Now

85001-0385 Overview

DIN 41612 Connectors DIN41612 RECPT 64P

85001-0385 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	YES
Filter function	NO
IEC compliance	YES
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

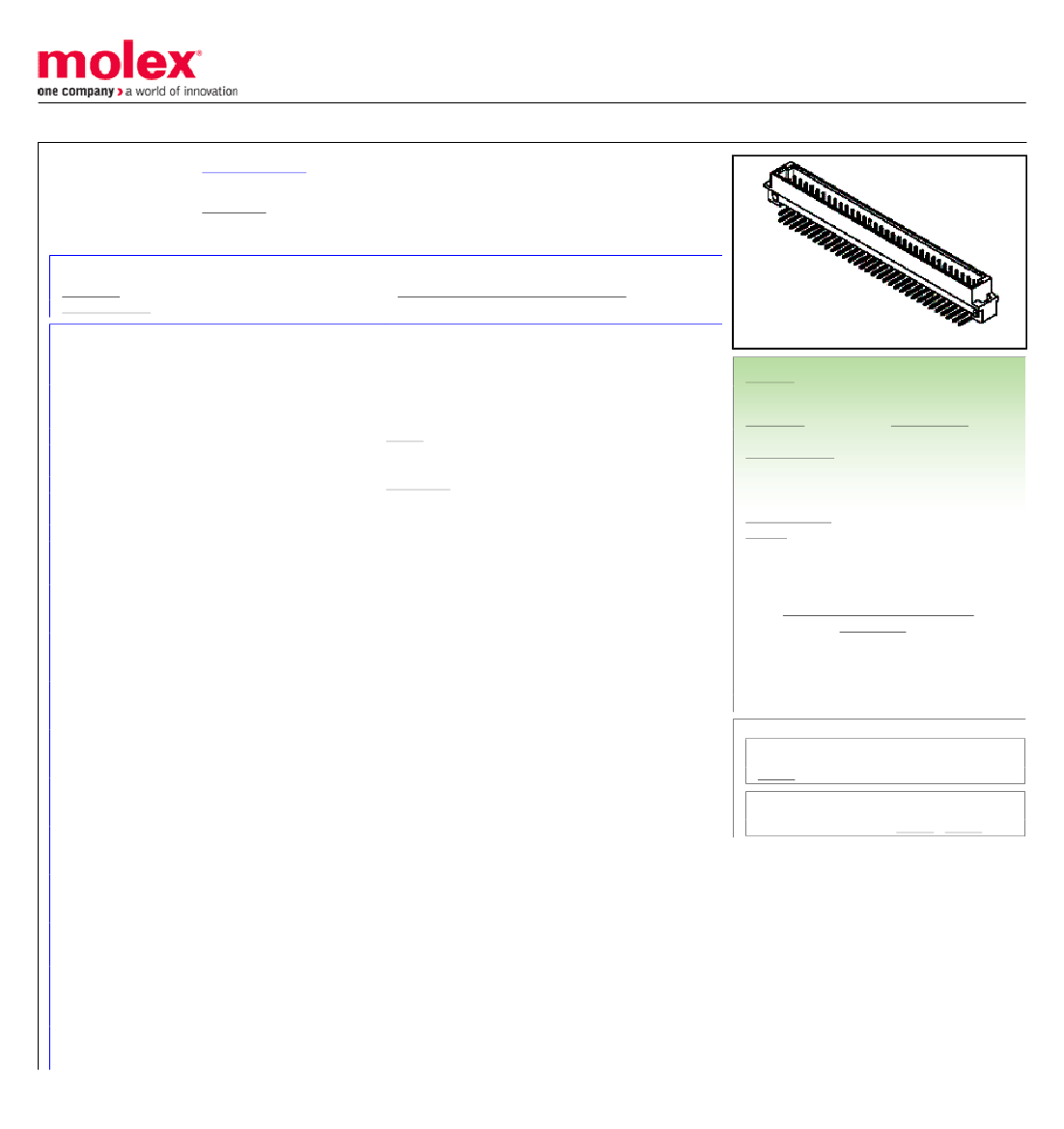

This document was generated on 11/15/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0850010385

Active

DIN 41612

2.54mm Pitch DIN 41612 Header, Style B, Right Angle, Through Hole, 0.60µm

Selective Gold (Au), 64 Circuits

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Plating Mating

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Data Rate

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Material Info

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

Backplane Connectors

85001

Daughtercard

PCB Header

DIN 41612

IEC 603-2/DIN 41612

B

756054563311

64

400

Yes

94V-0

No

Yes

Gold

11.711/g

16

Open Pin Field

2

Right Angle

3.00mm

No

Yes

1.60mm

Tray

2.54mm

-55°C to +125°C

Through Hole

1.5A

622.0 Mbps

250V AC (RMS)

N/A

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

85001 Series

Mates With

DIN 41612 Receptacle 85040 , 85050
