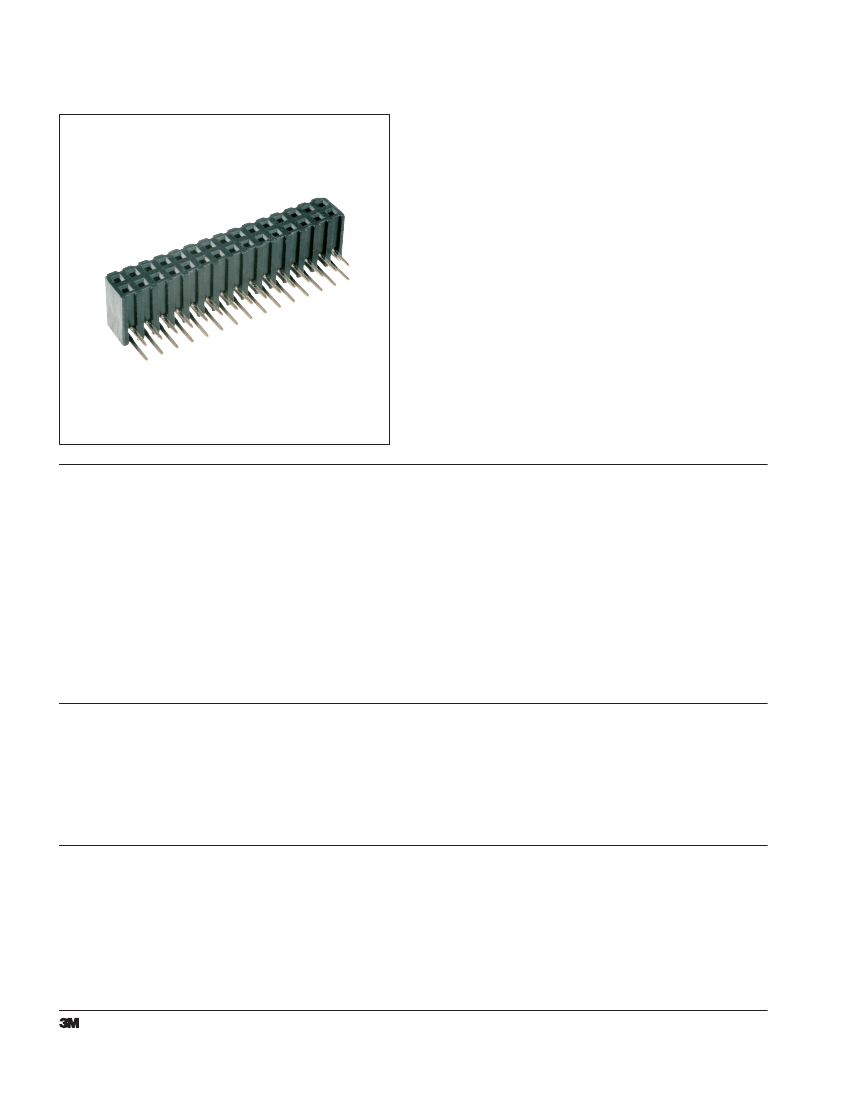

3M
™
Boardmount Socket

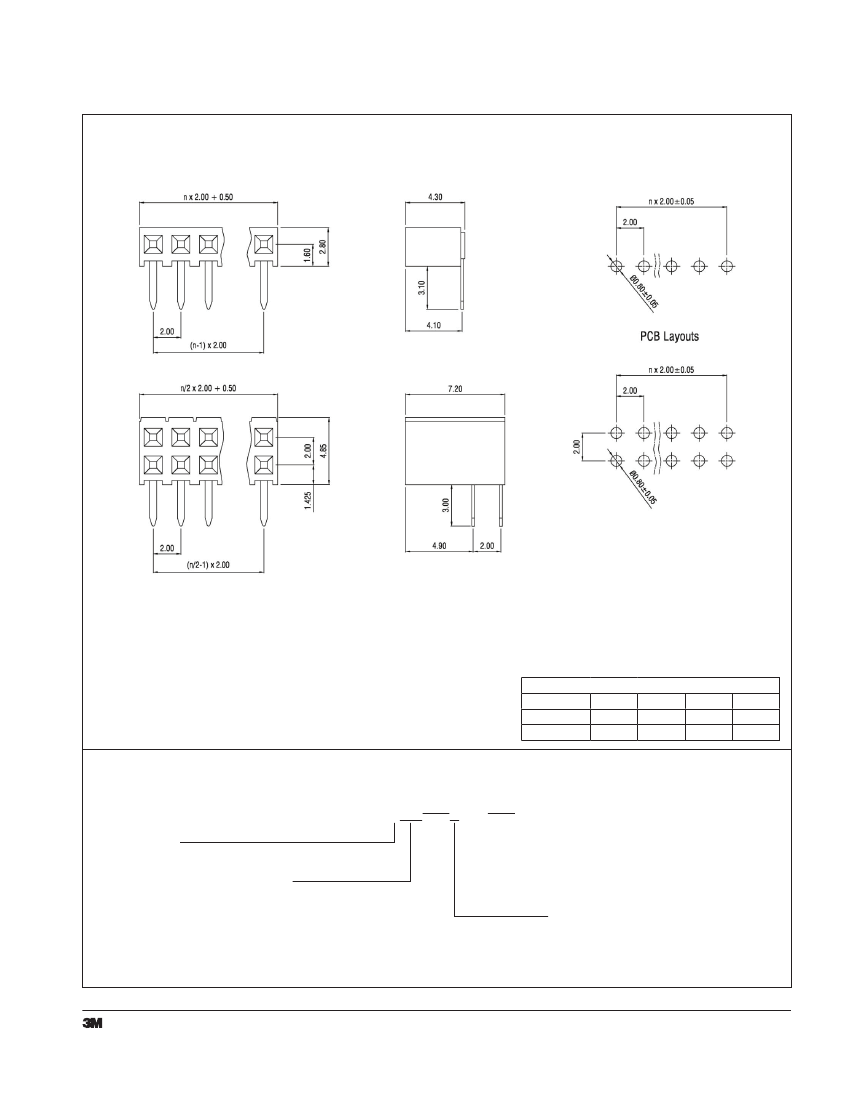

2 mm and 2 mm x 2 mm Right Angle, Solder Tail
950 Series
•
Optimizes use of PC board space
•
High temperature dielectric
•
No lead” wave and reflow solder compatible
“
•
Single- and dual row design, 3–40 pins or
4–80 pins
•
Mates with pin-strip header products
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the RoHS compliance section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 27, 2012
TS-2164-D
Sheet 1 of 2
Physical
Insulation
Material: High Temperature Thermo lastic
p
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 1.25–2.5 µm [50-100 µ’’] Nickel
Wiping Area: Flash Gold
Solder Tail Area: 1–3 µm [40–118 µ’’] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤ 20 mOhm
Environmental
Temperature Range:
-40 °C to +105 °C
Processing Temperature:
ax. 260 °C (Profile per J-STD-020C)
m
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Interconnect Solutions
www.3Mconnectors.com
3M
™
Boardmount Socket
2 mm and 2 mm x 2 mm Right Angle, Solder Tail
950 Series
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
950XXX
Rows:
4 = 2 Row
5 = 1 Row
Contact Quantity:
03-40 Pins / 1 Row
04-80 Pins / 2 Row
Tail Style:
5 = Right Angle,
Thru Hole
5002
AR
(RIA E1 & C1 Apply)
TS-2164-D
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
