Mini-SAS (FS Series)
FS2-SF2-16C1
The Mini-SAS external I/O connector system consists of a die-cast metal cage and a Compact MultiLane
SMT Connector, featuring proven “cut edge” style contacts. Providing four serial send/receive channels
per port, this connector system is designed to satisfy the needs for gigabit serial data transmission
applications with signal speeds across the connector interface of 6 Gbps per channel.
The cage is mounted separately to the body so that the stress imposed by insertion and removal of the
cable plug does not a ect the signal/body solder joints. The connector is available with unique solder
hold-down tabs designed to provide additional mechanical robustness in demanding applications.

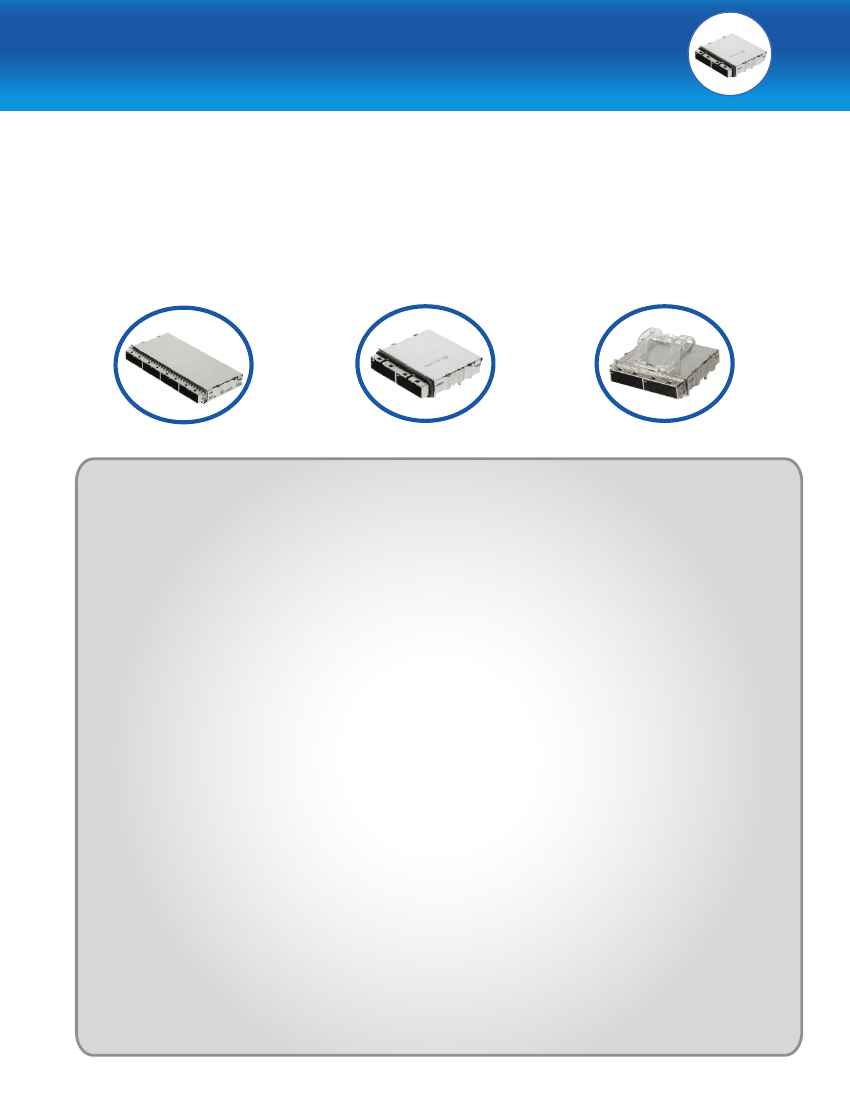

FS1-SF4-14E1
FS2-S02-14F1
FS1-S02-14E2-LP
Speci cation Highlights
The Mini-SAS interconnect system is comprised of a
cage assembly which is used with 26-position, 0.8mm
pitch connectors complying with SFF-8086 and
SFF-8088.
Mechanical Characteristics
•
Co-Planarity Specification: 0.1 mm
•
Connector Insertion Force: 55.5 N max
•
Connector Withdrawal Force: 49.0 N max
•
Durability: 250 Mating Cycles min
•
Reverse Keying for Active Copper Cables per
SAS 2.0
Electrical Characteristics
•
Operating Voltage: 30 V
•
Operating Current: 0.5 A
•
Differential Impedance: 100 Ω +/- 10 Ω
•
DWV: 300 V AC
•
Insulation Resistance: 1000 MΩ min
•
Contact Resistance: 80 mΩ max
•
Near-End Isolation: -40 dB (frequencies up to 3
GHz)
•
Insertion Loss: 1.0 dB max (frequencies up to
1.6 GHz)
•
Rise Time for Impedance Measurement: 50 ps
•
Within Pair Skew: 5 ps
Packaging
•
Tape and Reel Packaging: Connector
•
Tray Packaging: Cage
•
Bulk Packaging: Mounting Screw or Dust Cover
Materials
•
Cage
o
Base Material: Zinc Alloy
o
Plating: Nickel
o
Mounting Screw: AISI 1010 Steel
o
Light Pipe: Optical Grade Polycarbonate
o
Dust Cover: Thermoplastic
•
Connector
o
Contact Base Material: Copper Alloy
o
Contact Plating: Gold on Mating Area, Matte
Tin on Termination
o
Housings: Glass Reinforced, Lead-Free Solder
Reflow Process Compatible Thermoplastic,
UL94V-0 Rated
Temperature Rating
•
Operating Temperature: -55°C to +85°C
•
Storage Temperature: -55°C to +85°C
Con gurations
(Rows x Ports per Row)
•
1x1
•
1x2
•
1x4
Options
•
Dust Cover
•
Light Pipe
•
EMI Shielding
o
Conductive Elastomeric Gasket
o
Soft Shield Foam Gasket
o
Stainless Steel Gasket
•
Cage Inclination from Printed Circuit Board
o
0 degree Angle
o
1 degree Angle (PCI Applications)
•
Keying
18
Ordering Information
FS1-R26-2000
FS2-SF1-12C1
Mini-SAS Connector
FS1
R26
FS1
-
R26
-
X 0 0 X
0
- Standard Connector
1
- Connector with Hold Down Tabs
0
- Standard
SERIES DESIGNATION (RoHS)
R26
- 26 position connector
OPTIONS
X
STYLE
X
2
- 30 µ" Gold in Mating Area; 100 µ" Matte Tin on Tails over Nickel Underplate
3
- 15 µ" Gold in Mating Area; 100 µ" Matte Tin on Tails over Nickel Underplate
PLATING
0
0
0
- Standard
Mini-SAS Cage
FSX
-
S XX
-
1 X XX
-
XX
FSX
SERIES DESIGNATION
FS1
- Standard
FS2
- With SAS 2.0 Guide Keyway
FSA
- With SAS 2.1 Guide Keyway
S
- Shell
Blank
- No Light Pipe
LP
- 2 Barrel Light Pipes (1 Light Pipe per Port)
LIGHT PIPE OPTION
XX
S
XX
01
- 1x, 1 degree
F1
- 1x, 0 degree
02
- 2x, 1 degree
F2
- 2x, 0 degree
F4
- 4x, 0 degree
SIZE
1
X
1
- Nickel (RoHS)
PLATING
0
- No Key
1
- Key #1
4
- Key #4 Universal SAS Port
7
- Key #7
24
- Key #2 and #4 (SAS Out)
46
- Key #4 and #6 (SAS In)
D22
- Left Port Key #2 & #4 / Right Port Key #2 & #4
D66
- Left Port Key #4 & #6 / Right Port Key #4 & #6
D26
- Left Port Key #2 & #4 / Right Port Key #4 & #6
D62
- Left Port Key #4 & #6 / Right Port Key #2 & #4
KEYING
C1
- Conductive Elastomer Gasket, 8 mm Long Mounting
Screw, No Lock Washer
C2
- Conductive Elastomer Gasket, No Mounting Screw
C3
- Conductive Elastomer Gasket, 10 mm Long Mounting
Screw with Lock Washer
E1
- Stainless Steel Gasket, 8 mm Long Mounting Screw,
No Lock Washer
E2
- Stainless Steel Gasket, No Mounting Screw
E3
- Stainless Steel Gasket, 10 mm Long Mounting Screw
with Lock Washer
F1
- Foam Gasket, 8 mm Long Mounting Screw,
No Lock Washer
F2
- Foam Gasket, No Mounting Screw
F3
- Foam Gasket, 10 mm Long Mounting Screw with
Lock Washer
OPTIONS
XX
Telephone: (416)-291-4401
All specifications are subject to change without notice.
Website: www.amphenol-highspeed.com
19
Email: cages@amphenol-highspeed.com
