34900-4125 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34900-4125

34900-4125: DescriptionHeaders u0026 Wire Housings RECEPTACLE 4P DUAL ROW; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

34900-4125 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34900-4125	-	-	View	Buy Now

34900-4125 Overview

Headers u0026 Wire Housings RECEPTACLE 4P DUAL ROW

34900-4125 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Is Samacsys	N
body width	0.677 inch
subject depth	1.22 inch
body length	0.984 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE
empty shell	NO
Filter function	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Shell material	GLASS FILLED NYLON/SYNDIOTACTIC POLYSTYRENE
Termination type	CRIMP
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

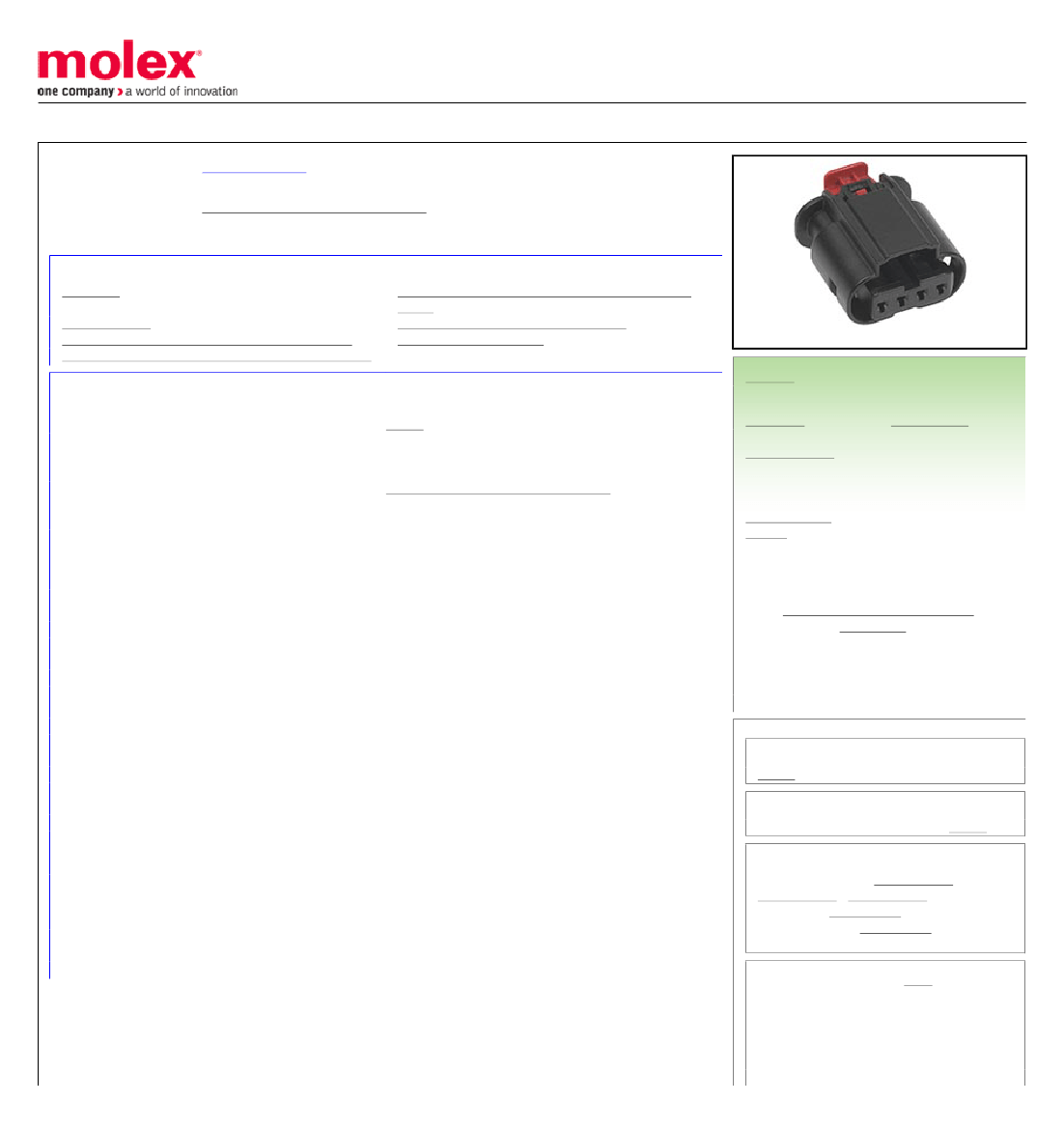

0349004125

Active

MXP120™ Sealed Connector System

MXP120 Sealed Receptacle, 4 Circuit, Black Housing with Long Shroud (T3-V2-S3 /

T4-V4-S3 with Backshell, T3-V2-S2 / T4-V4-S2 without Backshell), Key F, Black Insert

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34900-0001-001 (PDF)

Application Specification AS-34900-0001-001 (PDF)

General

Product Family

Series

Application

Application Tooling Part Link

Comments

Overview

Polarization

Product Literature Order No

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

Application Specification AS-34900-0001-CH-001

(PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Compliant

Crimp Housings

34900

Body Electronics, Power Train, Sealed, Wire-to-Wire

63824-6300

See sales drawing for terminal information.

MXP120™ Sealed Connector System

987650-7994

MXP120 Sealed

889056197892

Black

Receptacle

Yes

SPS/Nylon

4.805/g

Bag

4.00mm

Yes

-40°C to +125°C

13.0A

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Search Parts in this Series

34900 Series

Mates With

MXP120 Male Blade Connector 34899

Use With

MXP120 Backshell 160091-4020 ,

160091-4120 , 160091-4220 <br>MXP120

Cavity Plug 34996-1501 <br>MXP120

Cavity Plug Seal 34996-1902 <br>1.2 LL

SWS from Tyco and Kostal

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

AS-34900-0001-001, AS-34900-0001-CH-001

PS-34900-0001-001

SD-34900-2001-001, SD-34900-6001
