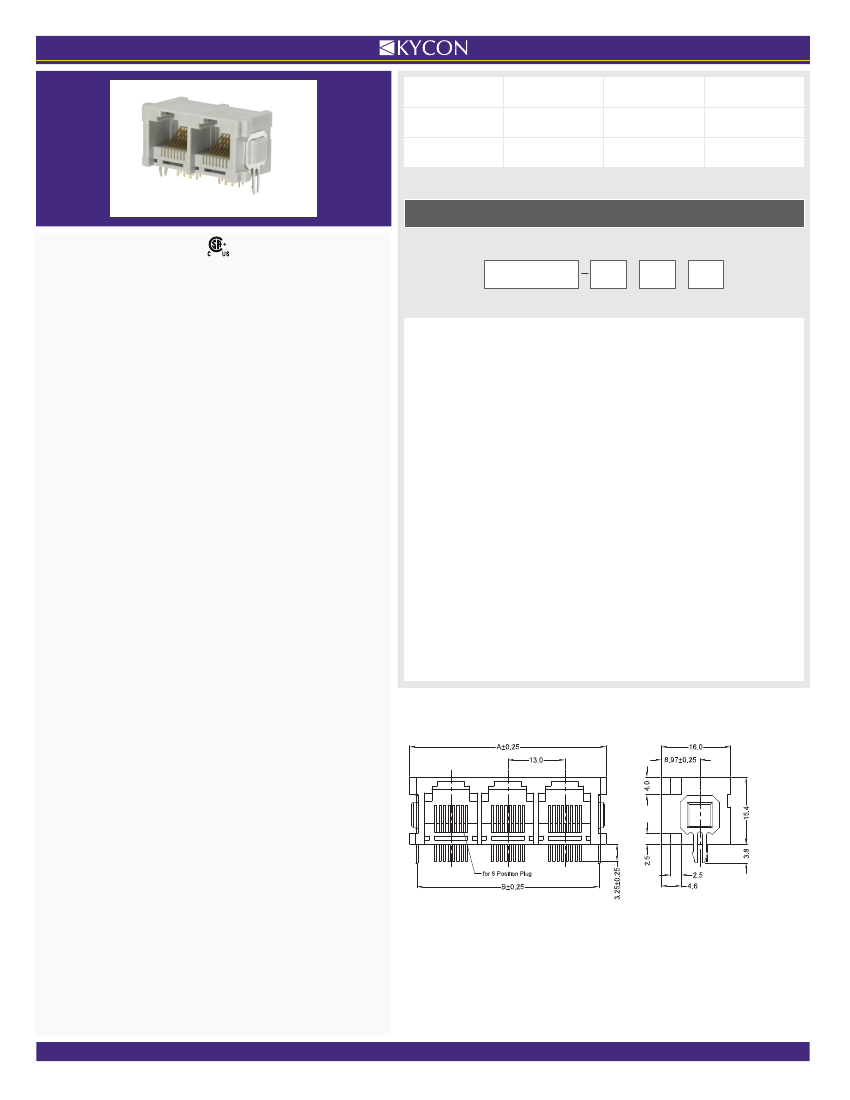

MODULAR JACKS AND PLUGS: GAX Series
Right Angle Ganged Jack
Product Features
Available in 6 and 8 Position Housings
Right Angle Version
Ribbed Pin Guides
Metal Locking Brackets
CSA/NRTL Certified File No. LR78160
Series
Series
GAX
- Right Angle PCB Mount
Number of Ports
2
- 2 Port
3
- 3 Port
4
- 4 Port
5
- 5 Port (Available Only With 6 Positions)
6
- 6 Port (Available Only With 6 Positions)
7
- 7 Port (Available Only With 6 Positions)
8
- 8 Port (Available Only With 6 Positions)
Number of Positions / Contacts
62
- 6 Positions / 2 Contacts
64
- 6 Positions / 4 Contacts
66
- 6 Positions / 6 Contacts
88
- 8 Positions / 8 Contacts
Plating Option
Blank
- Gold Flash
50
- 50µ" Gold Plating
Performance Specifications
Materials and Finish
Housing Material
Thermoplastic, UL 94V-0 Rated, Gray Color
Contact Material
Phosphor Bronze
Electrical Characteristics
Insulation Resistance
500 Megohms Min.
Dielectric Withstanding Voltage
1000V AC RMS for 1 Minute
Contact Resistance
20 milliohms Max.
Current Rating
1.5A
Voltage Rating
125V DC
Contact Kycon for Other Options
GAX Series
Dimensions in mm
