3-5176837-0 datasheet, PDF - EEWORLD Datasheet

3-5176837-0: Description14 AMPMODU 2MM, H, AU, LF; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-5176837-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-5176837-0	-	-	View	Buy Now

14 AMPMODU 2MM, H, AU, LF

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 5 days
Other features	ROHS AND ELV COMPLIANT
body width	0.165 inch
subject depth	0.148 inch
body length	0.551 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.9468 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

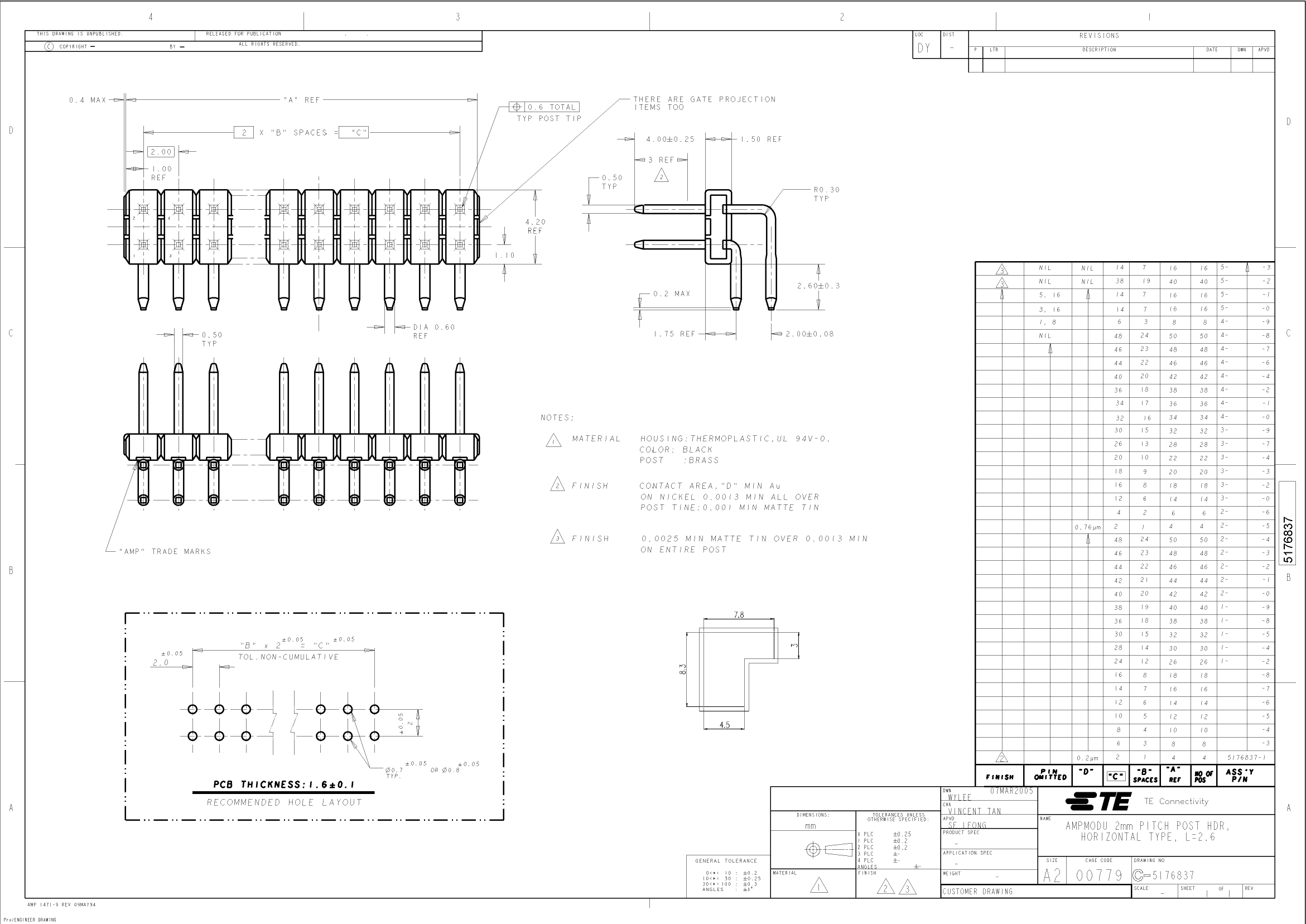

PKG CHANGE FROM TRAY TO TUBE

02JAN2017

4. PACKAGING

TUBE 0.5mm THK, LENGTH=635mm
