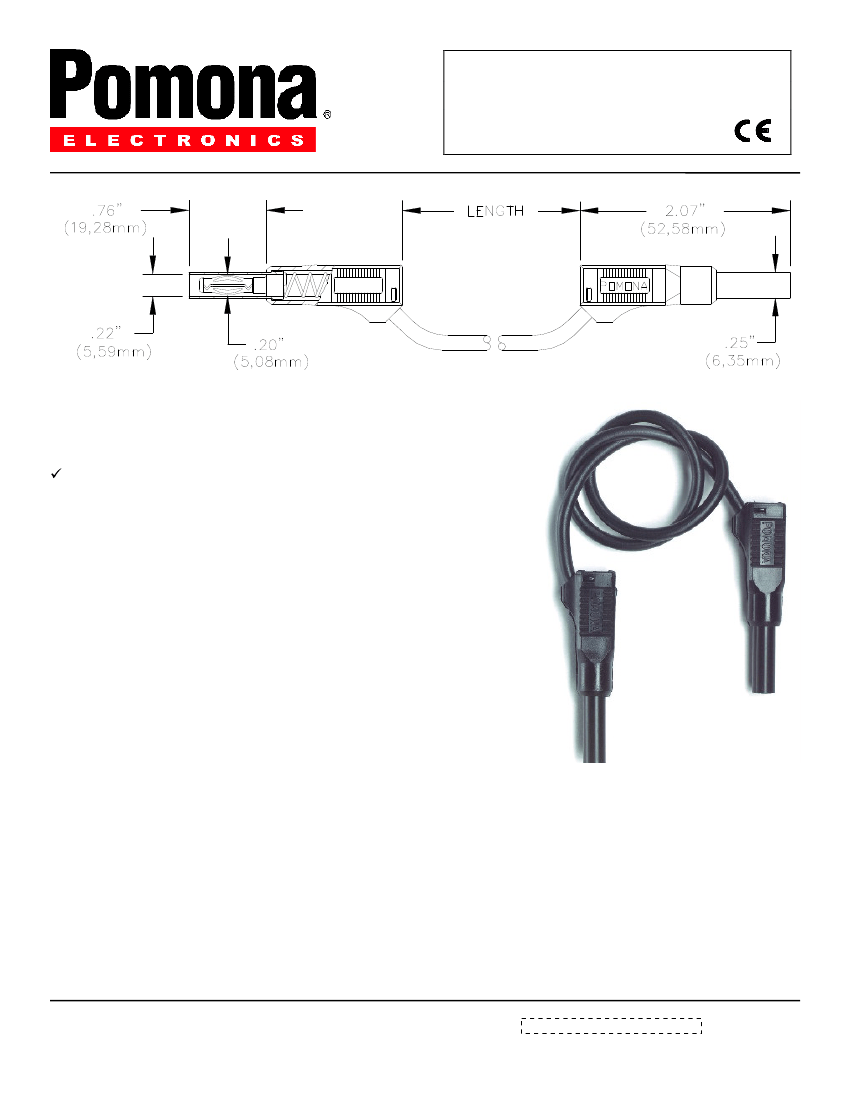

Model 5403
Retractable Sheath Stacking
Banana Plug Patch Cord
FEATURES:
This retractable sheath banana plug has a stacking feature allowing the
insertion of standard or other retractable plugs
MATERIALS:
Retractable Sheath Banana Plug:
Spring – Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Plug Body – Brass per QQ-B-626, Alloy 360, ½ hard
Compression Spring – Stainless Steel, Alloy 302
Spring and Plug Body Finish:
Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Plug Body Insulation:
Polypropylene molded to plug body and wire. Color matches color of
wire.
Wire and Insulation:
18 AWG, stranding 65 x 36 T.C., .144” (3.66mm) O.D, PVC.
RATINGS:
Operating Voltage: Hands free usage in controlled voltage environments: 1200 Vrms maximum.
For CE compliance:
not
intended for hand-held use at voltages above 33 Vrms/70 Vdc.
Operating Temperature: +131°F (+55°C) Max.
Current: 7 Amperes.
ORDERING INFORMATION:
Model 5403-Length-Color
Length
=: 12” (30,48cm), 24” (60,96cm), 36” (91,44cm), 48” (121,92cm), 60” (152,4cm)
Color
=: 0 (Black), 2 (Red)
For custom lengths and colors, contact Technical Support at custom@pomonatest.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1094384
Page 1 of 1
