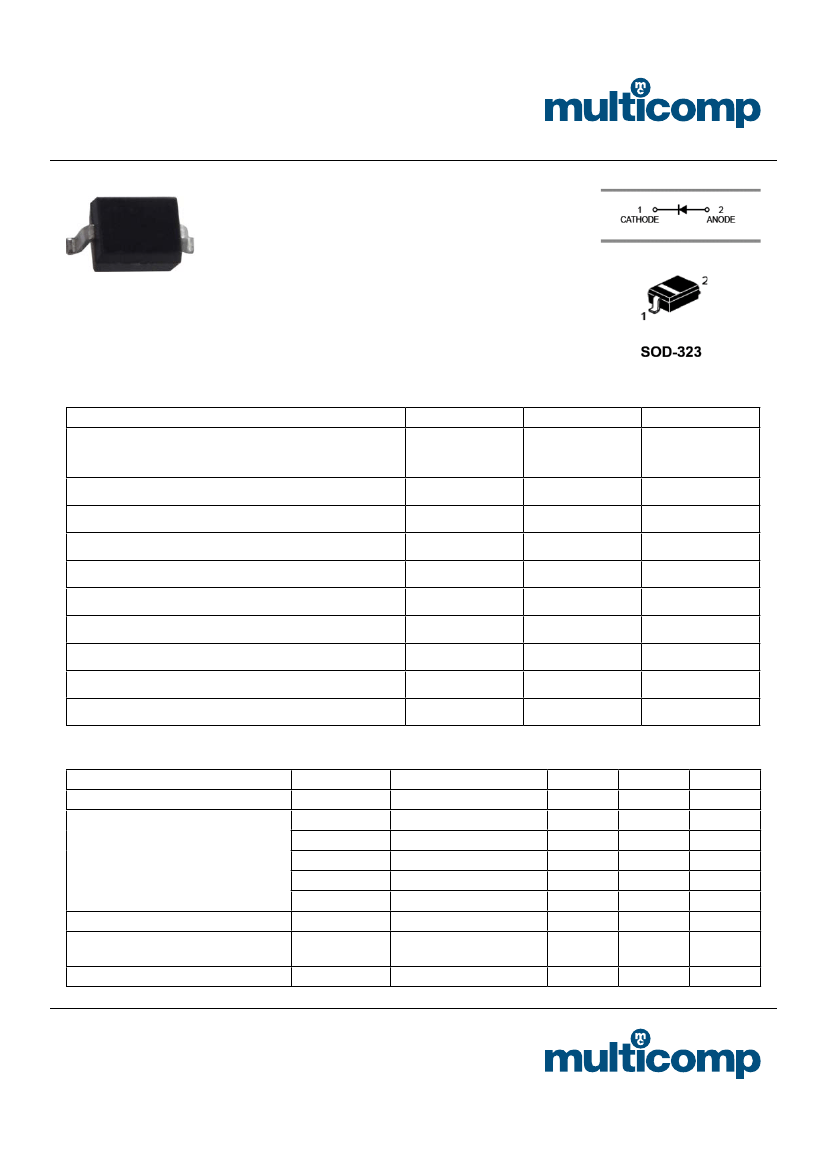

PN Junction Guard Ring for Transient and ESD Protection
Applications:
Schottky barrier detector and switching diode
Max. Rating @ T
a
= 25°C unless otherwise specified
Parameter
Peak repetitive peak reverse voltage
Working peak reverse voltage
DC reverse Voltage
RMS reverse voltage
Average rectified output current
Forward continuous current
Repetitive peak forward current
Forward surge current
Power dissipation
Thermal resistance, junction to ambient air
Junction temperature
Storage temperature range
@t<1.0s
Symbol
V
rrm
V
rms
V
r
V
r
(
rms
)
I
o
I
f
I
frm
I
fsm
P
d
R
θ
ja
Tj
T
stg
Limits
30
21
100
200
300
600
200
500
125
-65 to +150
Unit
V
V
mA
mA
mA
mA
mW
°C/W
°C
°C
Electrical Characteristics @ T
a
= 25°C unless otherwise specified
Parameter
Reverse breakdown voltage
Symbol
V(
br
)
r
V
f1
V
f2
Forward voltage
V
f3
V
f4
V
f5
Reverse leakage current
Reverse recovery time
Junction capacitance
I
r
trr
C
j
Conditions
I
r
= 100μA
I
f
= 0.1mA
I
f
= 1mA
I
f
= 10mA
I
f
= 30mA
I
f
= 100mA
V
r
= 25V
I
f
= 10mA, I
r
= 10mA
to 1mA R
l
= 100Ω
V
r
= 1V, f = 1MHz
Min.
30
-
-
-
-
-
-
-
-
Max.
-
240
320
400
500
1,000
2
5
10
Unit
V
mV
mV
mV
mV
mV
μA
ns
pF
www.element14.com
www.farnell.com
www.newark.com
Page <1>
26/02/13
V1.0
Schottky Barrier Diode

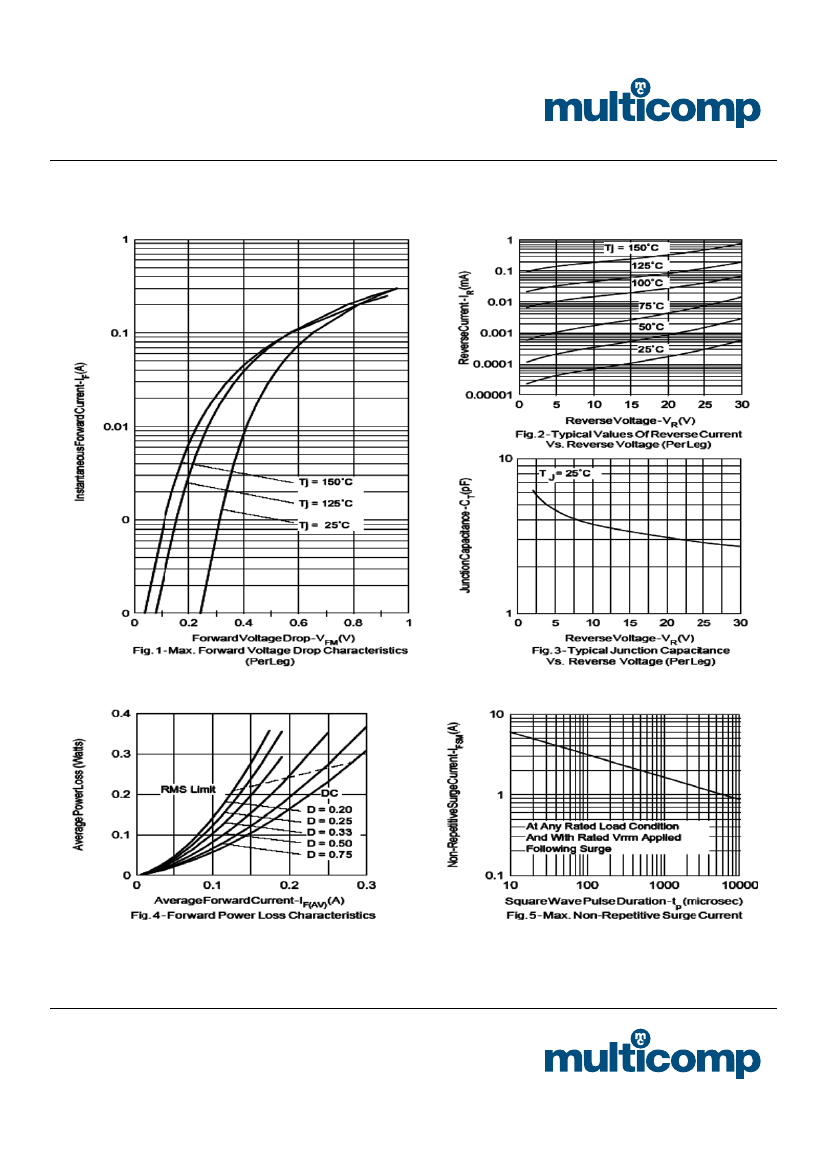

Typical Characteristics @ T
a
= 25°C unless otherwise specified
www.element14.com
www.farnell.com
www.newark.com
Page <2>
26/02/13
V1.0
Schottky Barrier Diode

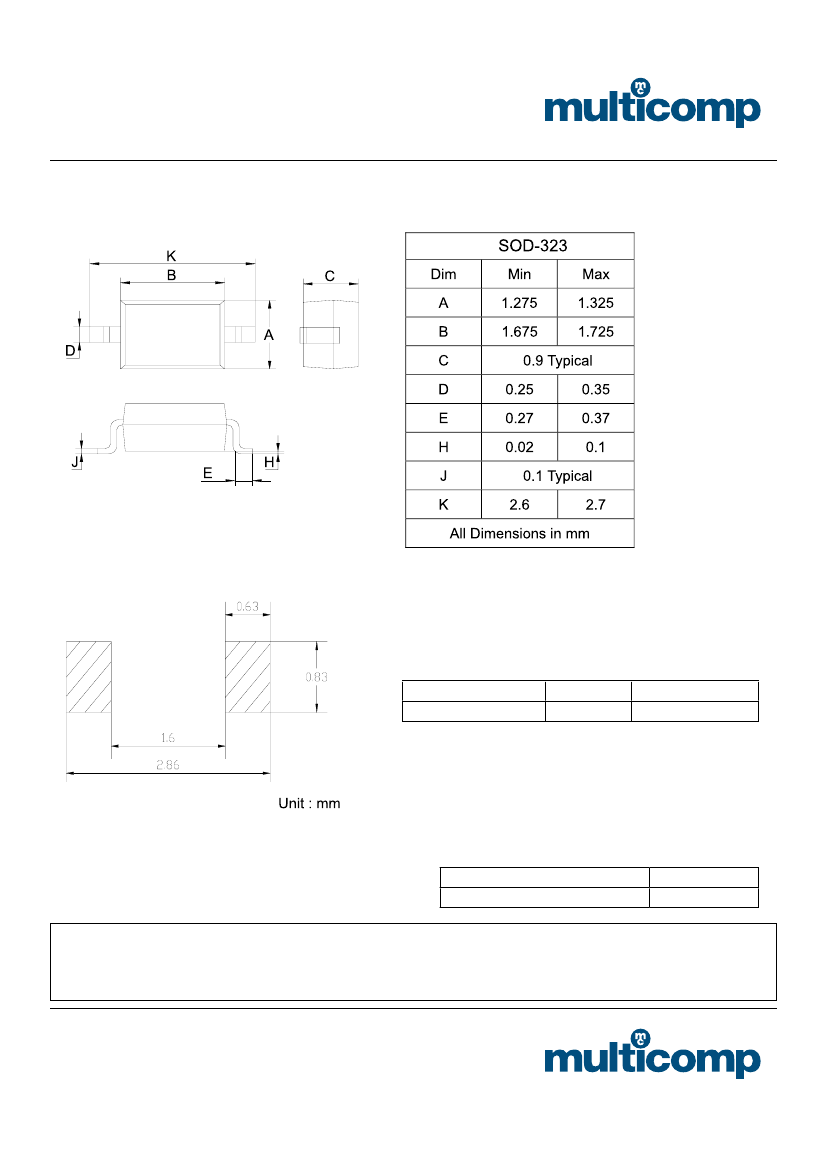

Plastic surface mounted package
Soldering Footprint
Package Information
Device
BAT54WS-7-F
Package
SOD-323
Shipping
3,000 / Tape & Reel
Part Number Table
Description
Schottky Barrier Diode
Part Number
BAT54WS-7-F
