223531 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 223531

223531: DescriptionHard Metric Connectors 3P 2MM RA MALE 12.6A PWR MOD 1 CONT LVL; CategoryThe connector The connector; File Size50KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

223531 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	223531	-	-	View	Buy Now

223531 Overview

Hard Metric Connectors 3P 2MM RA MALE 12.6A PWR MOD 1 CONT LVL

223531 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL (26)
Contact completed and terminated	MATTE TIN (79) OVER NICKEL (118)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	223531
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	3

Preview

Download Datasheet

View All

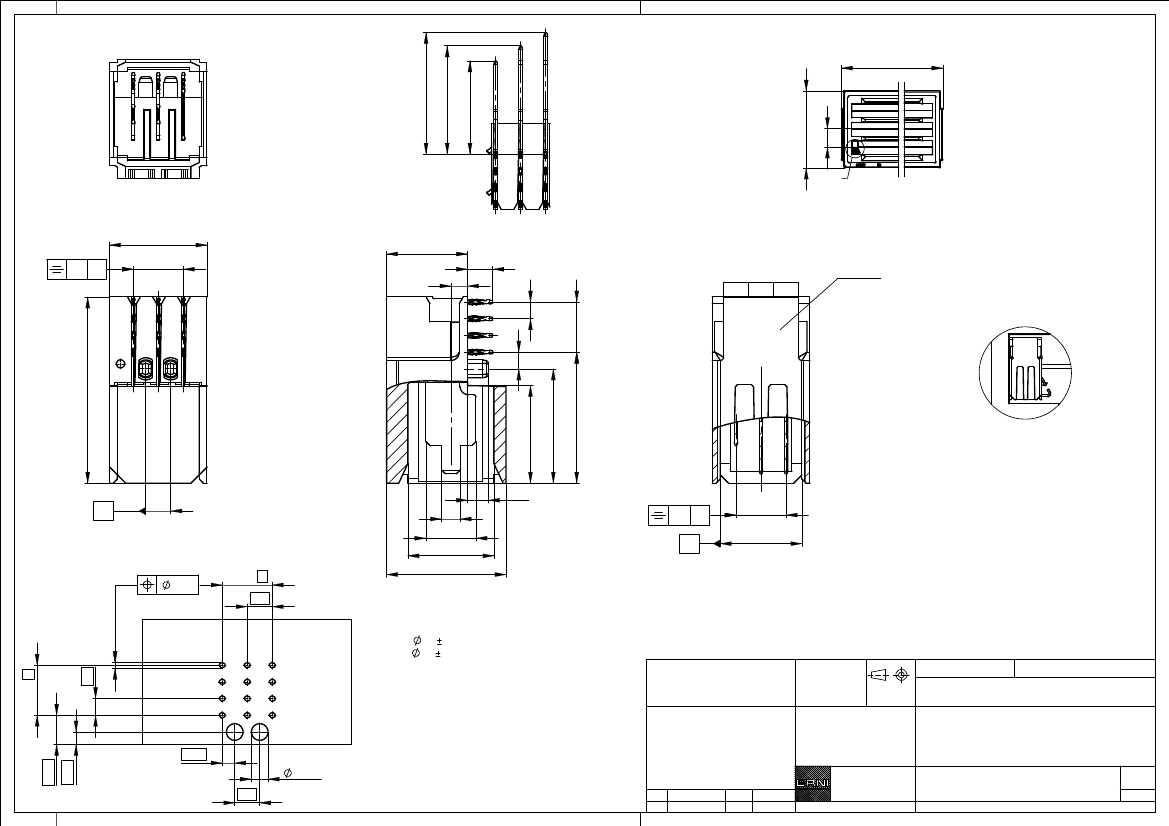

Kontaktübersicht:

L = lang /

long

M = mittel /

middle

S = kurz /

short

contacts overview

14,6

11,2

M 1:5

max. 325

verpackt in Tray

VPE: 72 St.

max. 138

tray packaging

packaging unit 72 pcs.

11,7

0,1

9,7

±0,1

-0,25

Bestückungsplan /

contact layout

3x2=6

XXXXXXX

ERNI

Date code

DETAIL A

MAßSTAB 1 : 1

ABC

22,3

11,7

13,7

15,7

2,5

2,25

0,2

9,8

Gehäuse /

housing

: PBTP grau 30% GF /

PBTP grey 30% GF

Kontakte /

contacts

: Phosphor Bronze /

phosphor bronce

Oberflächenbeschichtung /

plating

Kontaktbereich /

mating area

: 0,65µm PdNi, 0,1µm Au

Anschlussbereich /

termination

: 1,5-3µm Ni, 0,5-2µm Sn matt

Anforderungsstufe 2 /

class 2

Lochbild für Leiterplatte /

10,3

14,3

Board hole pattern

0,05

alle Löcher /

2x3= 6

all holes

3x2= 6

0,6

0,05

Diameter

Durchmesser des metallisierten Loches

of finished plated-through hole

Proprietary notice pursuant to ISO 16016 to be observed.

Metal plating of plated-through hole see

drawing 114406 / 164062 No.1

1,5

3,5

1,5

+0,05

Schichtaufbau im metallisierten Loch siehe

Zeichnung 114406 / 164062 Nr.1

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

22.11.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

ERmet Messerleiste PM 14,3

ERmet Male PM 14,3

www.ERNI.com

Class

223531

ERMPM
