5499923-6 datasheet, PDF - EEWORLD Datasheet

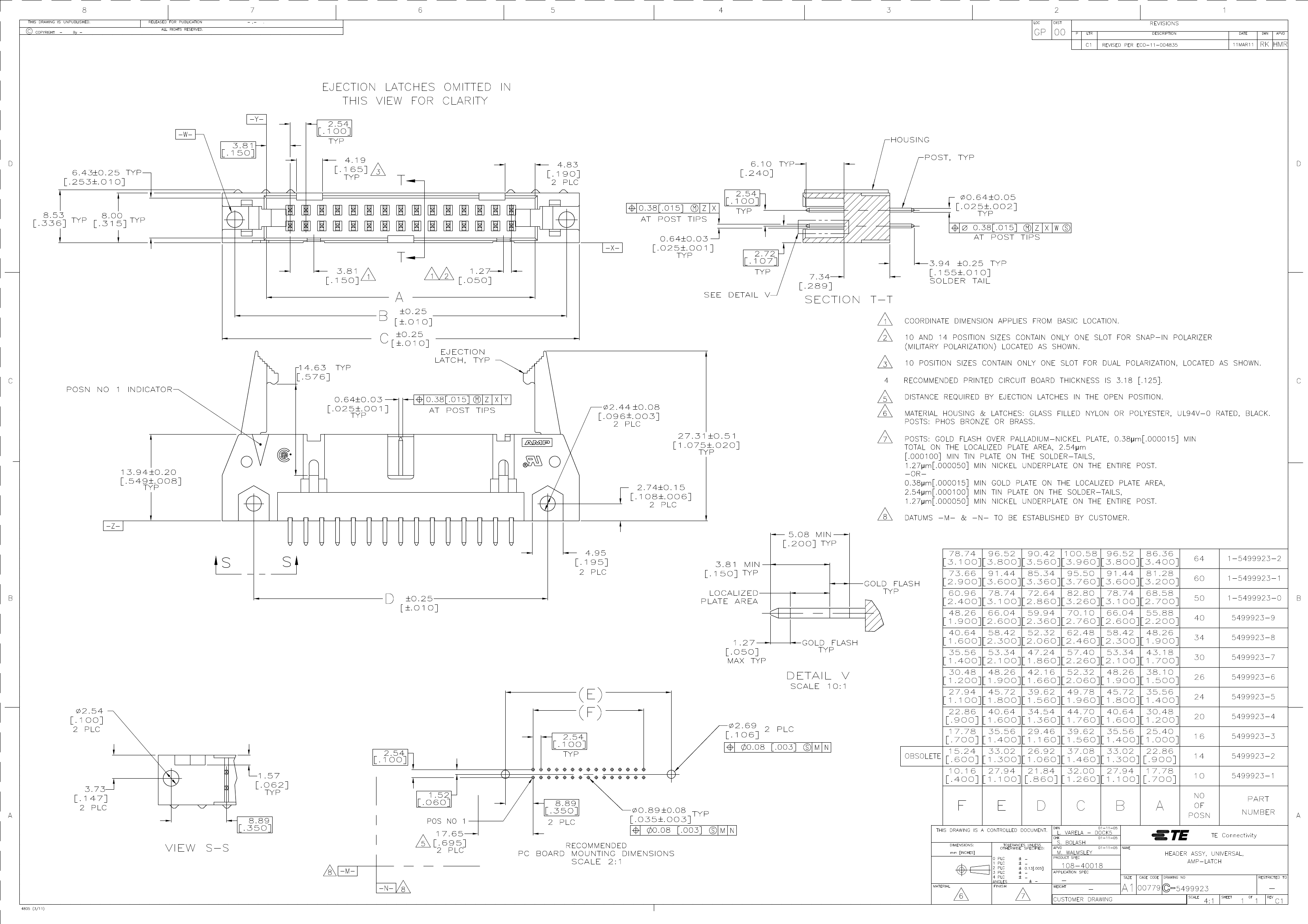

5499923-6: DescriptionA/L UNIV HDR 26P VERT LG LAT; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5499923-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5499923-6	-	-	View	Buy Now

A/L UNIV HDR 26P VERT LG LAT

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Other features	MILITARY, CENTER AND DUAL POLARIZED
Board mount options	HOLE .099-.111
body width	0.336 inch
subject depth	0.549 inch
body length	2.06 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5499923
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	DUAL POLARIZED
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.155 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1
