85003-0206

Description
DIN 41612 Connectors REC 3X32P VT TYPE C
CategoryThe connector    The connector
File Size45KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

85003-0206 Online Shopping

Suppliers Part Number Price MOQ In stock
85003-0206 - - View Buy Now

85003-0206 Overview

DIN 41612 Connectors REC 3X32P VT TYPE C

85003-0206 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Other featuresSTANDARDS: DIN 41612; IEC 603-2
body width0.437 inch
subject depth0.461 inch
body length3.701 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationGOLD (24) OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability400 Cycles
Filter functionNO
IEC complianceYES
maximum insertion force.9452 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYESTER
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness24u inch
polarization keyENDS
Rated current (signal)1.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts96
UL Flammability Code94V-0
This document was generated on 09/05/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
85003-0206
Active
DIN 41612
2.54mm Pitch DIN 41612 Header, Style C, Right Angle, Through Hole, 0.60µm
Selective Gold (Au), 96 Circuits, Lead-Free
Documents:

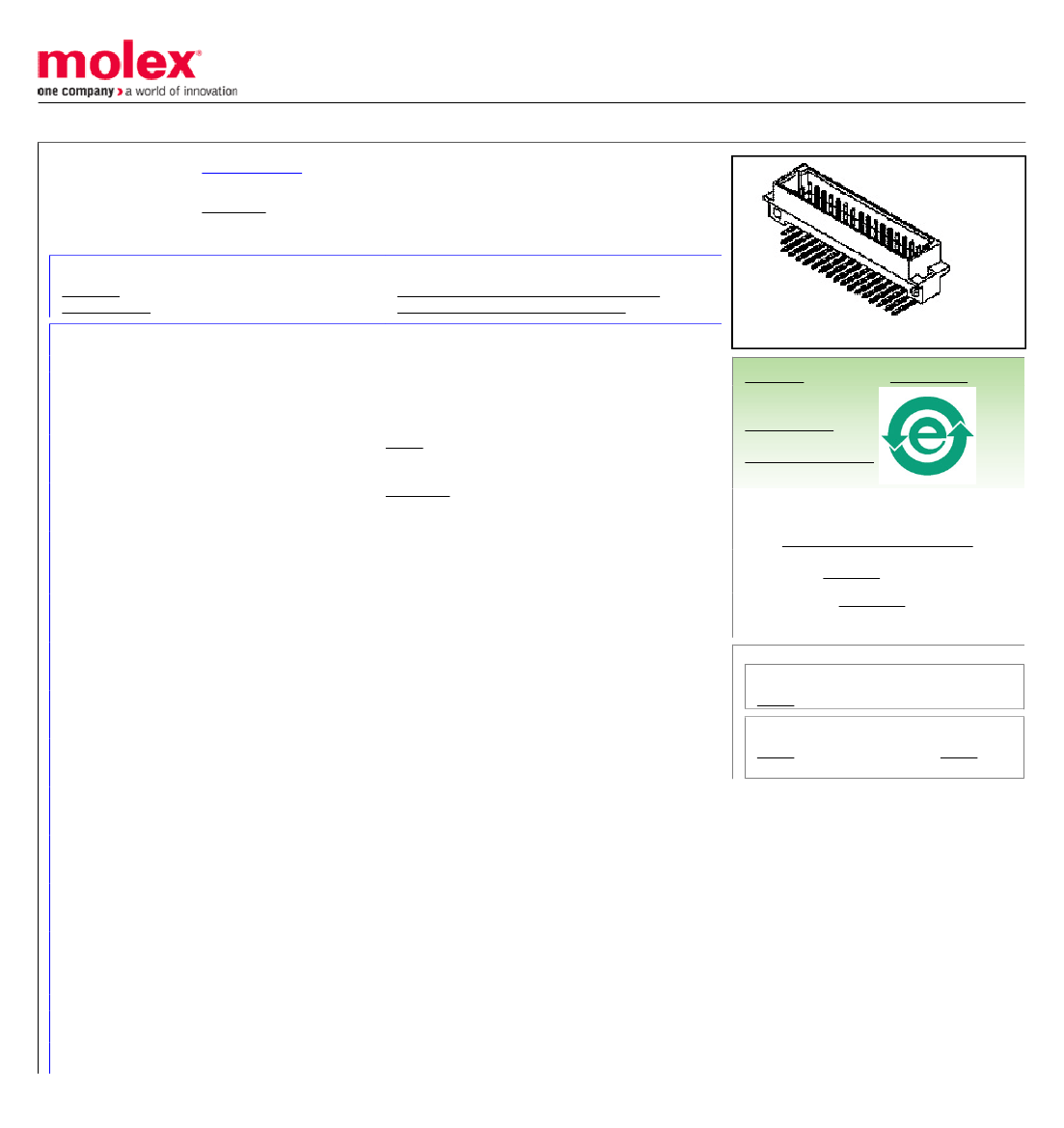

3D Model
Drawing (PDF)
Product Specification PS-85003-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
UPC
Backplane Connectors
85003
Daughtercard
PCB Header
DIN 41612
IEC 603-2/DIN 41612
C
800753240292
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Plating Mating
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
96
96
400
No
94V-0
No
Yes
Gold
13.588/g
16
Open Pin Field
3
Right Angle
3.00mm
No
Yes
1.60mm
Tray
2.54mm
2.54mm
Yes
No
-55°C to +125°C
Through Hole
Search Parts in this Series
85003Series
Mates With
85042 DIN 41612 Receptacle. 85052 DIN
41612 Header
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
1A
622.0 Mbps
250V AC (RMS)
Material Info
