390-037

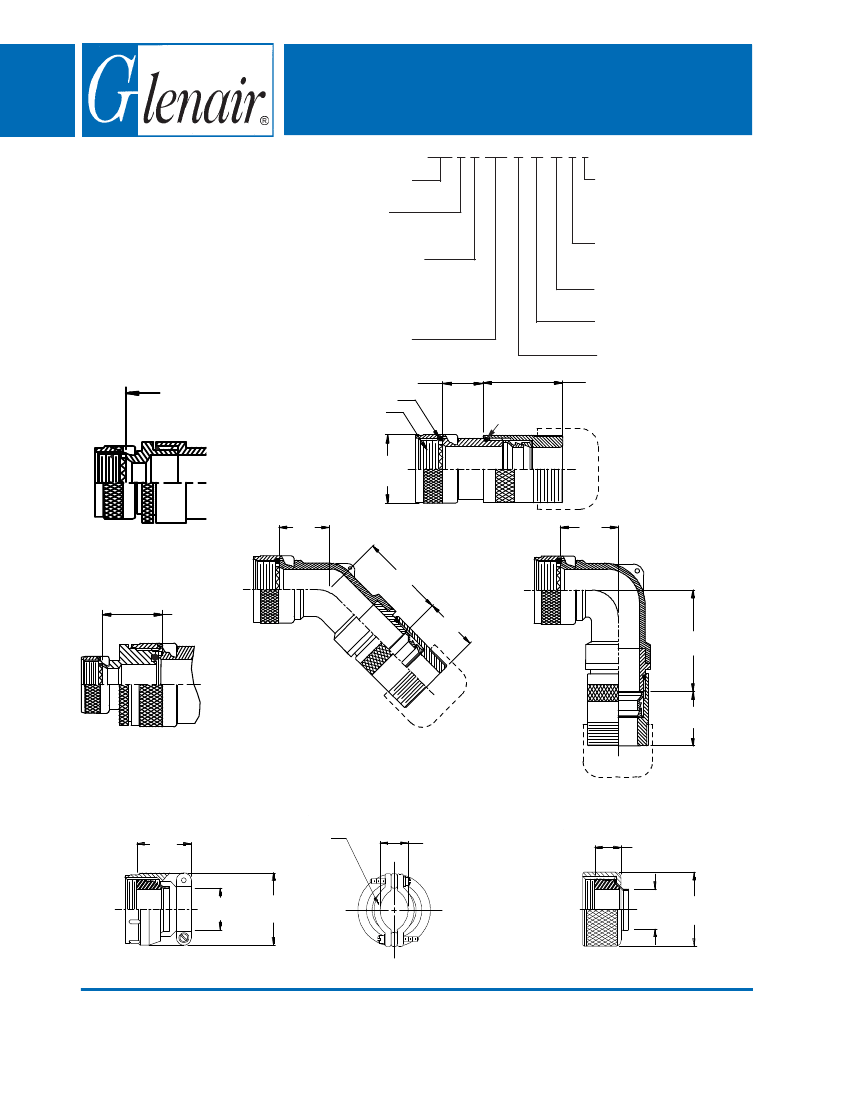

Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type G - Rotatable Coupling - Low Profile
39
CONNECTOR
DESIGNATORS
390 F S 037 M 16 10 E 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Finish (Table II)
.500 (12.7) Max
O-Ring
A Thread
(Table I)
C Typ.
(Table I)
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(C, E)
Cable Entry (Tables X, XI)
Shell Size (Table I)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE G INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 3.0 Inch
(See Note 4)
O-Ring
E
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
(Table III)
G
(Table III)
F (Table III)
1.680 (42.7) Ref.
H (Table III)
1.680 (42.7) Ref.
STYLE 2
(45° & 90°
See Note 1)
STYLE C
Medium Duty
(Table X)
Clamping
Bars
STYLE E
Medium Duty
(Table XI)
X (See
Note 6)
Y
T
Cable
Range
W
Cable
Range
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 78
with Strain Relief
Type G - Rotatable Coupling - Low Profile
TABLE III
Shell Size
Conn. Desig.
A-F-L-S H
08 09
10 11
12 13
14 15
16 17
18 19
20 21
22 23
24 25
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.780 (45.2)
1.840 (46.7)
1.900 (48.3)
2.220 (56.4)
2.330 (59.2)
2.520 (64.0)
2.520 (64.0)
2.670 (67.8)
2.670 (67.8)
2.720 (69.1)
2.820 (71.6)
2.910 (73.9)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.780 (45.2)
1.910 (48.5)
1.930 (49.0)
2.230 (56.6)
2.320 (58.9)
2.490 (63.2)
2.490 (63.2)
2.600 (66.0)
2.600 (66.0)
2.770 (70.4)
3.020 (76.7)
3.020 (76.7)
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
T
Max
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.281 (32.5)
1.281 (32.5)
1.406 (35.7)
1.656 (42.1)
1.906 (48.4)
1.906 (48.4)
2.000 (50.8)
W
Max
.812 (20.6)
.937 (23.8)
1.062 (27.0)
1.188 (30.2)
1.312 (33.3)
1.562 (39.7)
1.750 (44.5)
2.250 (57.2)
2.375 (60.3)
2.625 (66.7)
2.812 (71.4)
TABLE X
X
Ref
.135 (3.4)
.203 (5.2)
.285 (7.2)
.350 (8.9)
.390 (9.9)
.460 (11.7)
.510 (13.0)
.695 (17.7)
.715 (18.2)
.915 (23.2)
1.070 (27.2)
Cable Range
Min
Max
.156 (4.0)
.219 (5.6)
.188 (4.8)
.312 (7.9)
.281 (7.1)
.438 (11.1)
.312 (7.9)
.531 (13.5)
.375 (9.5)
.625 (15.9)
.500 (12.7)
.750 (19.1)
.625 (15.9)
.938 (23.8)
.938 (23.8)
1.250 (31.8)
1.000 (25.4)
1.375 (34.9)
1.250 (31.8)
1.625 (41.3)
1.500 (38.1)
1.875 (47.6)
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions E,
F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter
lengths on straight backshells.
5. Interface O-Ring not supplied
with connector designator A.
6. Saddles are bottomed on
Clamp Ears.
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
Y
Max
.739 (18.8)
.739 (18.8)
.739 (18.8)
.739 (18.8)
.791 (20.1)
.880 (22.4)
.901 (22.9)
1.031 (26.2)
1.250 (31.8)
1.250 (31.8)
1.312 (33.3)
TABLE XI
Cable Range
Z
Max
Min
Max
.812 (20.6)
.156 (4.0)
.219 (5.6)
.937 (23.8)
.188 (4.8)
.312 (7.9)
1.062 (27.0)
.281 (7.1)
.438 (11.1)
1.188 (30.2)
.312 (7.9)
.531 (13.5)
1.312 (33.3)
.375 (9.5)
.625 (15.9)
1.562 (39.7)
.500 (12.7)
.750 (19.1)
1.750 (44.5)
.625 (15.9)
.938 (23.8)
2.250 (57.2)
.938 (23.8)
1.250 (31.8)
2.375 (60.3)
1.000 (25.4)
1.375 (34.9)
2.625 (66.7)
1.250 (31.8)
1.625 (41.3)
2.812 (71.4)
1.500 (38.1)
1.875 (47.6)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 79
